WiDMX 5pin Wireless Transceiver System

LC512X-F/M5 2.4GHz wireless 5-pin DMX receiver and transmitter system.

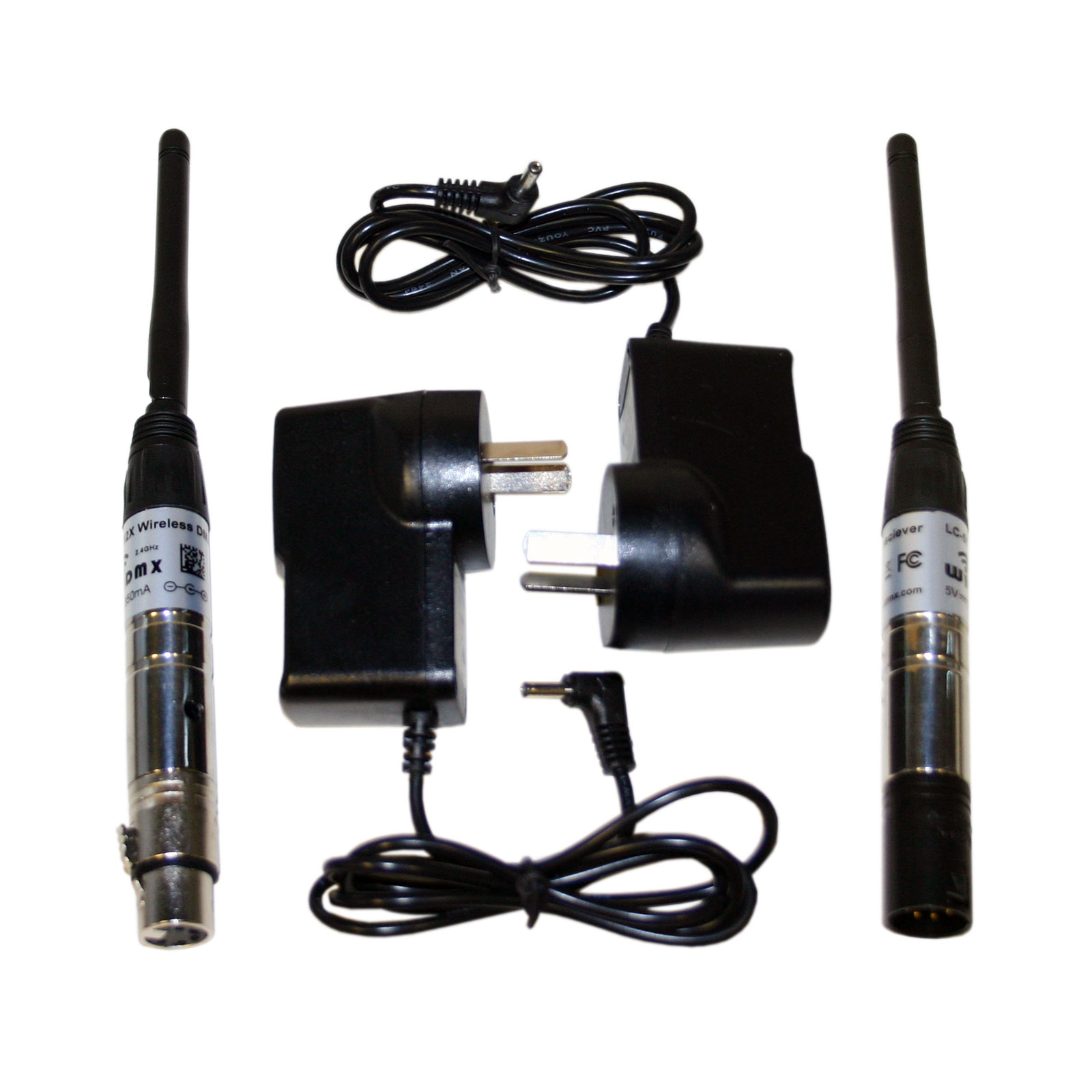

System Includes :

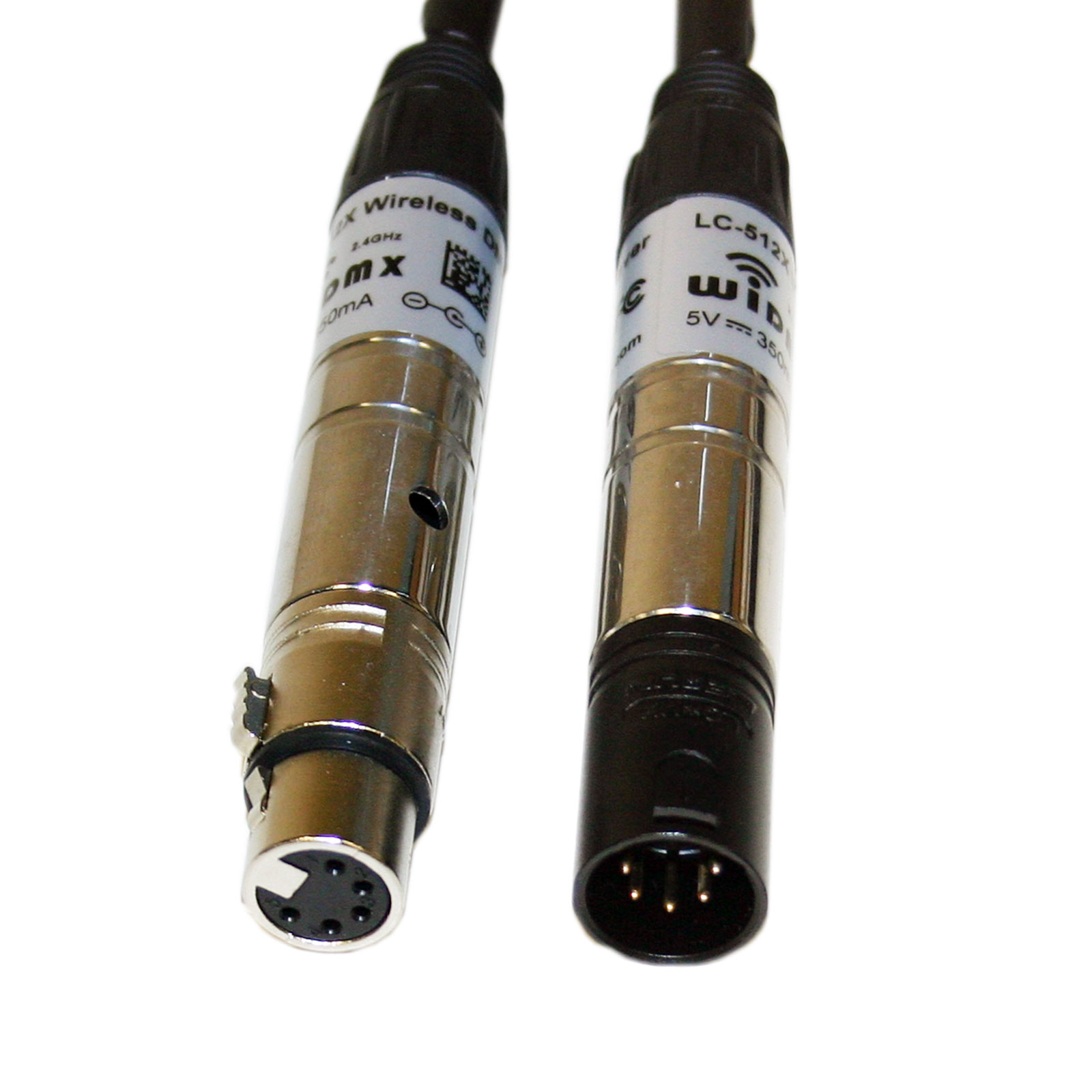

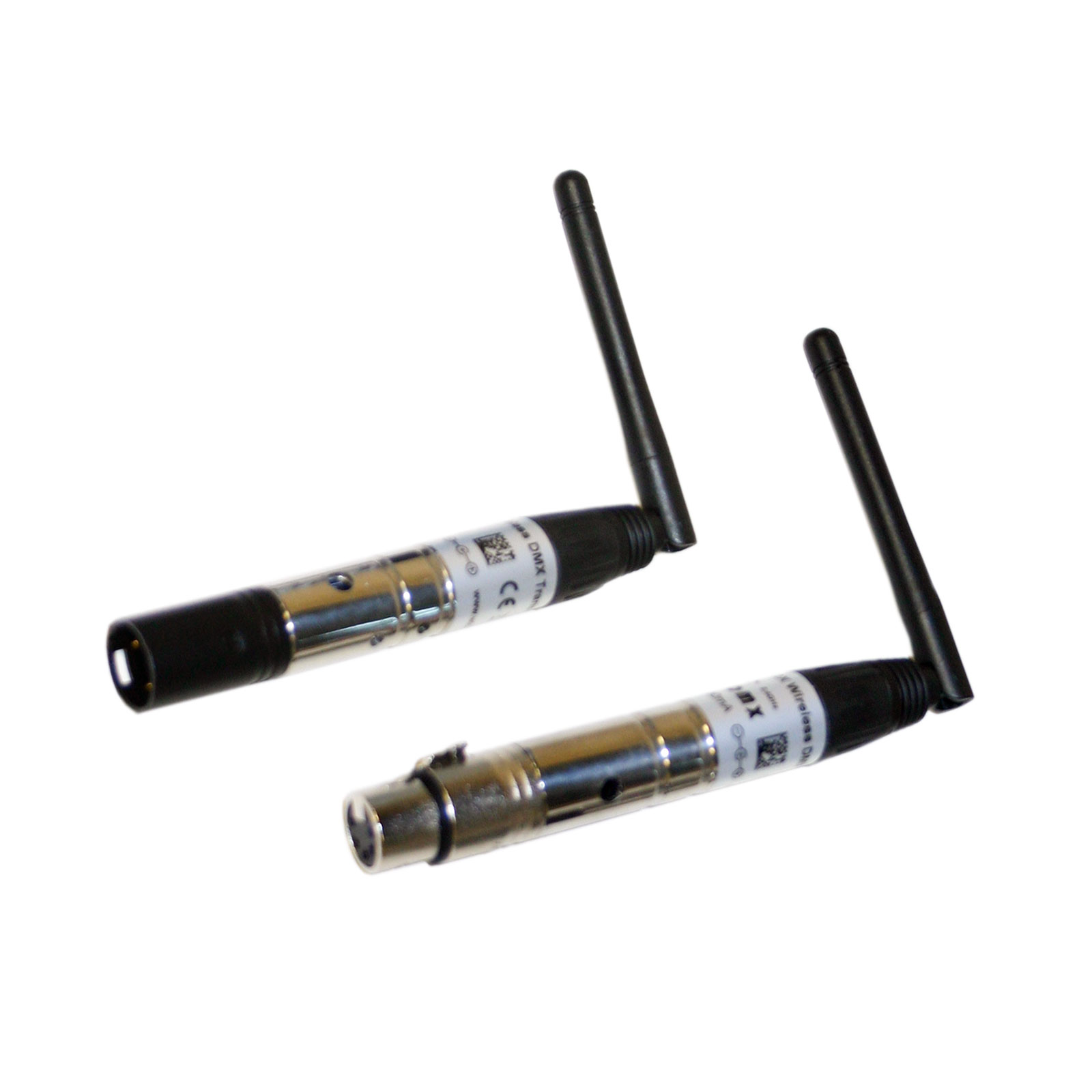

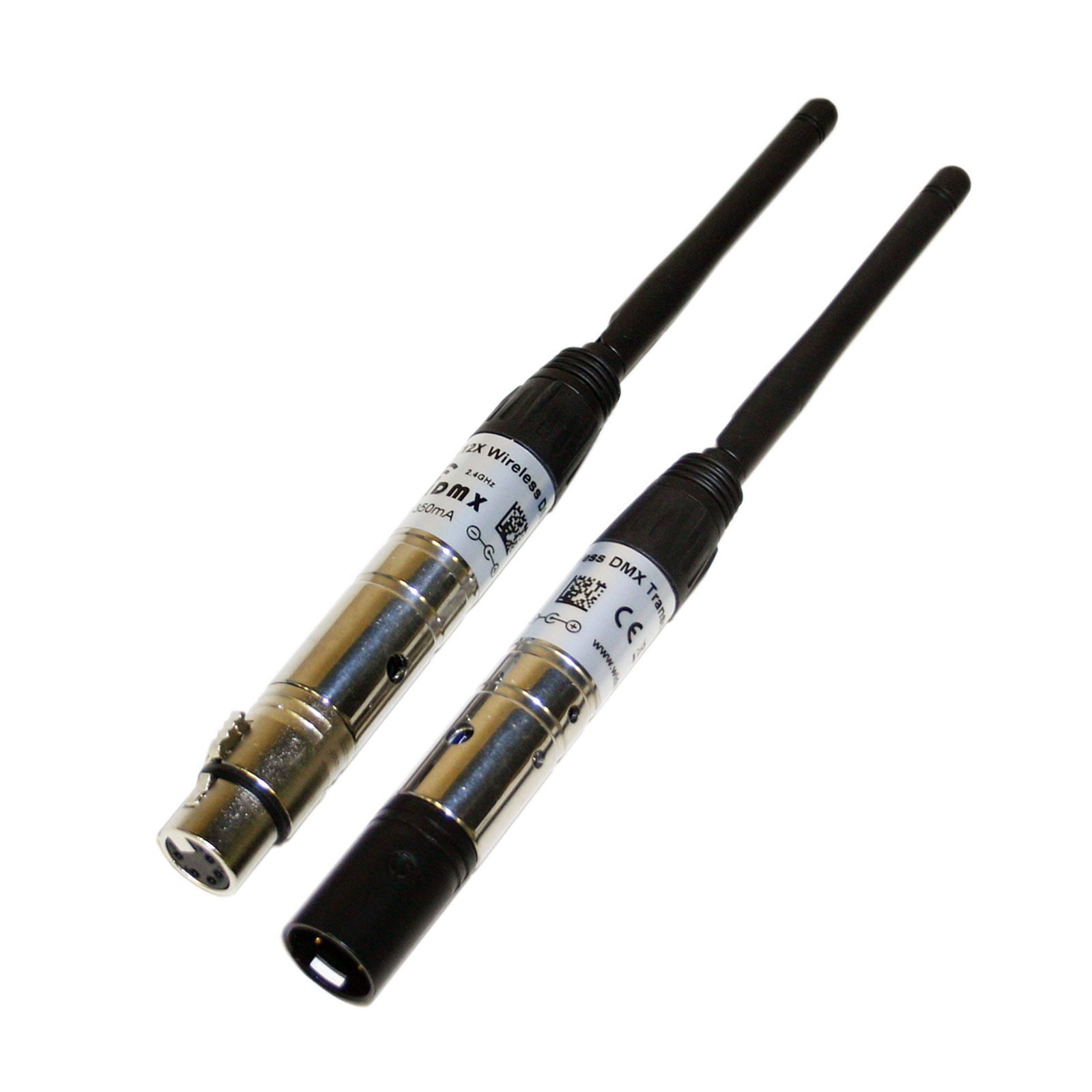

• 1 x Transceiver with Male 5-pin XLR
• 1 x Transceiver with Female 5-pin XLR

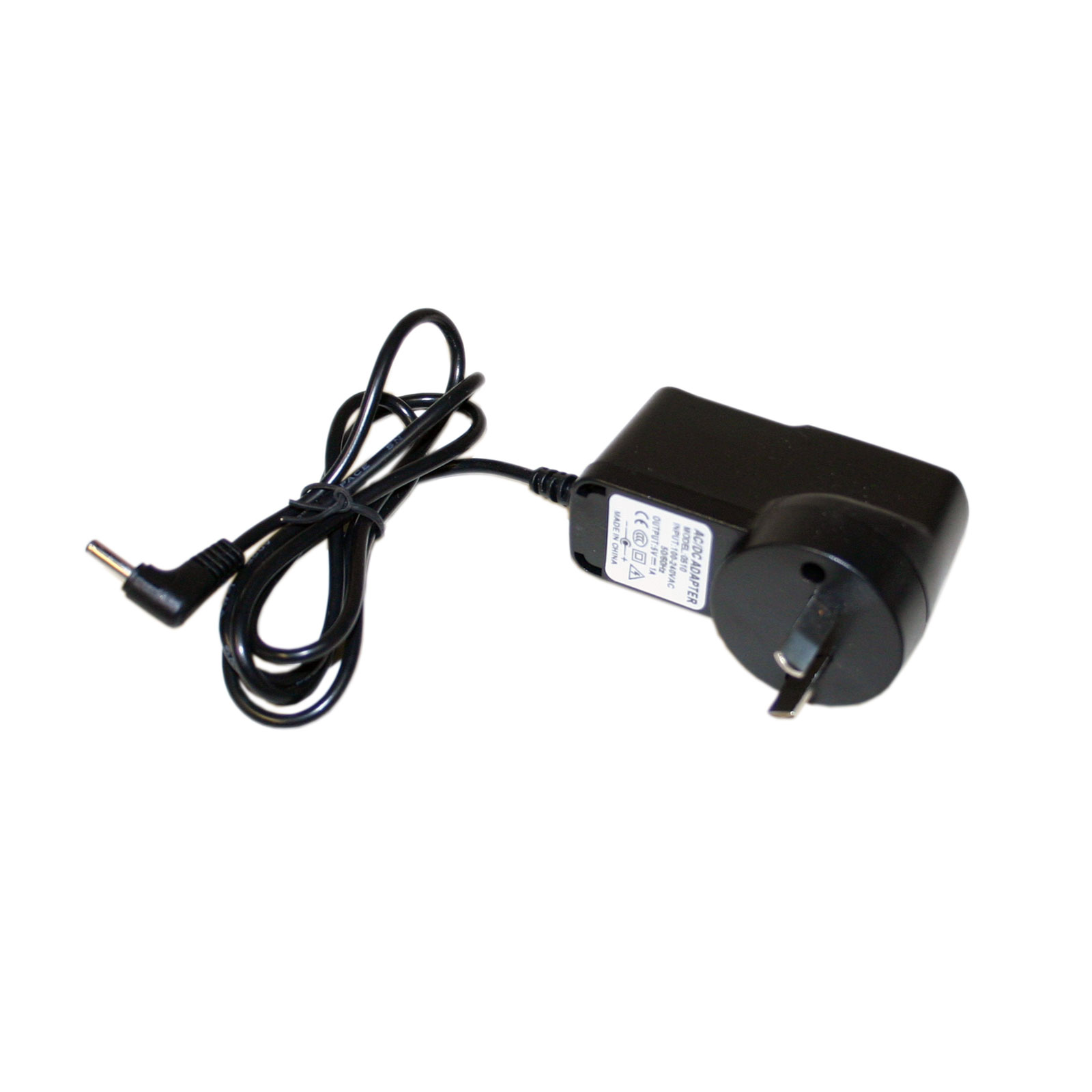

• 2 x 5V DC power supplies with cable length of approx. 900mm

Features :

• Operates on 2.4GHz global open ISM with licence-exempt use
• Efficient GFSK modulation and 126 channel frequency hopping to automatically avoid interference
• Fully replicates DMX512 console signals including the break time, MAB time, number of channels and refresh rate
• Three colour LED displays working status and parameters
• Dimensions : 212 x 18 x 18mm (inc. Antenna)
• Weight : 90g (each tranceiver without power supply)
