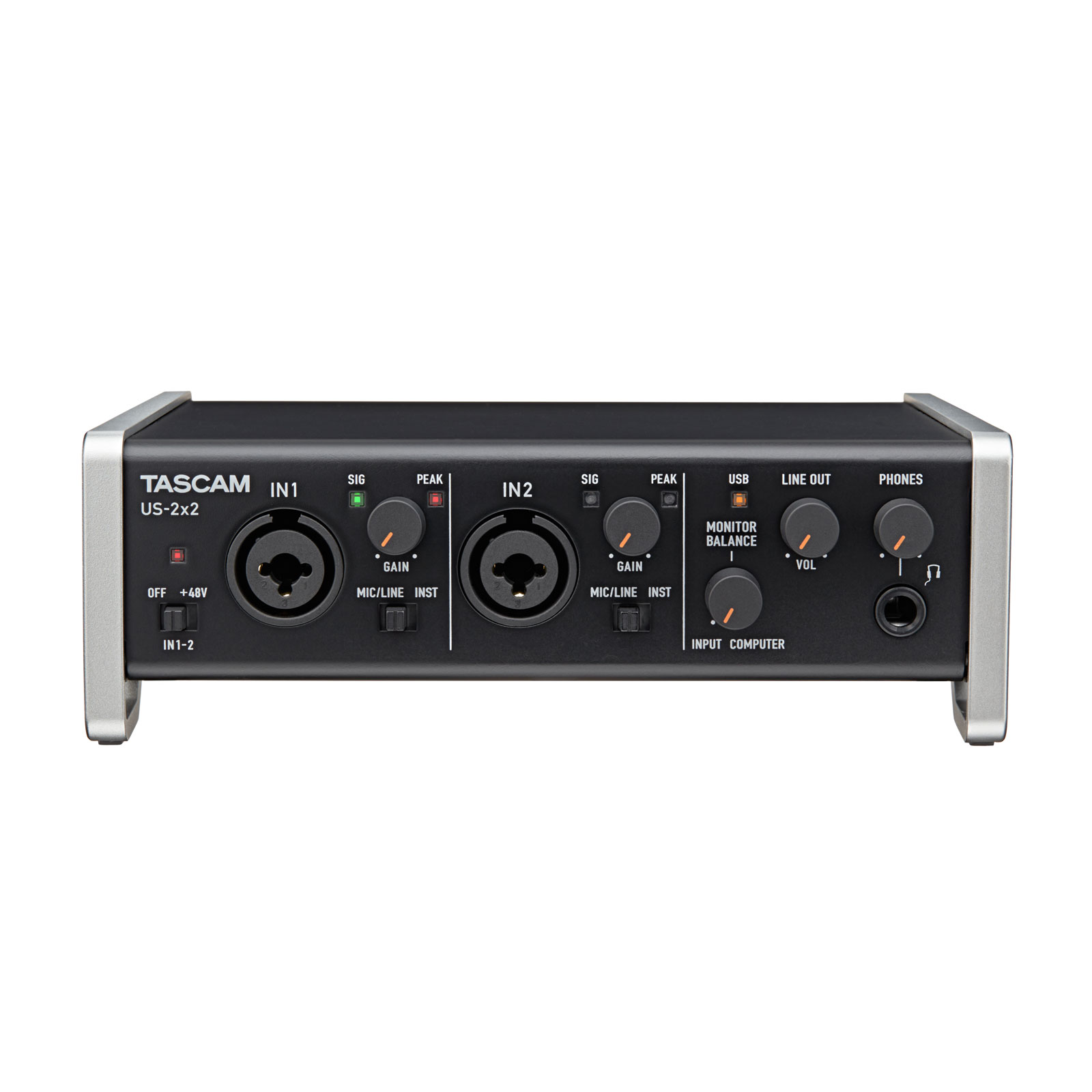

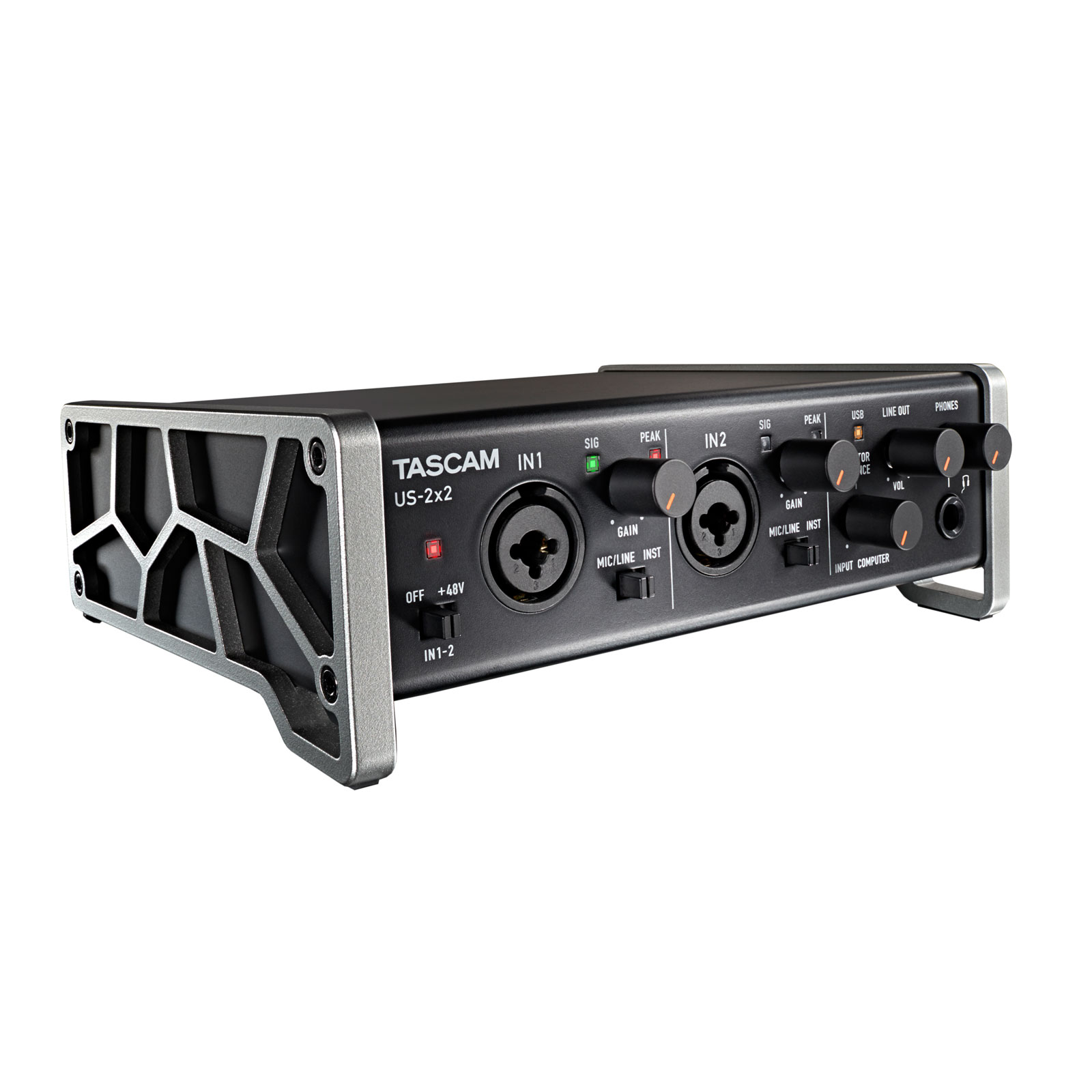

Tascam US-2x2 USB Audio Interface

TASCAM’s US-2x2 combines great audio quality and ergonomic design for a powerful 2-in/2-out USB 2 Audio interface.

Two of TASCAM’s Ultra-HDDA mic/line preamps provide up to 57dB of gain with nearly inaudible noise and distortion specs.

The US-2x2 includes class-compliant drivers for plug-and-play operation on Mac OSX and iOS devices like the iPad (optional external power supply required), and a simple driver adds ASIO compatibility for Windows.

MIDI in and out are also included for connecting synths, drum machines, and controllers.

Features :

• Two Ultra-HDDA mic preamplifiers
• Two XLR/TRS (MIC/LINE) inputs with full +48V phantom power
• Two TRS analog balanced outputs
• 18mW/ch headphone output
• USB bus-powered for mobile recording (Optional AC adaptor required for use with iOS devices)

Specifications :

• Sampling frequency : 44.1k/48k/88.2k/96kHz
• Quantization bit rate : 16/24bit
• Computer system requirements :
  • Windows OS :
    • Windows 7(32-bit SP1, 64-bit SP1), Windows 8.0(32-bit, 64-bit), Windows 8.1(32-bit, 64-bit)
    • Compatible computers : Windows-compatible computer with a USB 2.0 port
    • CPU type/speed : Dual core/2 GHz or faster (x86)
    • Memory : 2GB or more
    • Driver : ASIO2.0, WDM(MME)
  • Macintosh OS :
    • OS X Mountain Lion(10.8), OS X Mavericks(10.9)
    • Compatible computers : Apple Macintosh computer with a USB 2.0 port
    • CPU type/speed : Dual core/2 GHz or faster
    • Memory : 2GB or more
    • Driver : Core Audio, Core MIDI
  • iOS OS :
    • iOS 7
