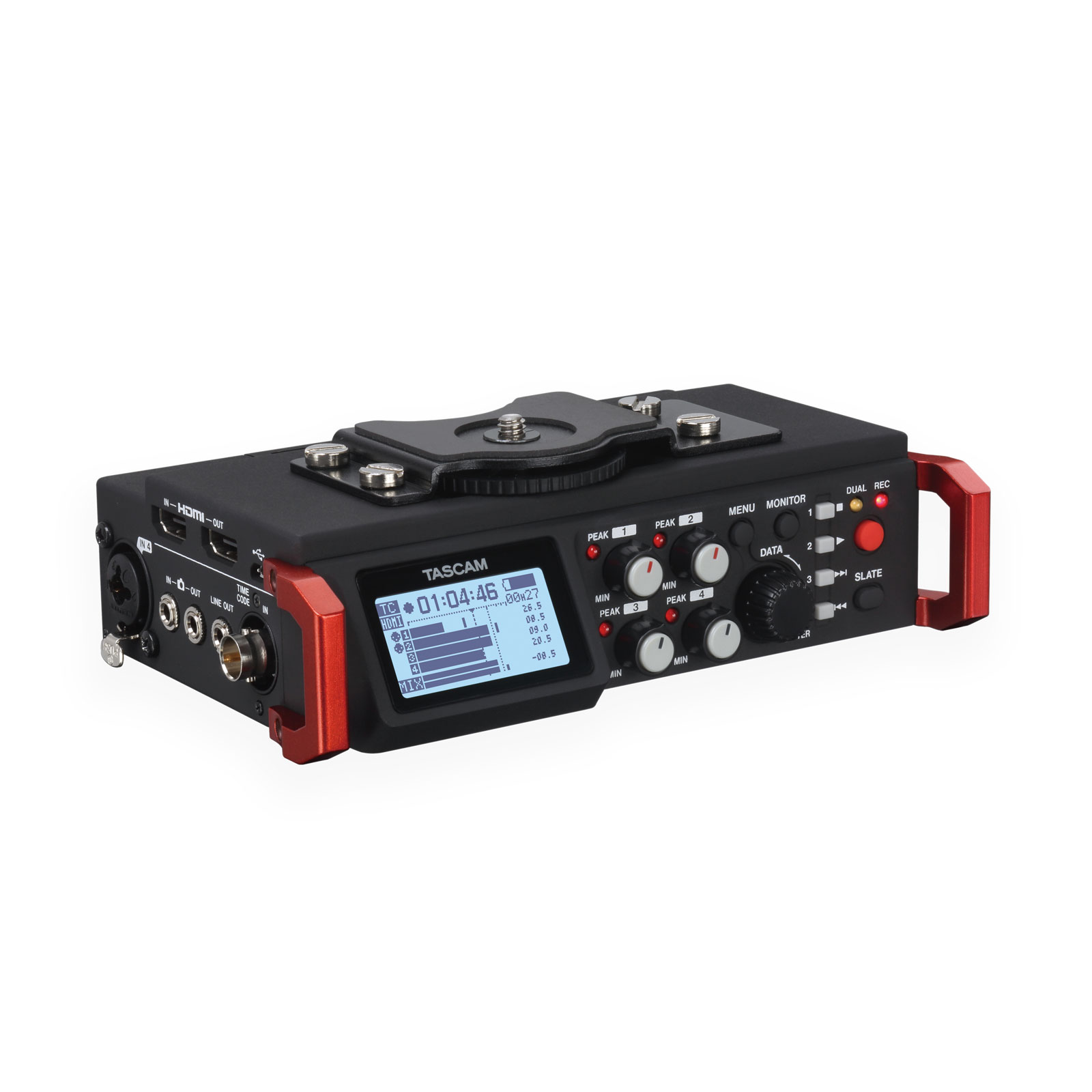

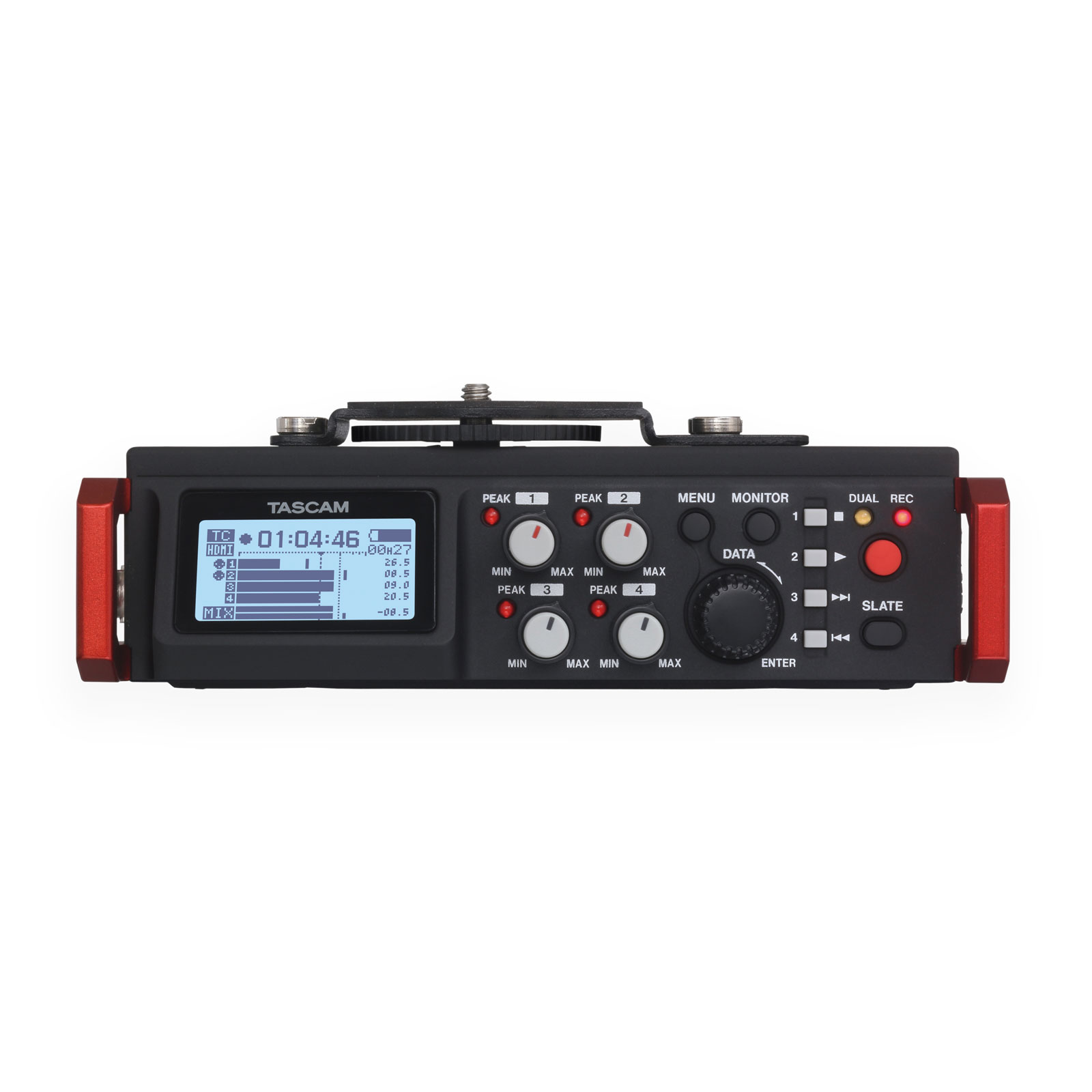

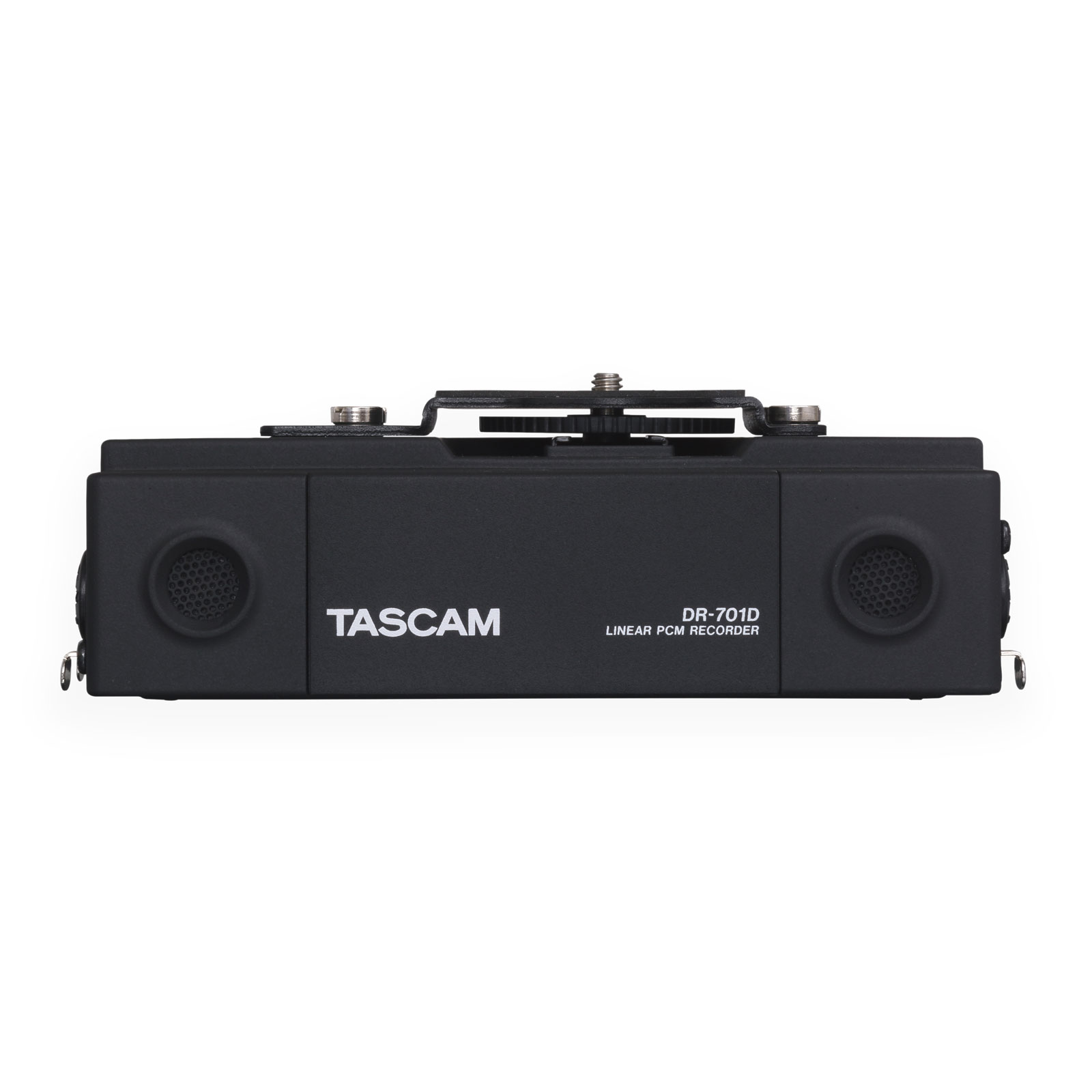

Tascam DR701D Linear PCM Recorder for DSLR
The DR-701D recorder for single-shooter video production. A timecode generator is included for location reference and the HDMI in and out allows a DSLR camera to start recording on both devices, and video clock prevents drift between sound and picture.
Four mic inputs can be individually recorded and mixed to a stereo track, for a total of six-track recording.
Magnesium alloy chassis with tripod mounts on the top and bottom.
DR701D Features :
- Records to SD/SDHC/SDXC cards
- 6 max simultaneous recording tracks
- MONO, STEREO, 2MIX, DUAL MONO, DUAL ST and DUAL2MIX recording modes
- Recording formats : 16/24-bit, 44.1/48/96/192kHz (WAV/BWF)
- Built-in mic preamps
- Input levels adjusted separately for each track

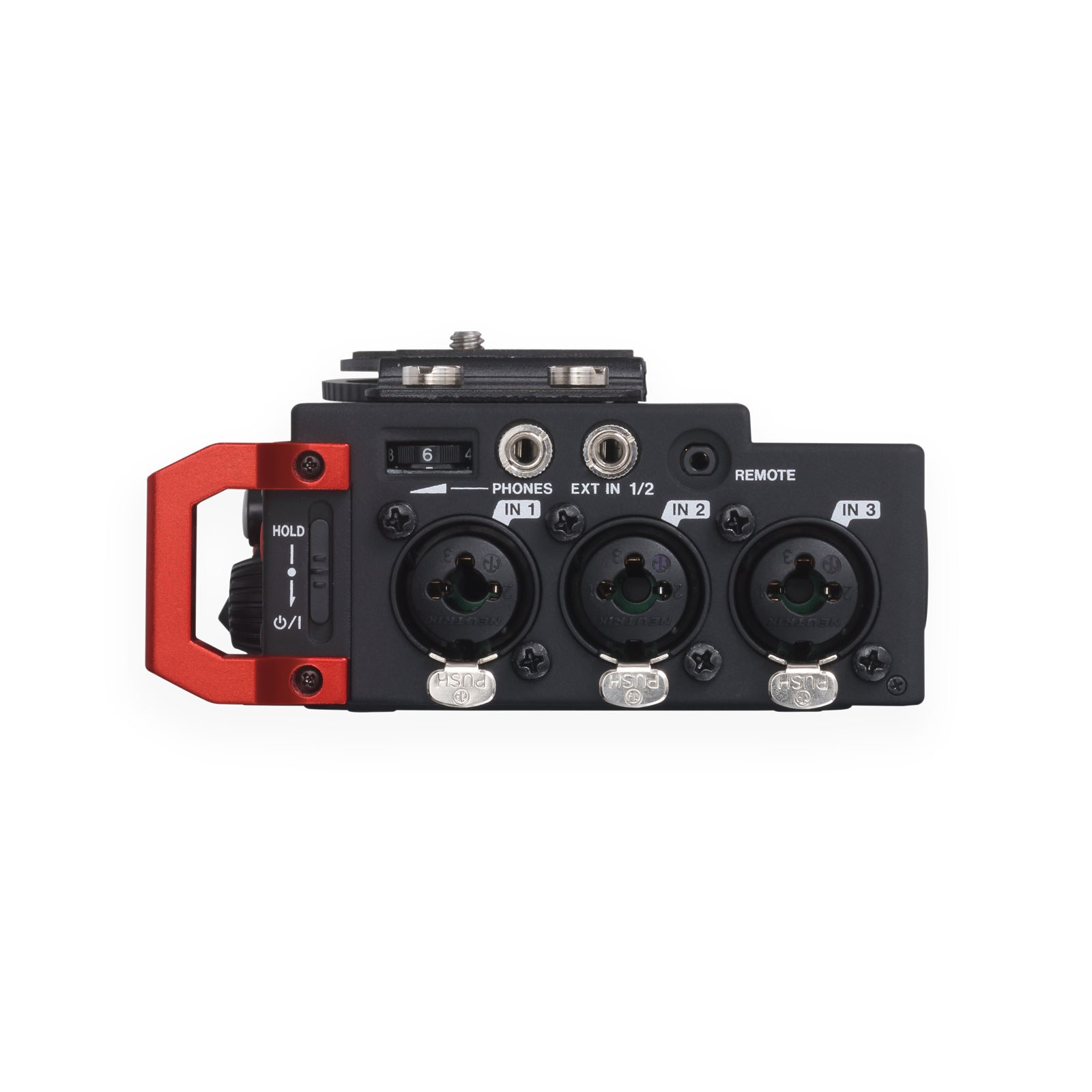

- XLR/TRS inputs support +4dBu line level and 24/48V phantom power

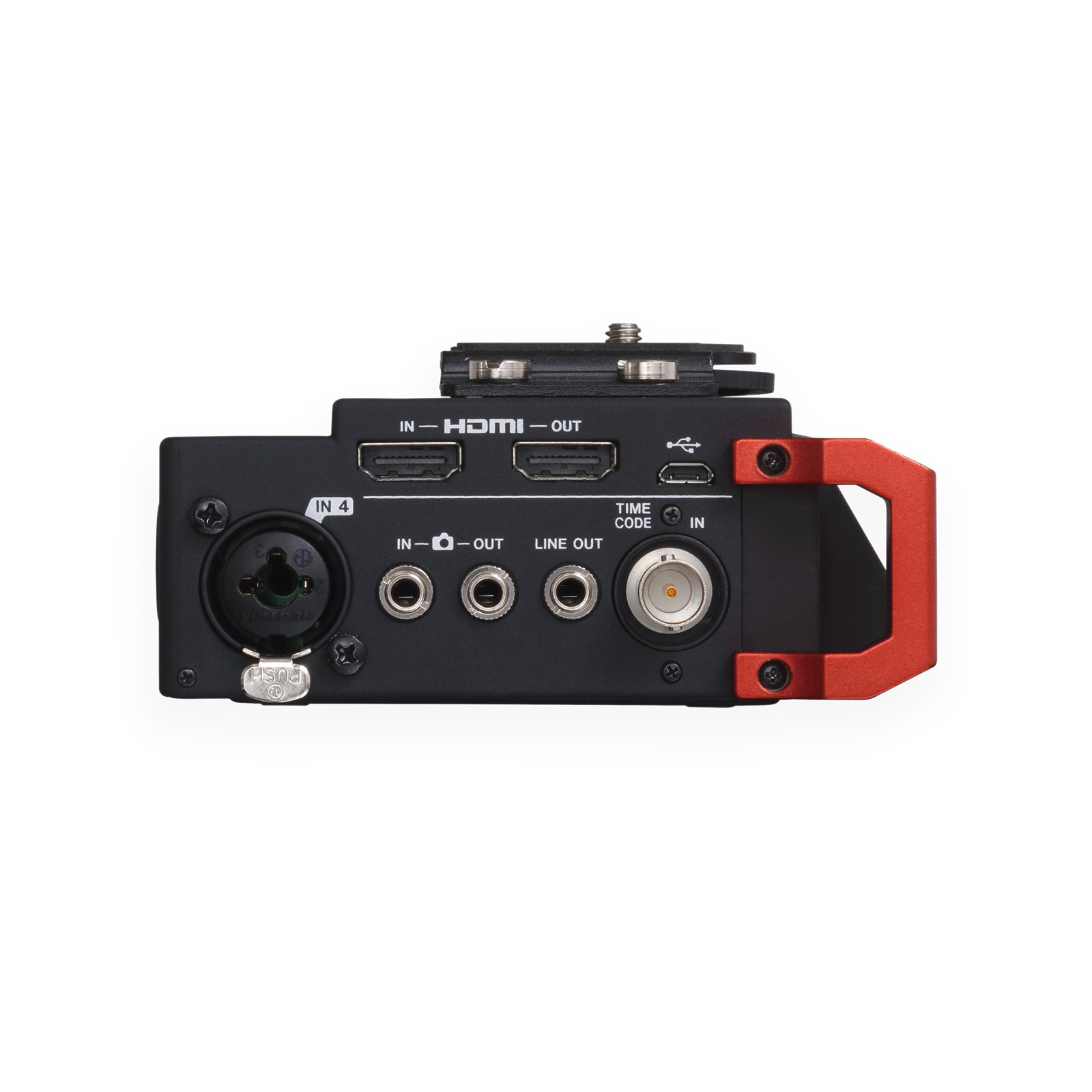

- Clock and record start/stop can be synchronized with a camera using the HDMI port
- OUT (CAMERA OUT) connector can output audio mixed by the DR-701D to a DSLR camera
- IN (CAMERA IN) connector enables monitoring the sound from a DSLR camera through the DR-701D
- High quality audio output through a line output jack separate from the headphones jack
- Headphones jack with 50mW+50mW maximum output
- HOLD switch prevents misoperation
- 128x64-dot graphic LCD with backlight
- High-speed transfer of files to computers possible using USB 2.0
- Micro-B type USB cable included
- Powered by 4 AA batteries, USB bus power or a PS-P515U AC adapter (sold separately)
- Built-in mixer enables pan and level adjustments as well as solo monitoring and can output a mix of 4 channels
- GANG function allows the levels of multiple channels to be controlled simultaneously
- 5-position low-cut filter (50/80/120/180/220 Hz) cuts unwanted low frequencies
- Multiband limiter automatically adjusts input overloads (stereo-linking possible with 1/L and 2/R)
- Delay function can compensate for distances between mics (+/-150 ms)
(TAS-DR701D)
SKU | TAS-DR701D |
Barcode # | 043774031986 |
Brand | Tascam |
Shipping Weight | 2.0000kg |
Shipping Width | 0.180m |
Shipping Height | 0.180m |
Shipping Length | 0.250m |
Shipping Cubic | 0.008100000m3 |
