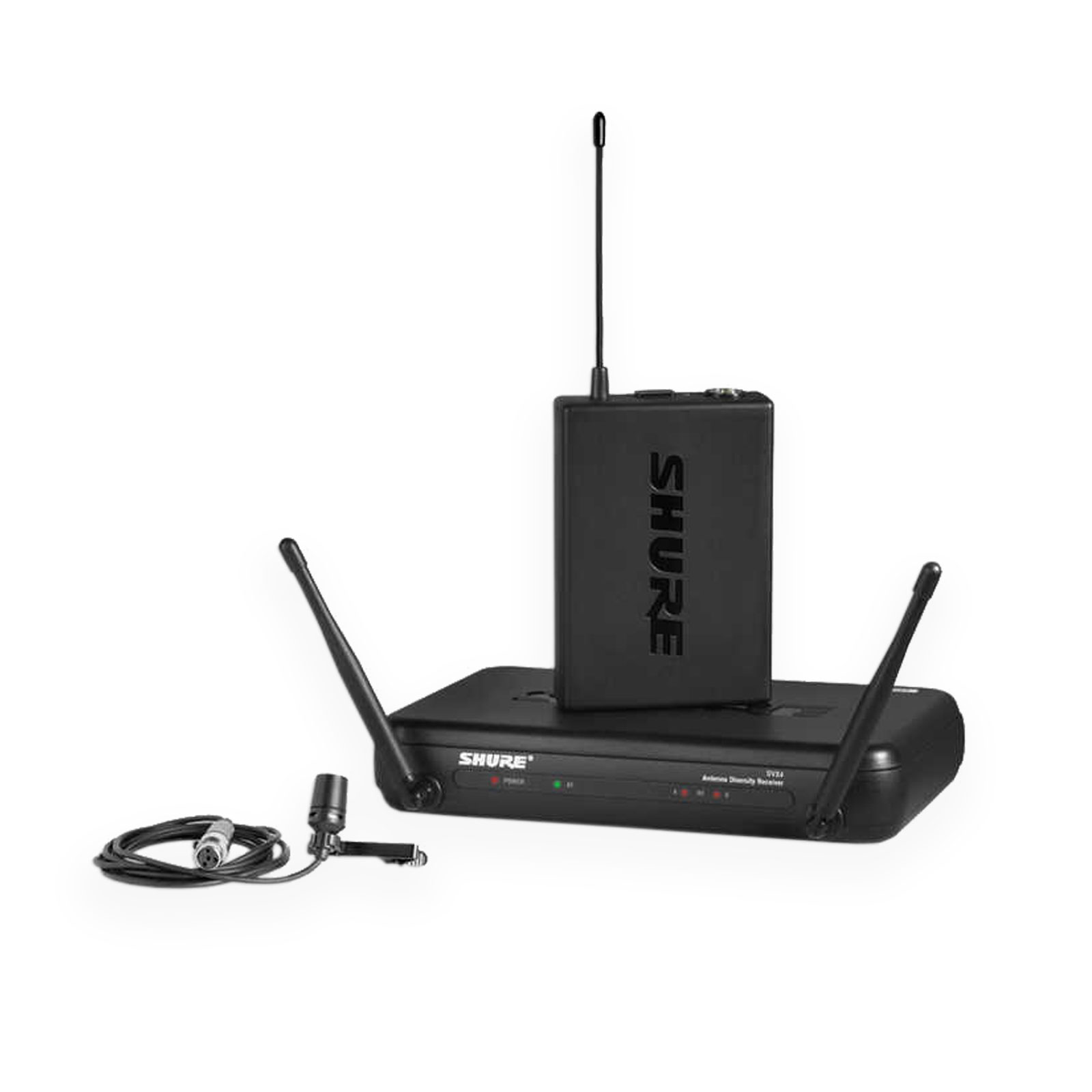

Shure SVX14CVL Wireless Microphone System with Lapel Microphone

SVX Wireless Systems deliver the quality of Shure wireless performance for virtually any application. From vocal performance to fitness instruction, presentations to karaoke, SVX Wireless will provide years of reliable use.

System Consists Of :

• 1 x Shure SVX4 Receiver (with power supply)
• 1 x Shure SVX1 Transmitter
• 2 x AA Batteries
• 1 x CVL Lavalier Condenser Microphone

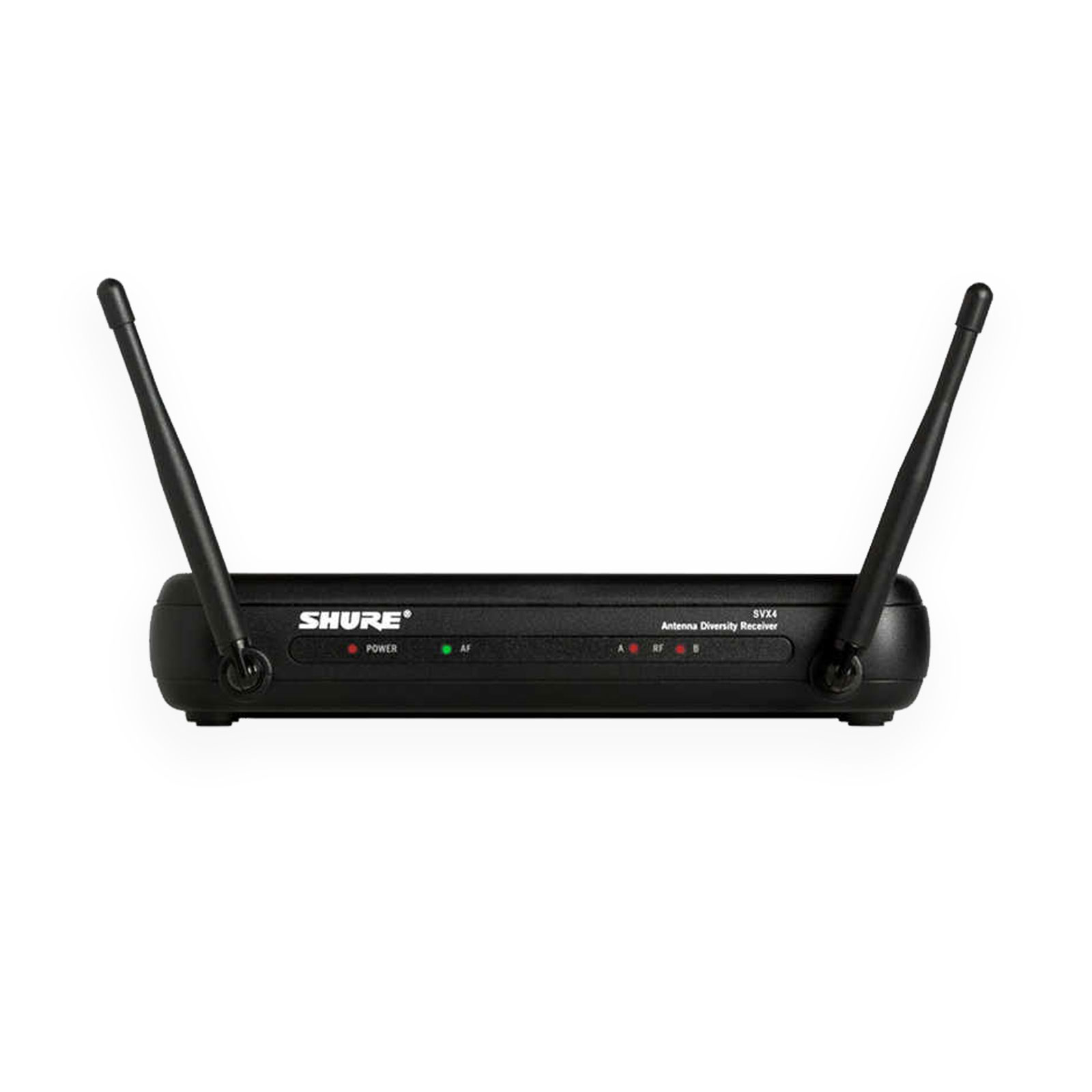

SVX4 Receiver Features :

• Antenna diversity
• Operational frequency 558 - 570MHz
• 8 selectable channels
• Up to 4 compatible channels
• Adjustable Squelch
• 1/4” output & XLR output
• Mic / Line Switch

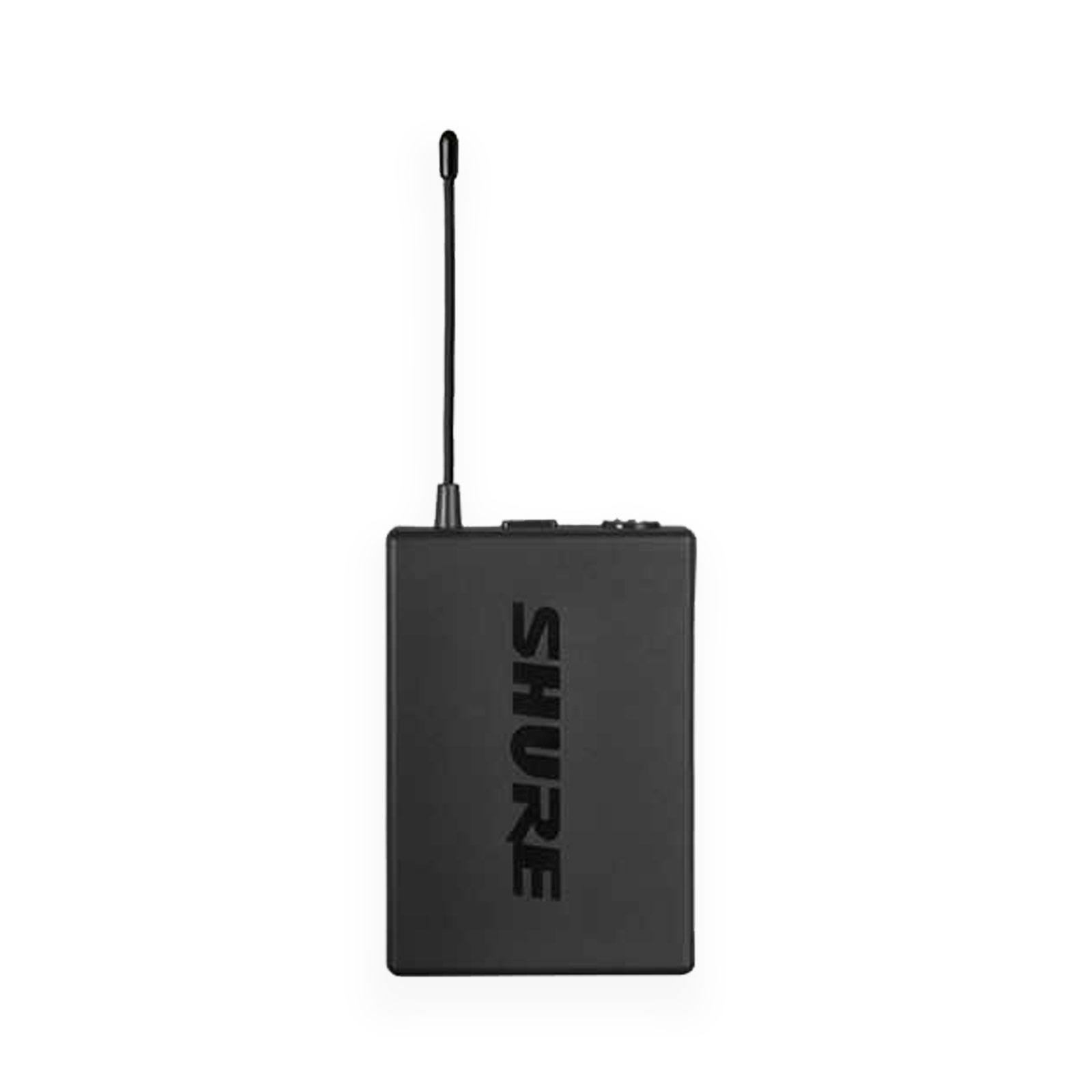

SVX1 Transmitter Features :

• 8 selectable channels
• On/Off switch
• Power : 2 x AA batteries
• Power and battery status LED
• MIc/Line switch
• RF Output Power : 10 - Battery endurance : 10 h
• Internal gain control
• Dimensions : 108 mm x 64 mm x 19 mm
• Weight : 90g (without batteries)

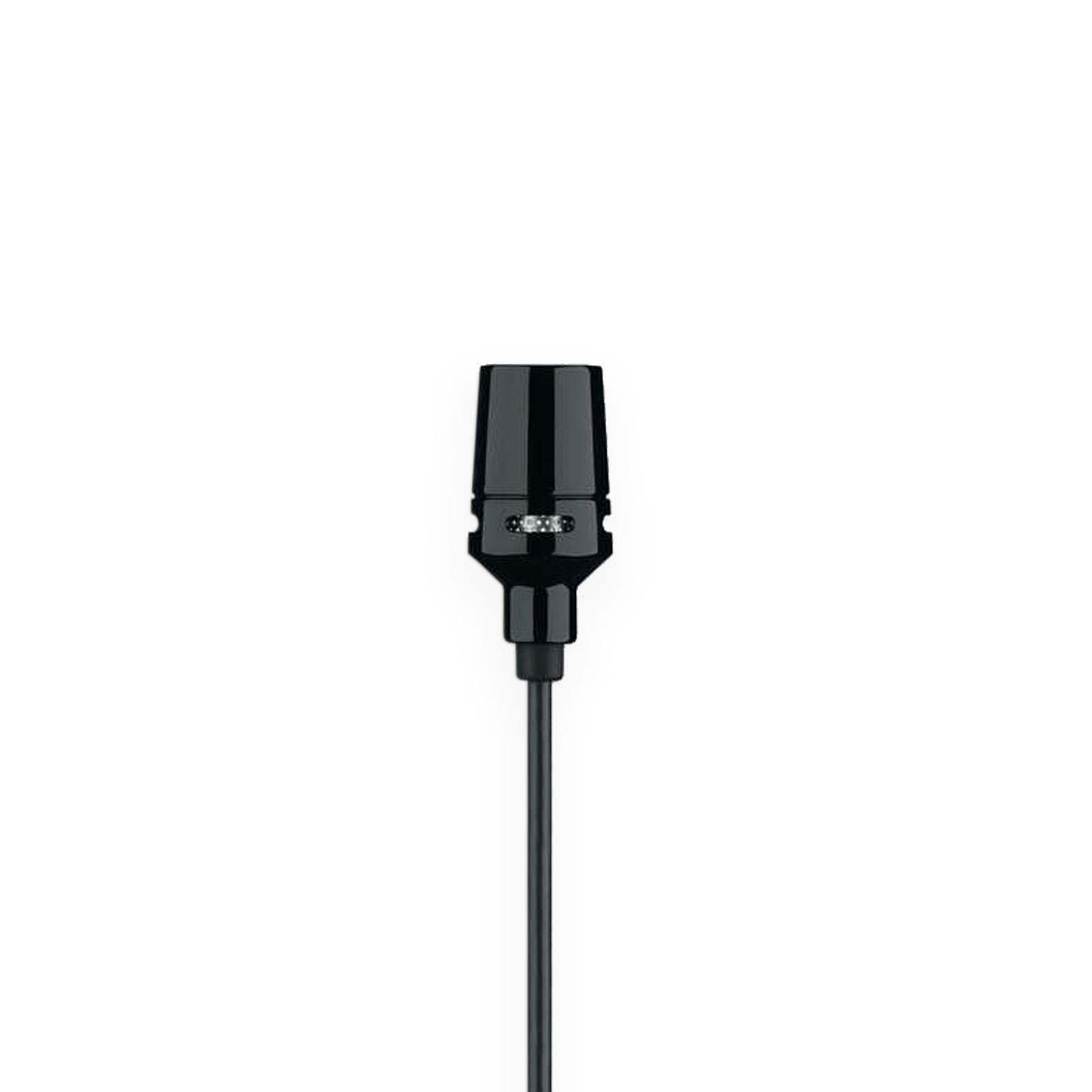

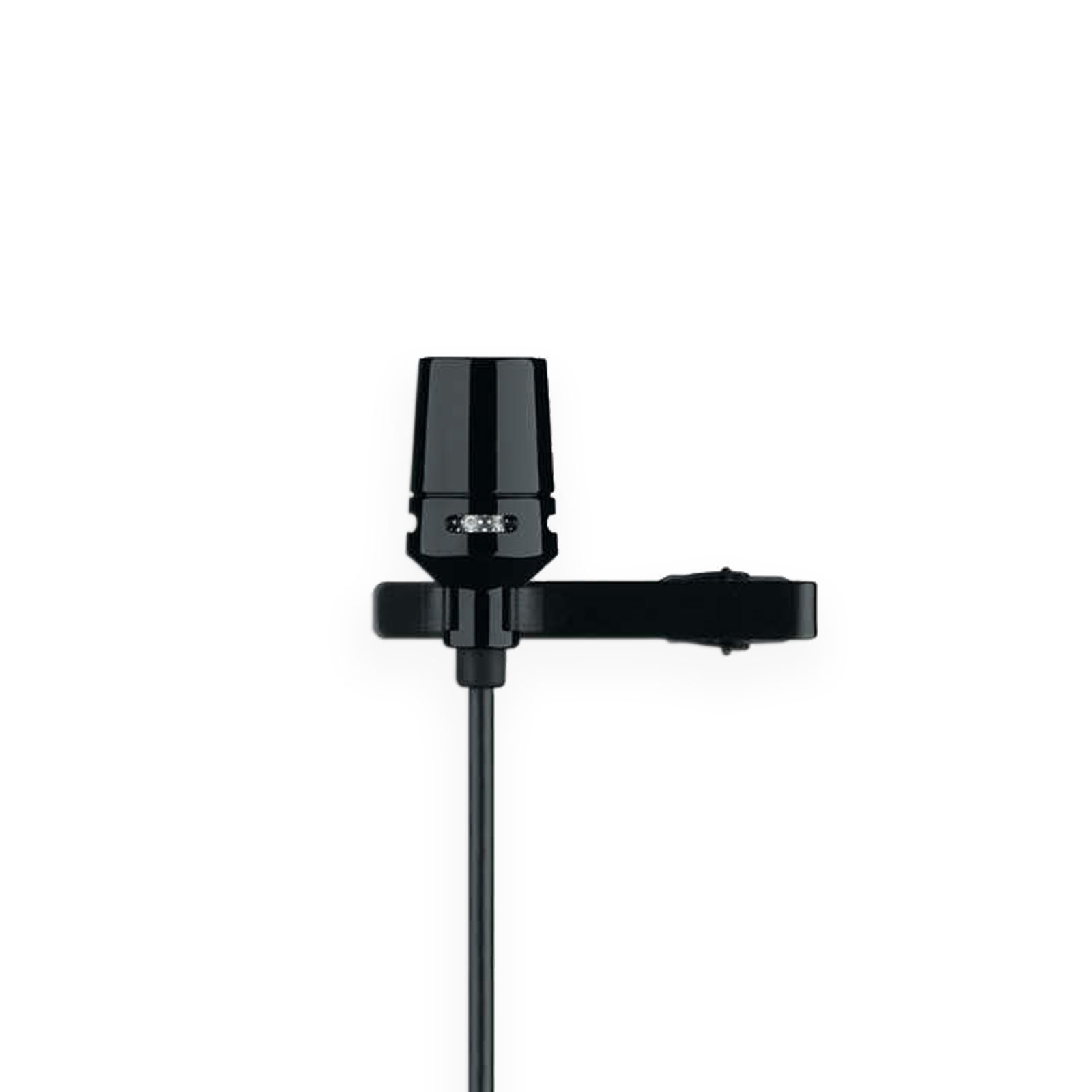

CVL Lavalier Microphone

Centraverse clip-on lavalier condenser microphones are more sensitive and give a smooth natural sound.

Features :

• Miniature clip-on lavalier microphone for low visibility
• Permanently charged electret condenser element for clear vocal reproduction
• Unidirectional (cardioid) polar pattern
• Included tie clip allows for hands-free use, perfect for presenters
• Included windscreen reduces plosives, wind and breath sounds
• Tailored frequency response optimized for speaking and presentations
• TA4F (TQG) connector

Specifications :

• Transducer Type : Condenser
• Polar Pattern : Cardioid
• Frequency Response : 50 Hz - 20 KHz
• Sensitivity (dBV/Pa) : -43.5 dBV/Pa
• Weight : 25 g
• Output Impedance : 600 ohm @ 1 kHz
• Signal-To-Noise Ratio [1 ] : 72 dB @ 1 kHz
• Maximum SPL [1] : 139.0 dB 1000 ohm load, @ 1% THD
• Dynamic Range [1] : 117.0 dB @ 1 kHz, 1000 ohm load
• Equivalent Output Noise [1] : 22 dB Typical, A-Weighted
• Power Requirements : +5 V DC (nominal), 10 V maximum (DC bias)
• Polarity : Positive pressure on diaphragm produces positive voltage on pin 3 with respect to pin 1
• Cable : 1.3 m
• Connector : TA4F
