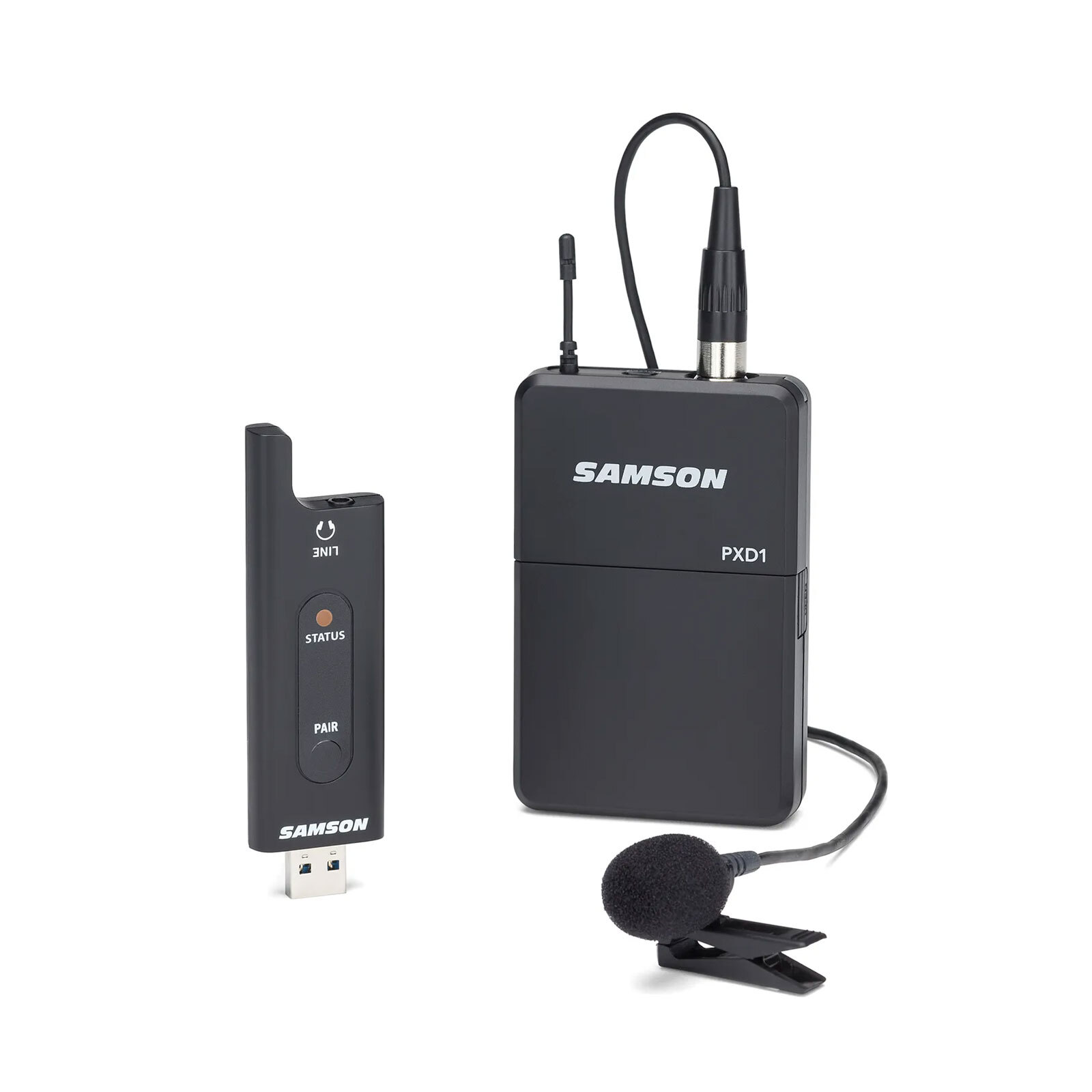

Samson XPD2 USB 2.4Ghz Wireless Lapel Microphone System

The Samson XPD2 Lavalier system allows you to bring a wireless microphone to a variety of sound applications via its uniquely designed USB stick receiver. Offering simple setup, professional full-range audio and 100' of wireless operation, the XPD2 Lavalier is perfect for live performances, digital communications and mobile productions.

The RXD2 USB stick receiver connects directly to PC or Mac computers, or with any Samson Expedition Series Portable PA System that features a USB Wireless port. The 3.5mm output allows for headphone monitoring or the XPD2 to be used with any device that has an analog line input.

Features:

• 2.4GHz USB digital wireless system
• Ideal for broadcasting, live streaming, presentations and more
• Plug-and-play operation with Mac and Windows
• Works with iPad via Apple's Lightning to USB Camera Adapter
• Works with Android devices via a host OTG adapter
• RXD2 USB stick receiver
• Receiver features a 1/8" (3.5mm) headphone/monitor output
• PXD1 beltpack transmitter with Samson LM8 Lavalier Microphone
• Transmitter offers 20 hours of battery life using two AA batteries (not included)
• 100' operating range (line of sight, environment dependent)
• 1-touch pairing, adjustable Volume controls on transmitter
• Compatible with Samson Expedition Series Portable PAs that feature USB Wireless ports
• Includes lapel clip and USB extension cable

Technical:

System:

• Simultaneous Systems: 2
• Working Range: 100’ line of sight
• Working Frequency: 2.404~2.476 GHz
• Modulation type: GFSK
• Audio Frequency Response: 20 Hz – 17 kHz (-1 dB)
• T.H.D: <0.1% (at 1 kHz, -10 dBu)
• Signal to Noise: >85 dB

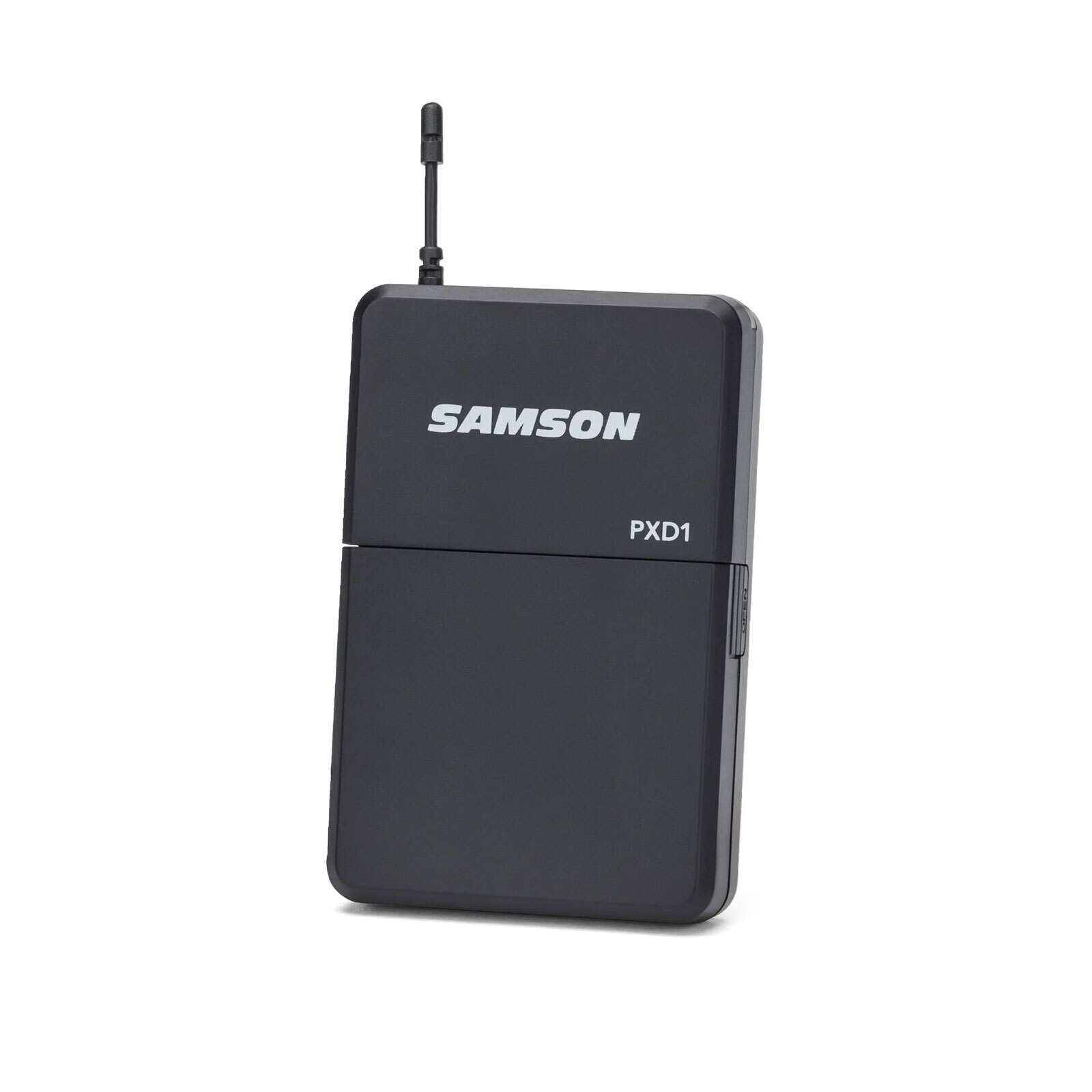

PXD1 Transmitter:

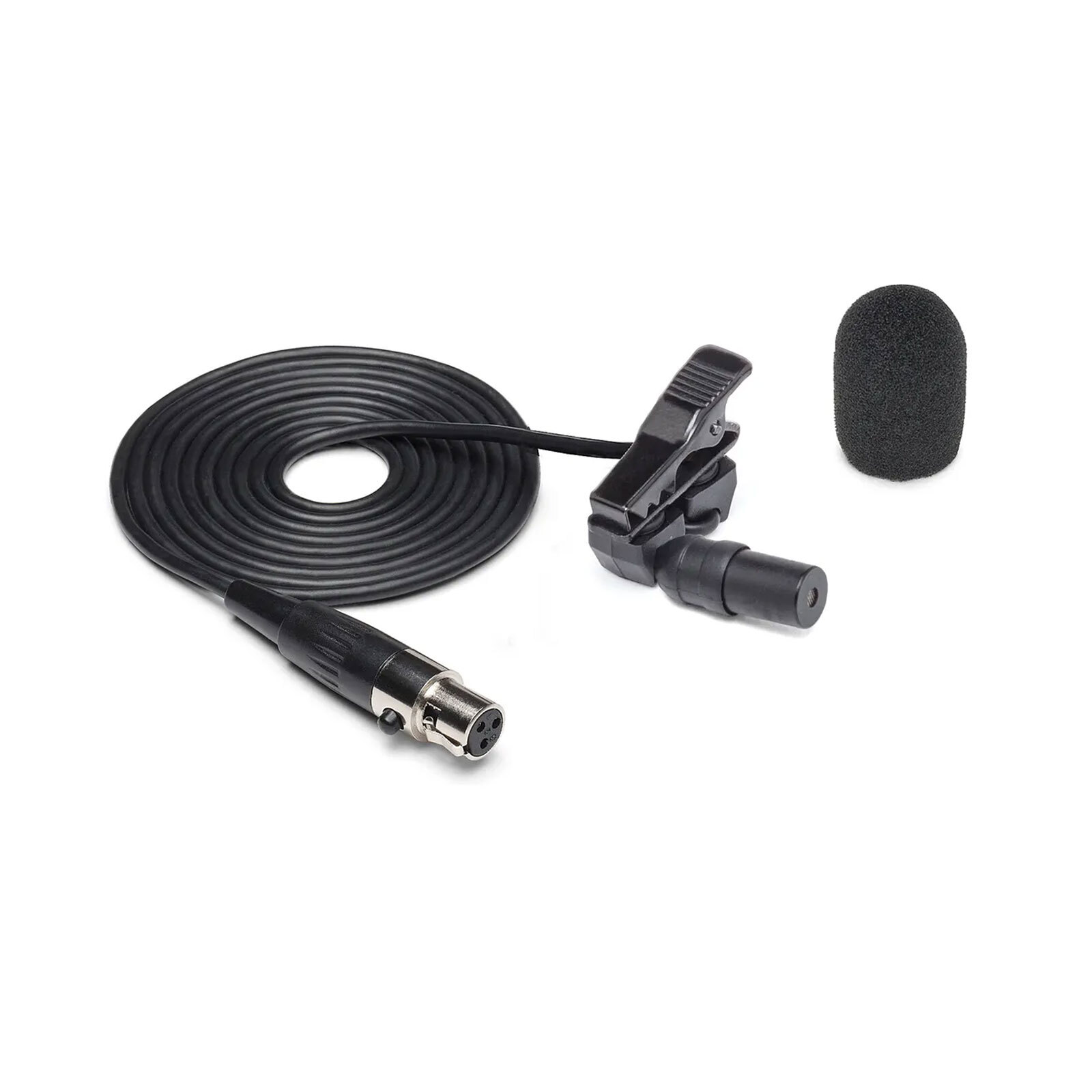

• Microphone: Samson LM8 lavalier mic
• Input Connector: Mini-XLR (P3)
• RF Power: <10 mW EIRP
• Power Requirements: Two AA (LR6) alkaline batteries
• Battery Life: 20 hours
• Audio Sample Rate: 32 kHz
• Dimensions: 96mm x 62mm x 18.5mm
• Weight: 93g

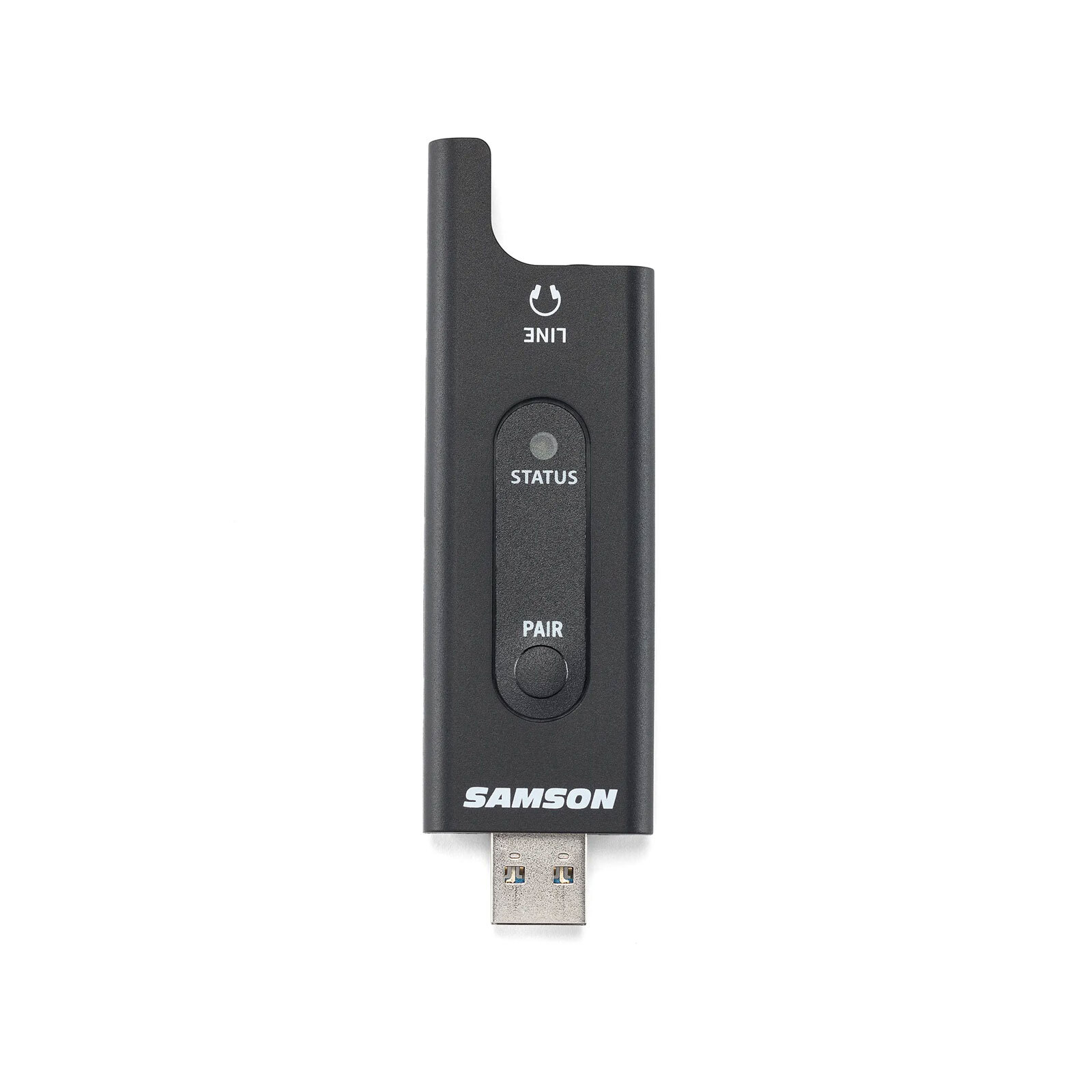

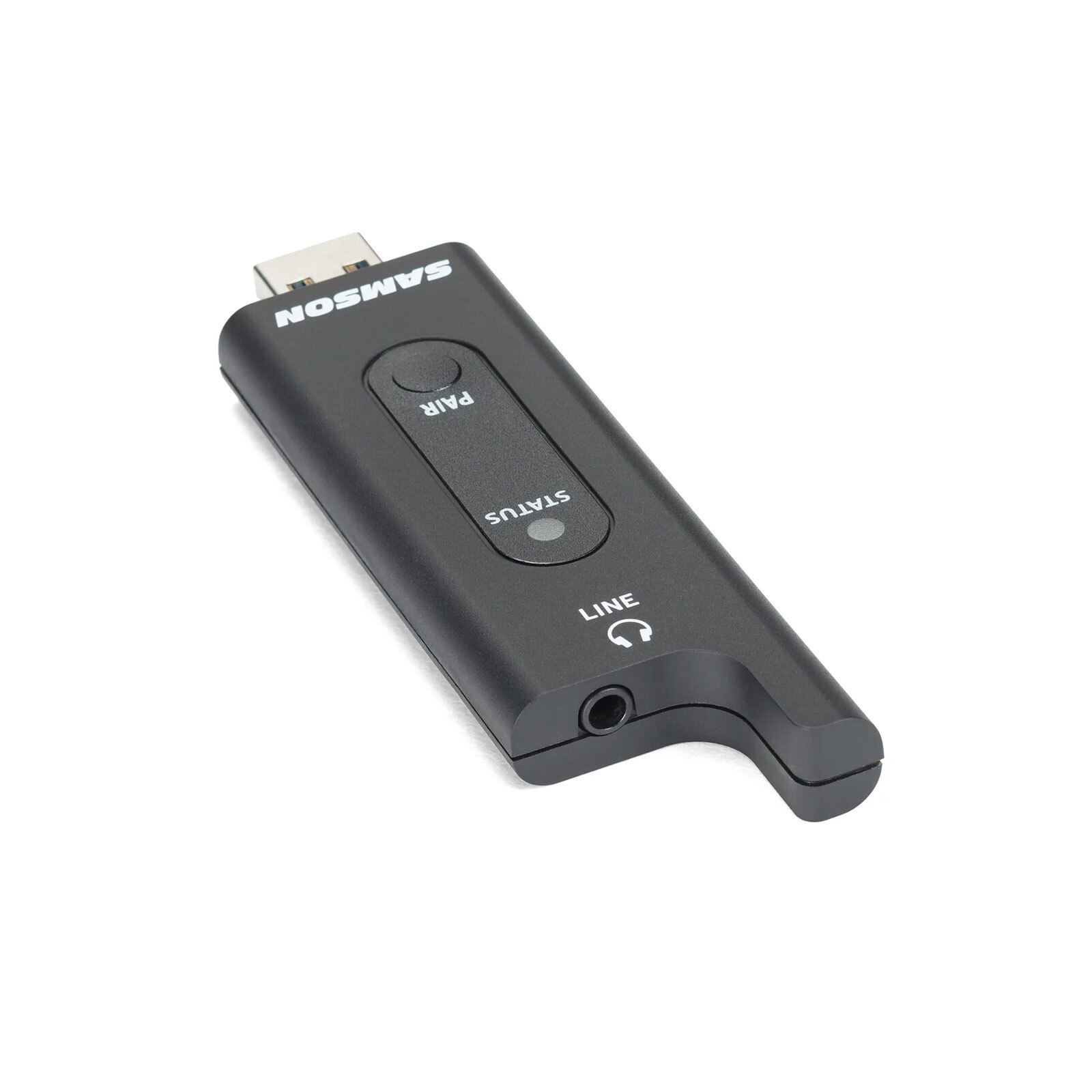

RXD2 Receiver:

• Max. Analog Audio Output Level: 9 dBu
• Headphone Output: 22 mW into 16 Ω or 32 Ω
• Operating Voltage: 5V DC
• Dimensions: 89mm x 23mm x 8mm
• Weight: 10g
