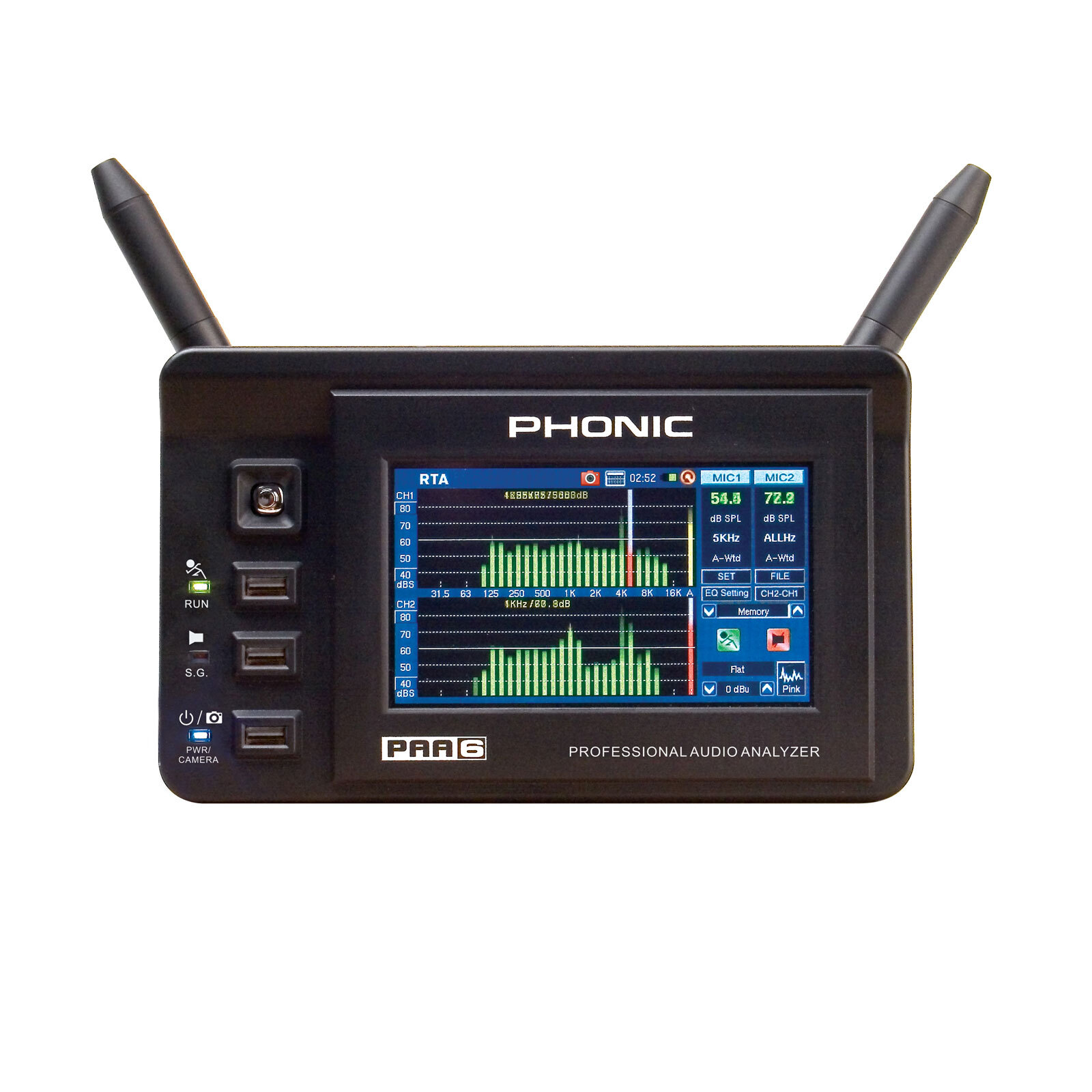

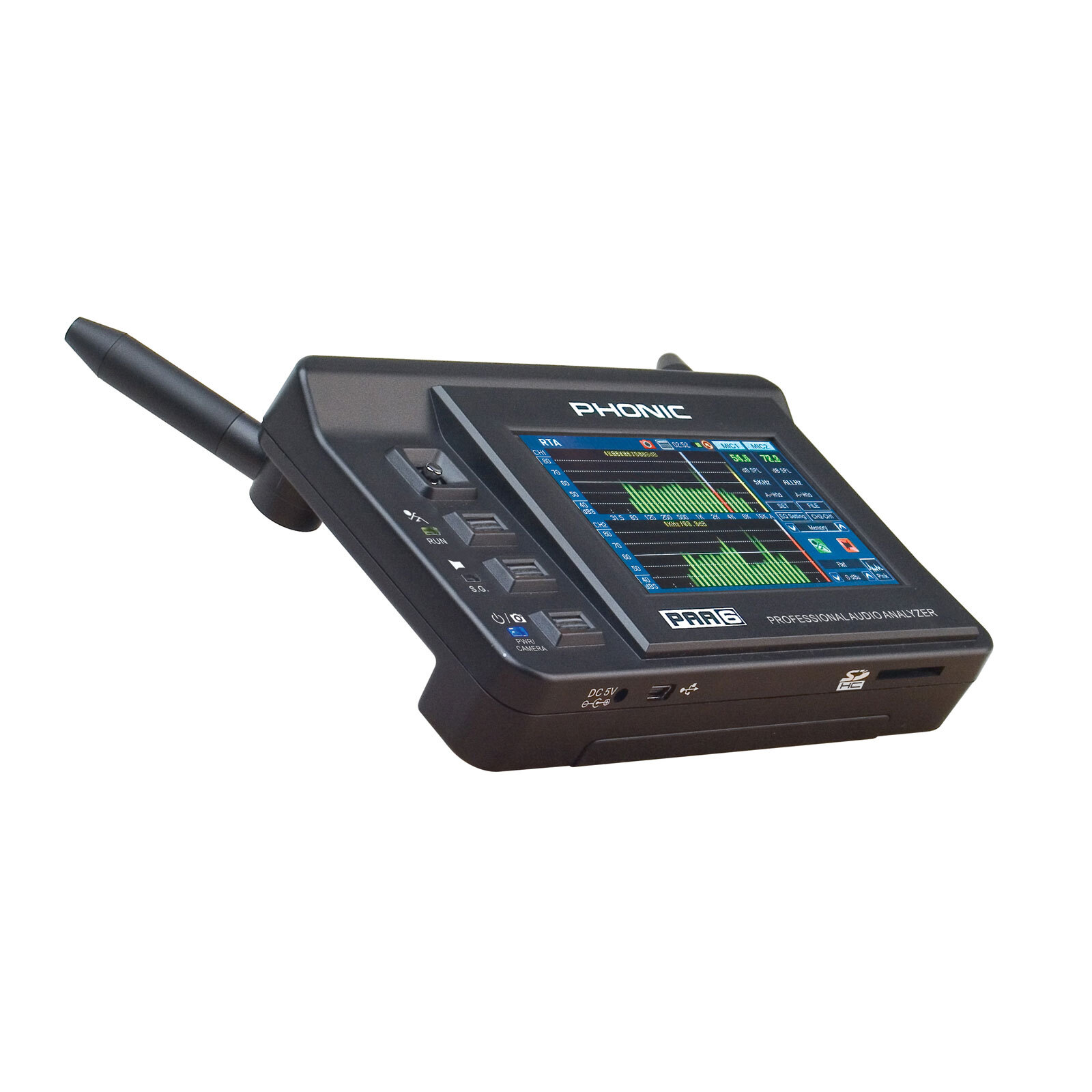

Phonic PAA6 2-Channel Audio Analyser with Colour Touch LCD

The PAA6 is an advanced, two-channel digital handheld professional audio analyzer from Phonic. All functions and menus are easily accessed through a 480 x 272 color touch-screen display.

The PAA6 inherits significantly improved functions from the other popular models in the Phonic audio analyzer family, including real time spectrum, RT60, tone generator, LEQ, EQ setting and phase checking. Moreover, the PAA6 audio tester provides engineers with an even wider array of essential sound analysis tools than ever before - now adding SLM, FFT, THD+N, and scope functions to the mix, as well as two built-in mics that can take highly accurate measurements in any given situation.

A USB connector and SD card slot have been included to assist in transferring information to and from your computer.

This feature-rich, portable audio tester is sure to satisfy discerning professional audio engineers, regulatory enforcement agencies and product development teams.

Features:

• Powerful dual channel palm-size professional audio analyser
• 480 x 272 color LCD touchscreen
• Detailed graphical interface
• Two built-in omnidirectional condenser microphones
• RTA function
  • Selectable resolution between 1, 2/3, 1/3 and 1/6 octave
  • A, B, C and flat weightings
  • dB (SPL), dBu, dBV and voltage measurements possible
  • Add or subtract channels
• LEQ
  • Time adjustable up to 2 days
  • 1 octave resolution
• Level meter
  • Measures SPL, dBu, dBV and voltage
  • Maximum level display with reset button
• RT-60
  • 13 frequency filters settings
  • A, B, C or flat weightings
  • RT-60 chart and time
• FFT with user-selectable range
• Accurate THD+N measurement
• Polarity for measuring speakers and wiring
• Check phase between two signals
• Detailed oscilloscope
• Measurements for most functions can be taken by dB SPL, dBu, dBV & volts
• Tone generator with user adjustable frequencies and level
  • Pink noise
  • White noise
  • Sine wave
  • Triangle wave
  • Square wave
  • Sweep
  • Polarity
• Long-lasting rechargeable lithium-ion battery system
• USB port and SD card slot included for storing and retrieving data
• Beta interface software now available
• DC power supply included.
