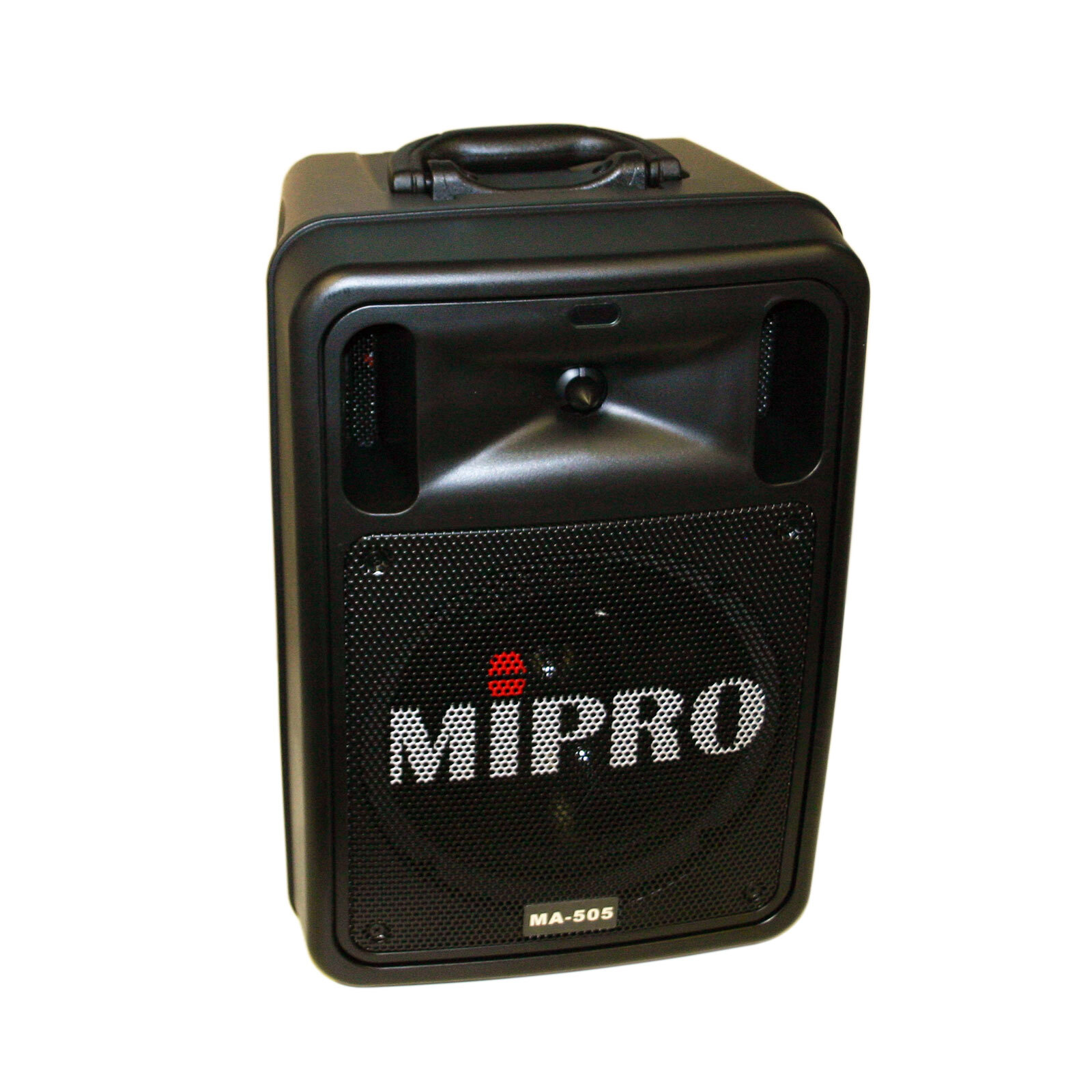

Mipro MA505PA Battery Portable PA System, Bluetooth, Wired & Wireless Handheld Microphones

The Mipro MA-505 delivers unparalleled audio performance and craftsmanship. The rugged one-piece speaker cabinet houses a high efficient class-D amplifier that drives high sensitivity two-way loudspeakers and limiter circuitry reduces distortion and increases intelligibility for guaranteed powerful and clear sound.

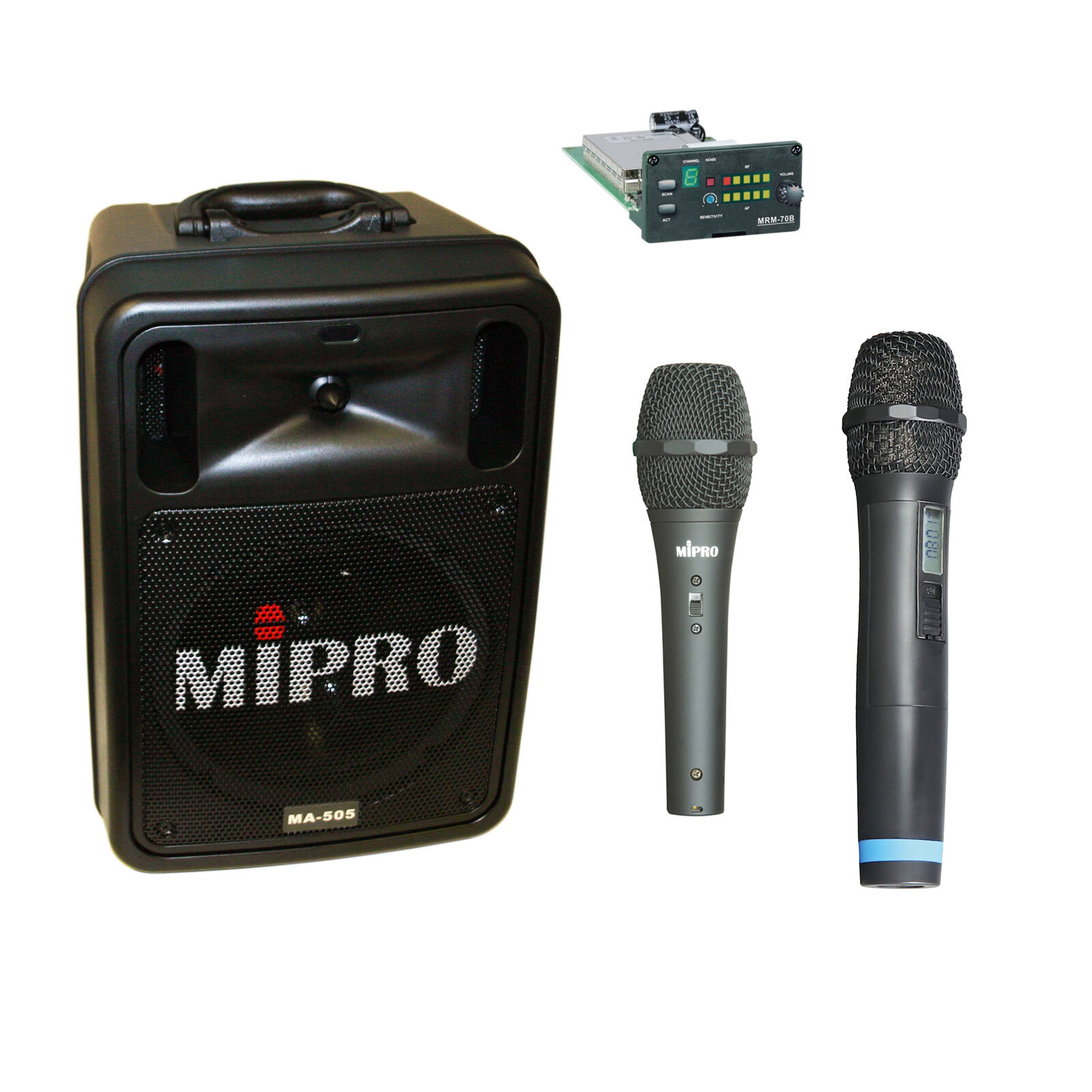

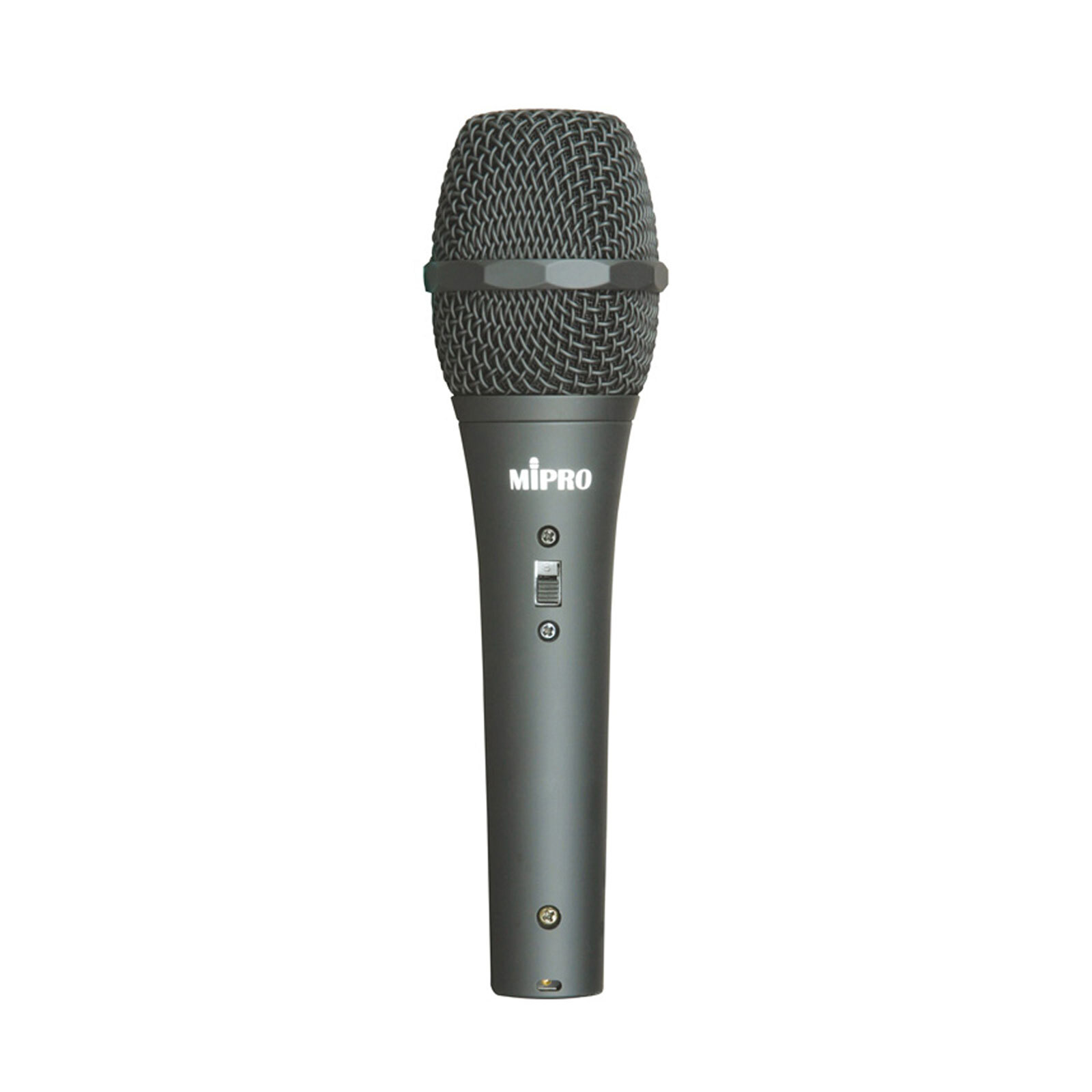

Complete with Wireless Receiver, Wireless Handheld Microphone and Wired Handheld Microphone with Cable.

It offers an ideal public address solution for medium crowds.

Ideal Applications :

• School classrooms & halls
• Places of worship
• Presentations, seminars and meetings
• Day-care activities; playground duty
• Indoor/outdoor gatherings
• Weddings & funeral services
• Shopping center & trade show presentations and promotions
• Street performers
• Aerobic and fitness centers
• Recreational and social activities

Features :

• 145-watt power of loud and clear sound via high efficient class-D amplifier.
• Rugged one-piece molded enclosure houses 1 " titanium compression driver & 8 " woofer.
• Powerful and crystal-clear sound projection.
• Built-in Bluetooth music player for wireless audio streaming.
• Built-in one-button alarm/siren for warning of threats.
• Built-in AC switching power supply for universal usage and fast battery charge.
• A smart 4-segment battery meter for accurate battery reading and charging status.
• Built-in cable storage compartment.
• AC and lithium rechargeable battery operation.
• Up to 8 hours of stand-by time per 4-hour full charge.

Technical :

• Power Output : 100W(rms) 4ohm, 145W(max) 4ohm
• Amplifier : Class D
• Sensitivity : Typical - 91 dB, Maximum - 109 dB
• T.H.D. : < 1%
• Frequency Response : 50 Hz~18 kHz
• Speakers : Tweeter - 1 " Tweeter, Bass - 8 " Woofer
• Coverage : H 130 deg. x V 90 deg.

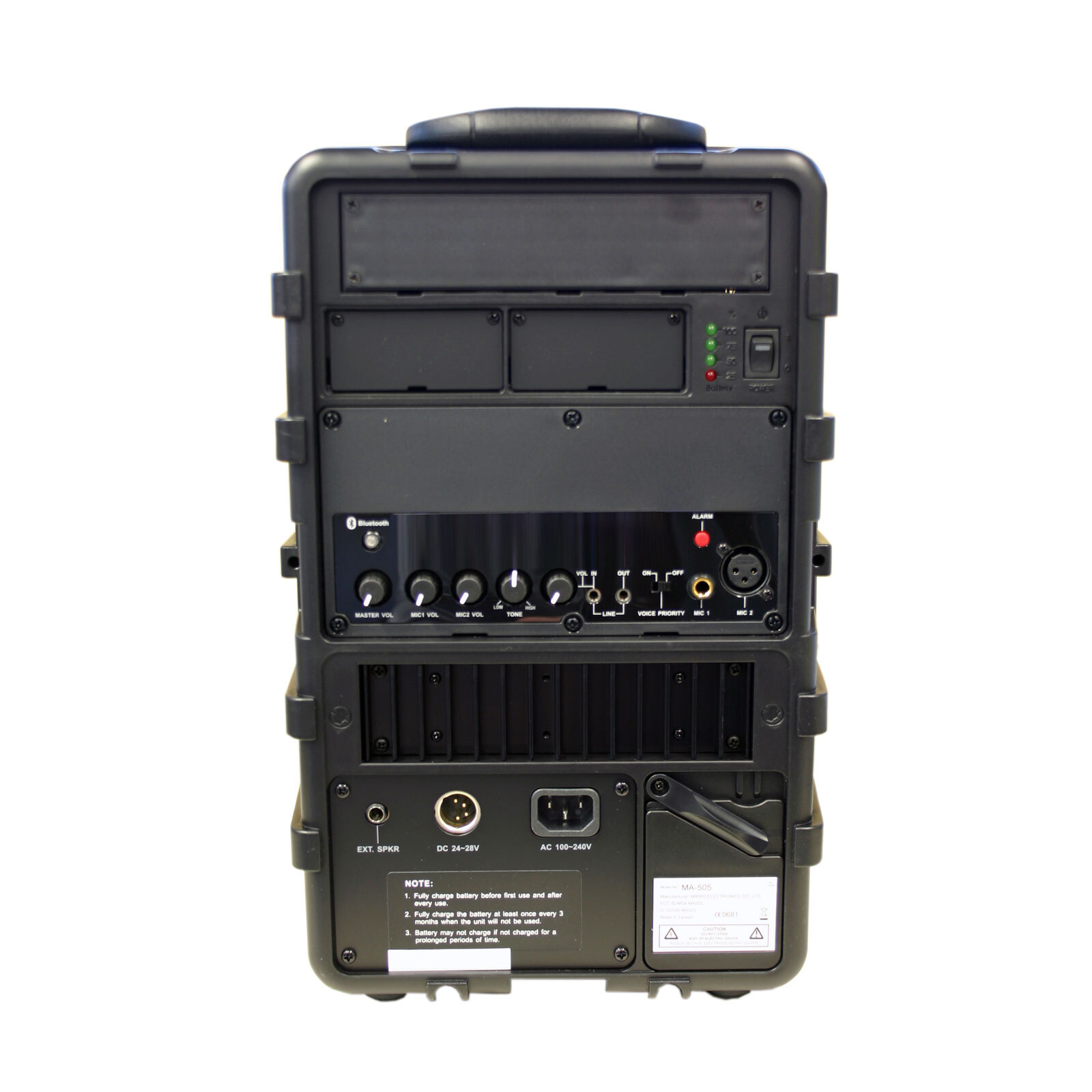

• Audio Inputs :
  • Wired : XLR balanced & unbalanced 6.3 mm (1/4 ")
  • Line-In : 3.5 mm (1/8 ") mini-jack
  • Bluetooth Connectivity : Yes
• Audio Output : 3.5 mm (1/8 ") mini-jack
• Extension Speaker : Unbalanced 6.3 mm (1/4 ") jack
• Volume : Individual volume control
• Storage : For AC power cable
• Power Supply :
  • AC :
    • Built-in 100~240V AC switching power supply (Max. Power Consumption: 165W)
  • DC & Battery :
    • External DC connector.
    • Built-in 22.2V/4.5AH rechargeable lithium (MB-35 x 1)
      • Charge Time : Up to 4 hours (automatic charging management)
      • Standby Time : Up to 8 hours
      • Battery Indicator : 4-level LED indicator (25/50/75/100%)
• Color : Black
• Dimensions : (W × H × D) 285 × 400 × 225 mm
• Weight (battery included) : Approx. 8.5 kg​

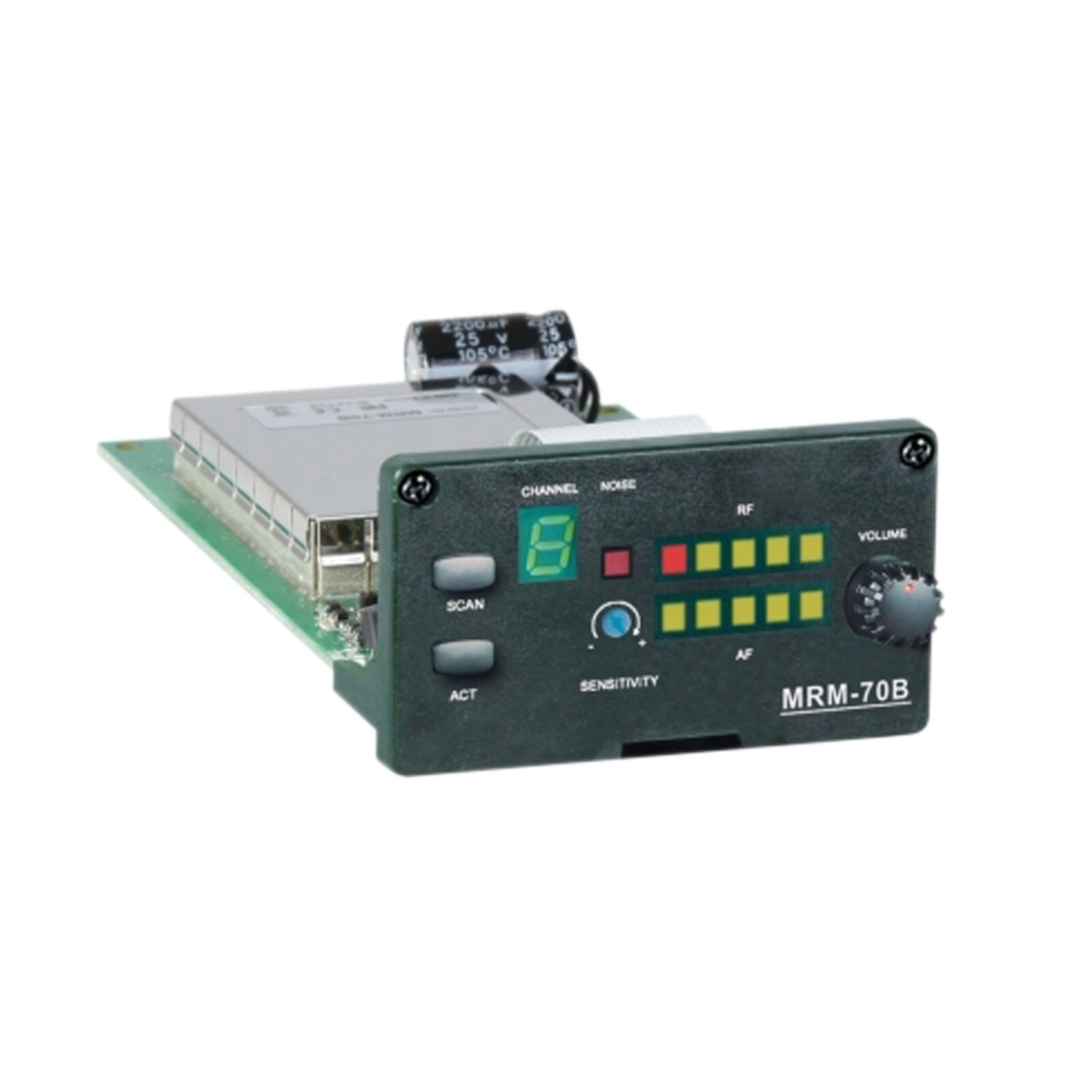

Mipro MRM70 UHF 16ch Receiver Module to suit MA505/707/708.

• 5NB frequency set (520-544MHz ).​

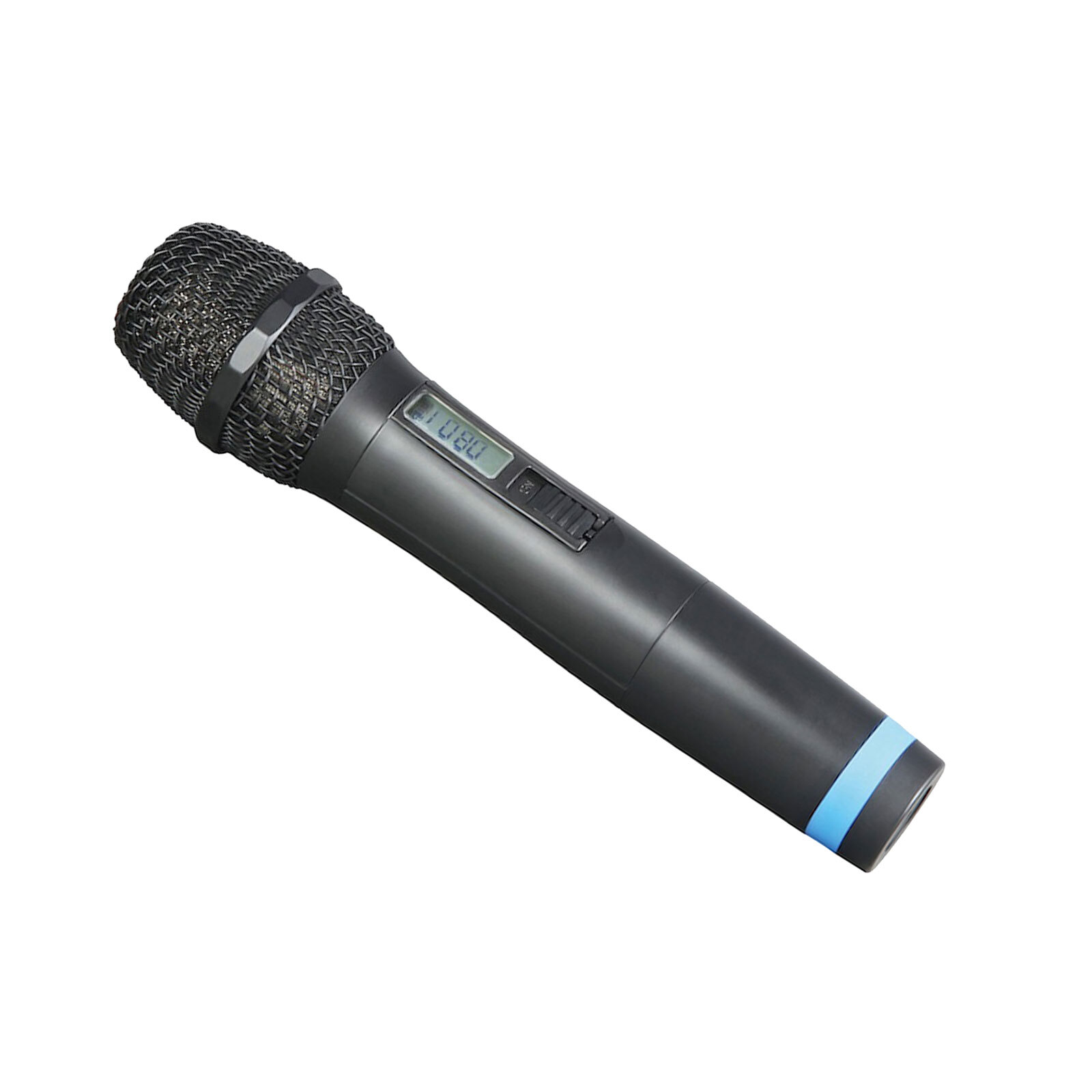

Mipro ACT-32H Handheld Microphone Transmitter - frequency set 5NB (520~544MHz). Suitable for Mipro portable PA systems.

Features :

• Innovatively designed metal housing in MIPRO’s distinctive aesthetic and ergonomic style.
• Interchangeable capsule module with premium condenser or dynamic options for easy and fast changeovers. The unique multi-layered metal grille protects the capsule against impact, rolling and pop noise, ensuring clarity of sound. The upper grille is easy to detach for cleaning and hygiene practice.
• Patented capsule suspension design virtually eliminates vibration and handling noises.
• Built-in high-efficiency antenna.
• Backlit LCD displays all operational parameter information.
• World’s first ACT™ function provides precise and rapid frequency sync to the receiver.

Technical :

• Housing : Black-color rugged plastic housing
• Display : LCD displays all operational parameter information.
• Frequency Range : UHF 520~544MHz
• Bandwidth : 24 MHz RF
• Deviation : < ± 40 kHz
• Spurious Emissions : < -55 dBc
• Gain : 0 dB = input microphone sensitivity. High-fidelity modulation circuit sustains high SPL without distortion.
• Dimensions (Ø × L) : 51 × 234 mm
• Net Weight : Approx. 251 g
• Battery : 2 × AA alkaline
• Operating Time : Min. 12 hours
