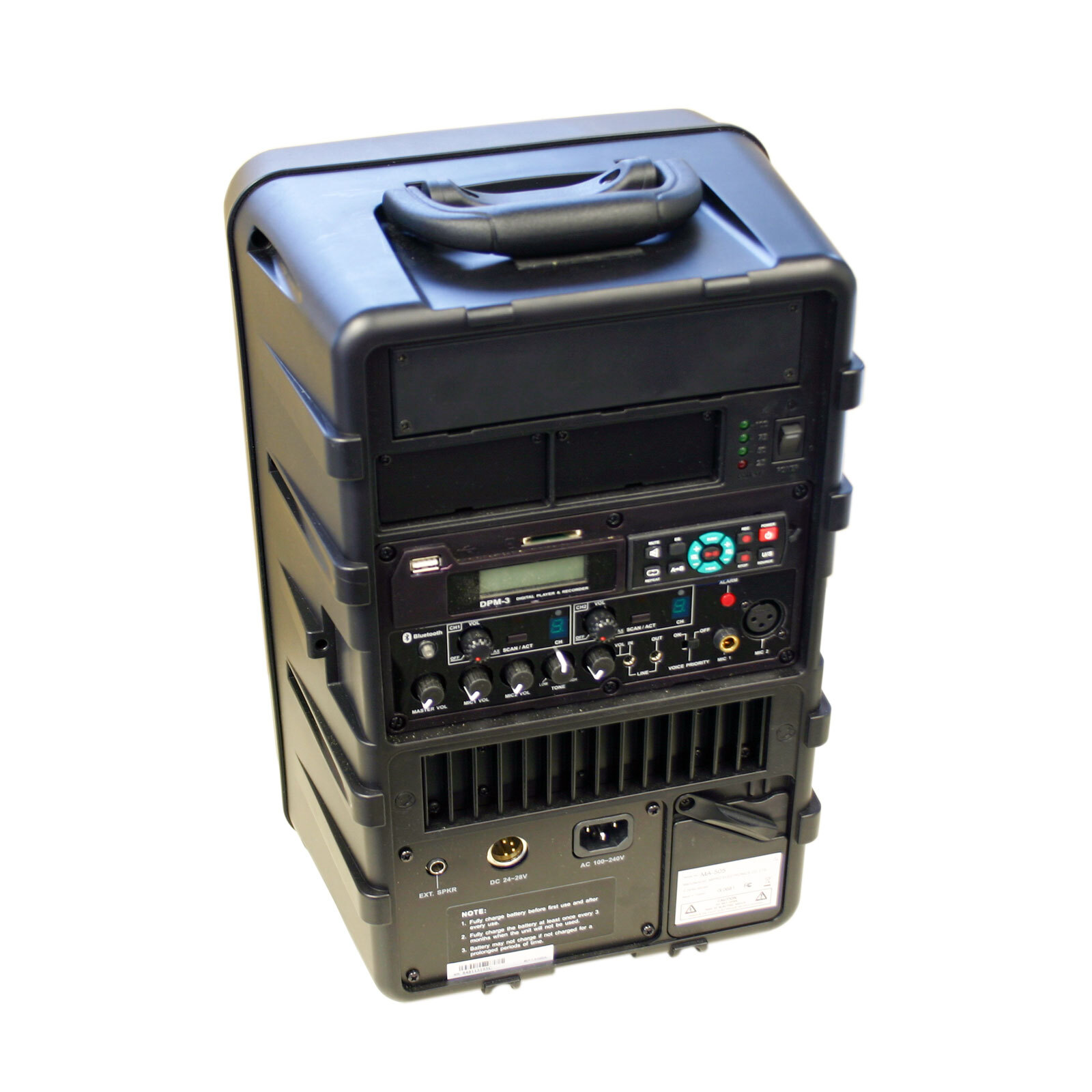

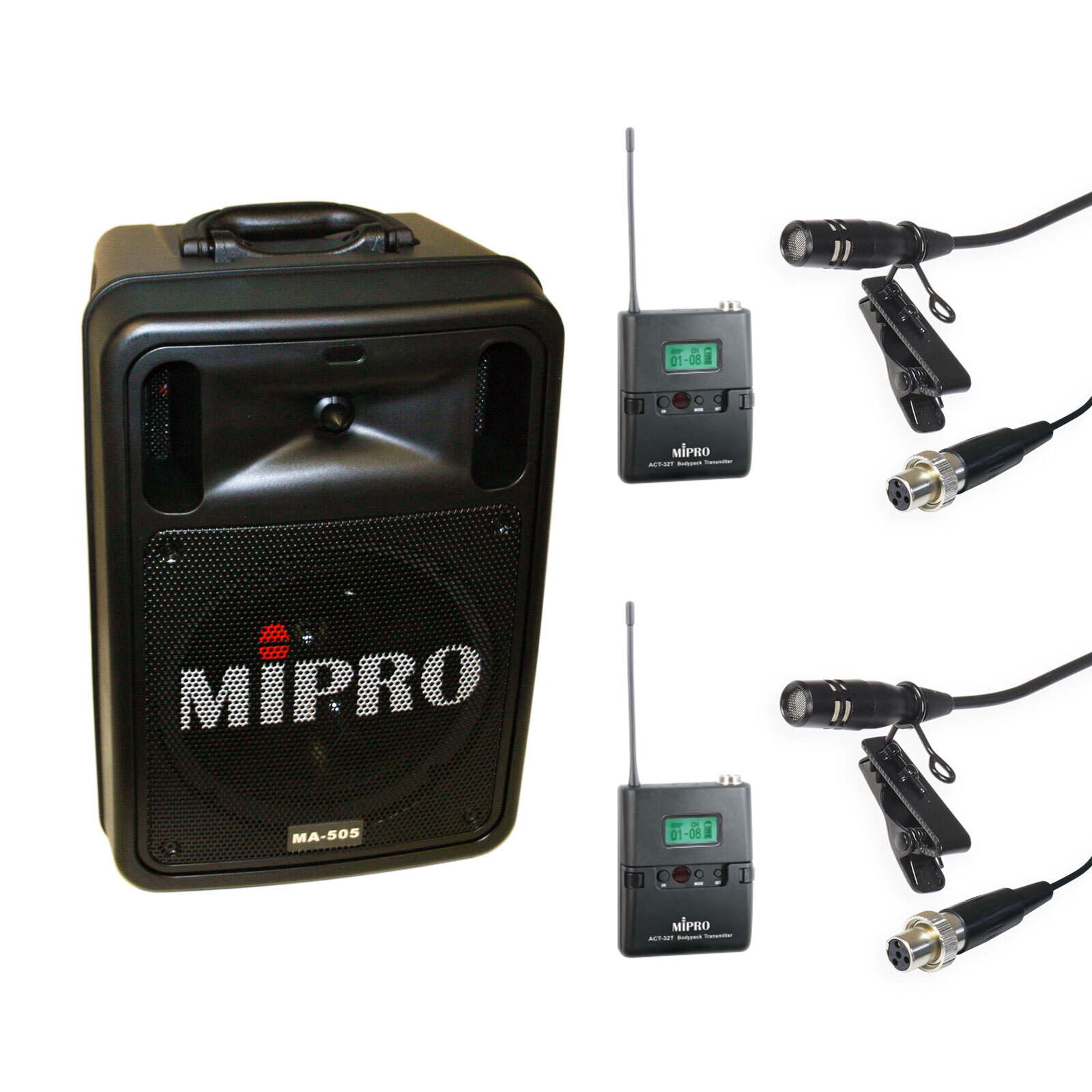

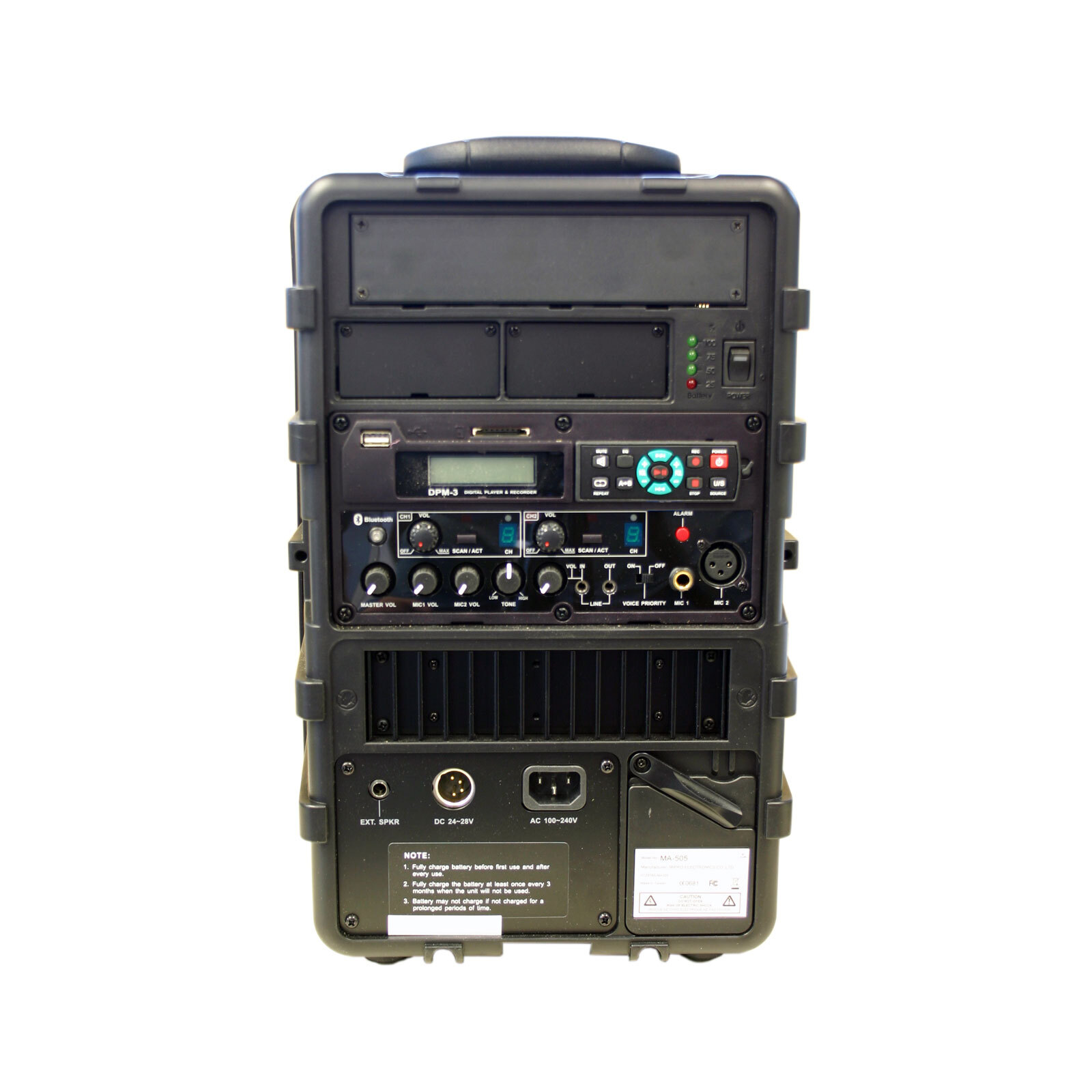

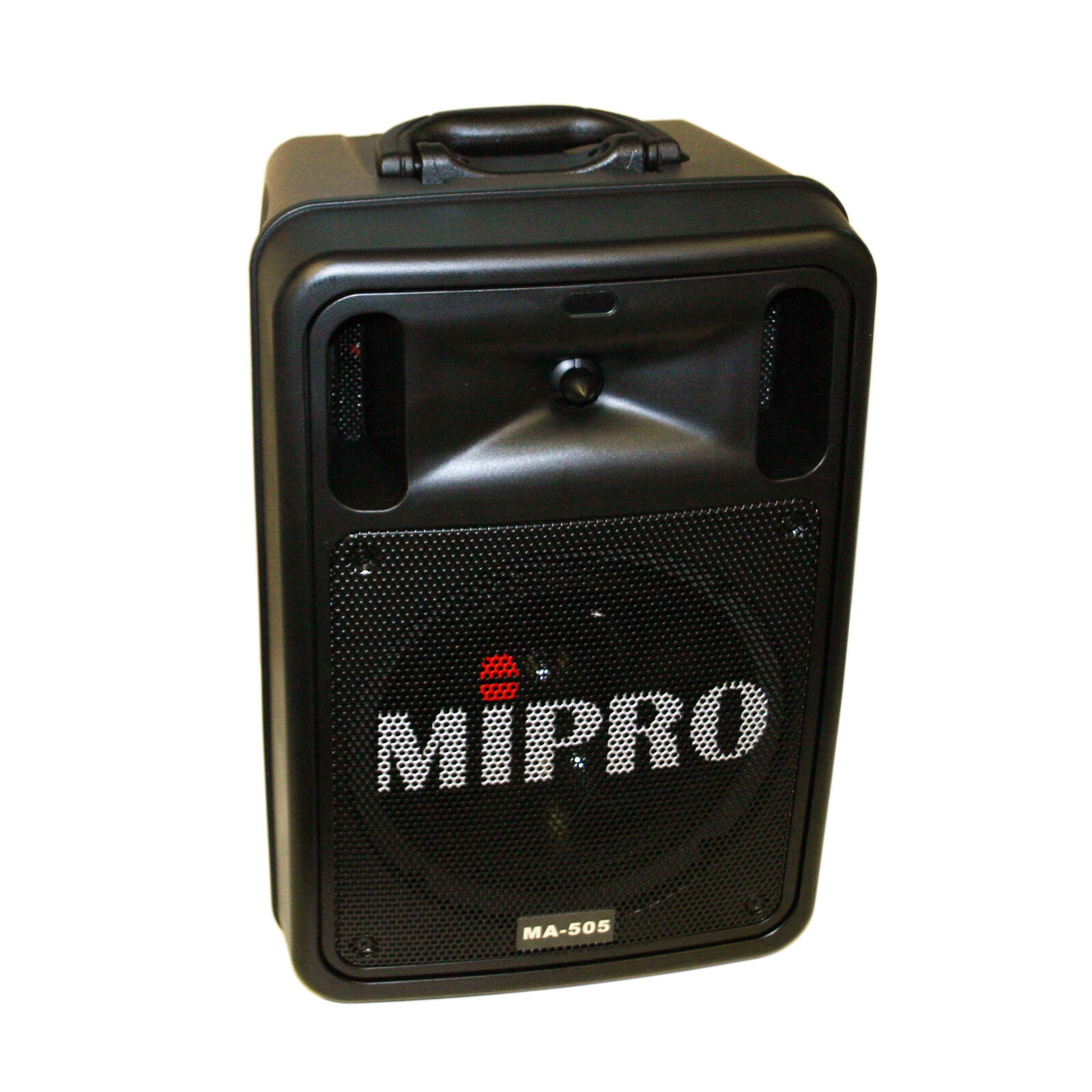

Mipro MA505 Portable Battery PA System with 2x Wireless Lapel Microphones & Media Player/Recorder

The Mirro MA-505 delivers unparalleled audio performance and craftsmanship. The rugged one-piece speaker cabinet houses a high efficient class-D amplifier that drives high sensitivity two-way loudspeakers and limiter circuitry reduces distortion and increases intelligibility for guaranteed powerful and clear sound.

Complete with 2 x Wireless Receivers 5NB frequency set (520-544MHz ), 2 x Wireless Lavalier Microphones, Bluetooth connection and In-Built Digital Player/Recorder.

It offers an ideal public address solution for medium crowds.

Ideal Applications :

• School classrooms & halls
• Places of worship
• Presentations, seminars and meetings
• Day-care activities; playground duty
• Indoor/outdoor gatherings
• Weddings & funeral services
• Shopping center & trade show presentations and promotions
• Street performers
• Aerobic and fitness centers
• Recreational and social activities

Features :

• 145-watt power of loud and clear sound via high efficient class-D amplifier.
• Rugged one-piece molded enclosure houses 1 " titanium compression driver & 8 " woofer.
• Powerful and crystal-clear sound projection.
• Wireless receiver with 16 auto-scannable frequencies.
• One-touch Scan & ACT sync button for fast and easy channel set-up.
• Built-in Bluetooth music player for wireless audio streaming.
• A voice priority feature that mutes the music when wireless microphone is used.
• Built-in one-button alarm/siren for warning of threats.
• Built-in AC switching power supply for universal usage and fast battery charge.
• A smart 4-segment battery meter for accurate battery reading and charging status.
• Built-in cable storage compartment.
• AC and lithium rechargeable battery operation.
• Up to 8 hours of stand-by time per 4-hour full charge.
• Built-in Audio Player/Recorder : DPM-3, MP3 player/recorder for USB and SD card.

Technical :

• Power Output : 100W(rms) 4ohm, 145W(max) 4ohm
• Amplifier : Class D
• Sensitivity : Typical - 91 dB, Maximum - 109 dB
• T.H.D. : < 1%
• Frequency Response : 50 Hz~18 kHz
• Speakers : Tweeter - 1 " Tweeter, Bass - 8 " Woofer
• Coverage : H 130 deg. x V 90 deg.
• Audio Inputs :
  • Wired : XLR balanced & unbalanced 6.3 mm (1/4 ")
  • Wireless : Up to 4. 2 Built-in & 2 External
  • Line-In : 3.5 mm (1/8 ") mini-jack
  • Bluetooth Connectivity : Yes
• Audio Output : 3.5 mm (1/8 ") mini-jack
• Extension Speaker : Unbalanced 6.3 mm (1/4 ") jack
• Volume : Individual volume control
• Functions : VOP, Tone control, Alarm Siren Siren sound with fade-in mode
• Storage : For AC power cable
• Power Supply :
  • AC :
    • Built-in 100~240V AC switching power supply (Max. Power Consumption: 165W)
  • DC & Battery :
    • External DC connector.
    • Built-in 22.2V/4.5AH rechargeable lithium (MB-35 x 1)
      • Charge Time : Up to 4 hours (automatic charging management)
      • Standby Time : Up to 8 hours
      • Battery Indicator : 4-level LED indicator (25/50/75/100%)
• Color : Black
• Dimensions : (W × H × D) 285 × 400 × 225 mm
• Weight (battery included) : Approx. 8.5 kg
• Wireless System :
  • Built-in Fixed Receiver 1 or 2 Scan & ACT sync
  • Frequency Set : 520-544MHz
  • Preset Channels & Bandwidth : 16 preset channels in 24 MHz frequency bandwidth.
  • Antenna : Built-in proprietary active high efficiency antenna ​

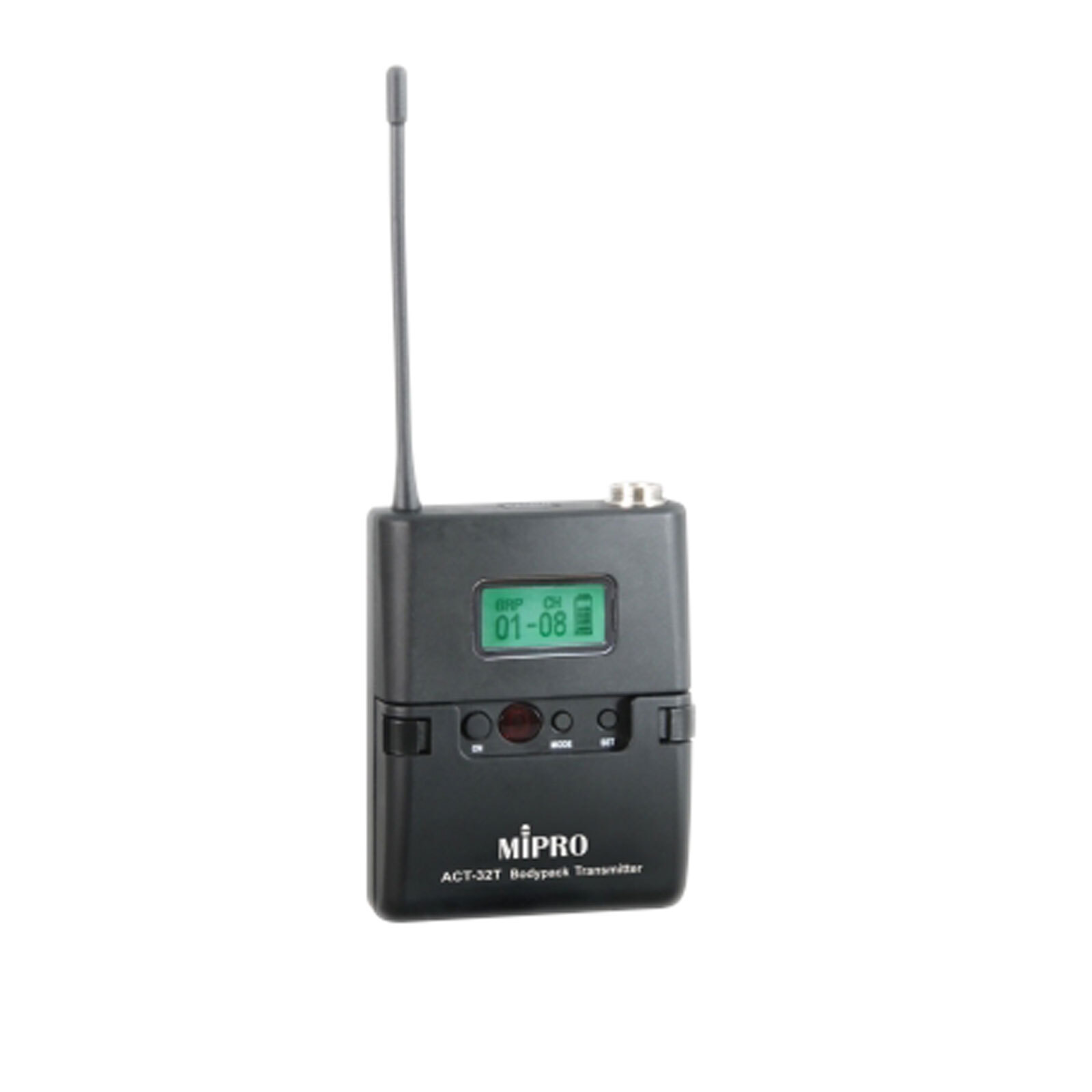

Mipro ACT-32T Bodypack Transmitter - frequency set 5NB (520~544MHz). Suitable for Mipro portable PA systems.

Features :

• Ultra slim bodypack transmitter.
• On-the-top features include mute button, mini-XLR connector and antenna.
• Backlit LCD displays all operational parameter information.
• World’s first ACT™ function provides precise and rapid frequency sync to the receiver.
• Innovatively designed battery cover allows easy access to operate buttons and prevents accidental operation.
• Mute button with remote-control jack for easy activation of mute function.
• Selectable impedance for microphone or guitar / line inputs. Five selectable gain settings with Auto Limiter to prevent distortion.
• Mini-XLR input with secure screw lock connector.
• Adjustable belt clip allows wearing transmitter in up or down position.

Technical :

• Housing : Black rugged plastic
• Display : Backlit LCD displays all operational parameter information.
• Frequency Range : UHF 520~544MHz
• Bandwidth : 24 MHz
• Deviation : < ± 40 kHz
• Spurious Emissions : < -55 dBc
• Gain : 0 dBV
• Dimensions (W×H×D) : 63 × 82 × 22 mm
• Net Weight Approx. : 83 g
• Battery : 2 × AA alkaline
• Operating Time : Min. 12 hours

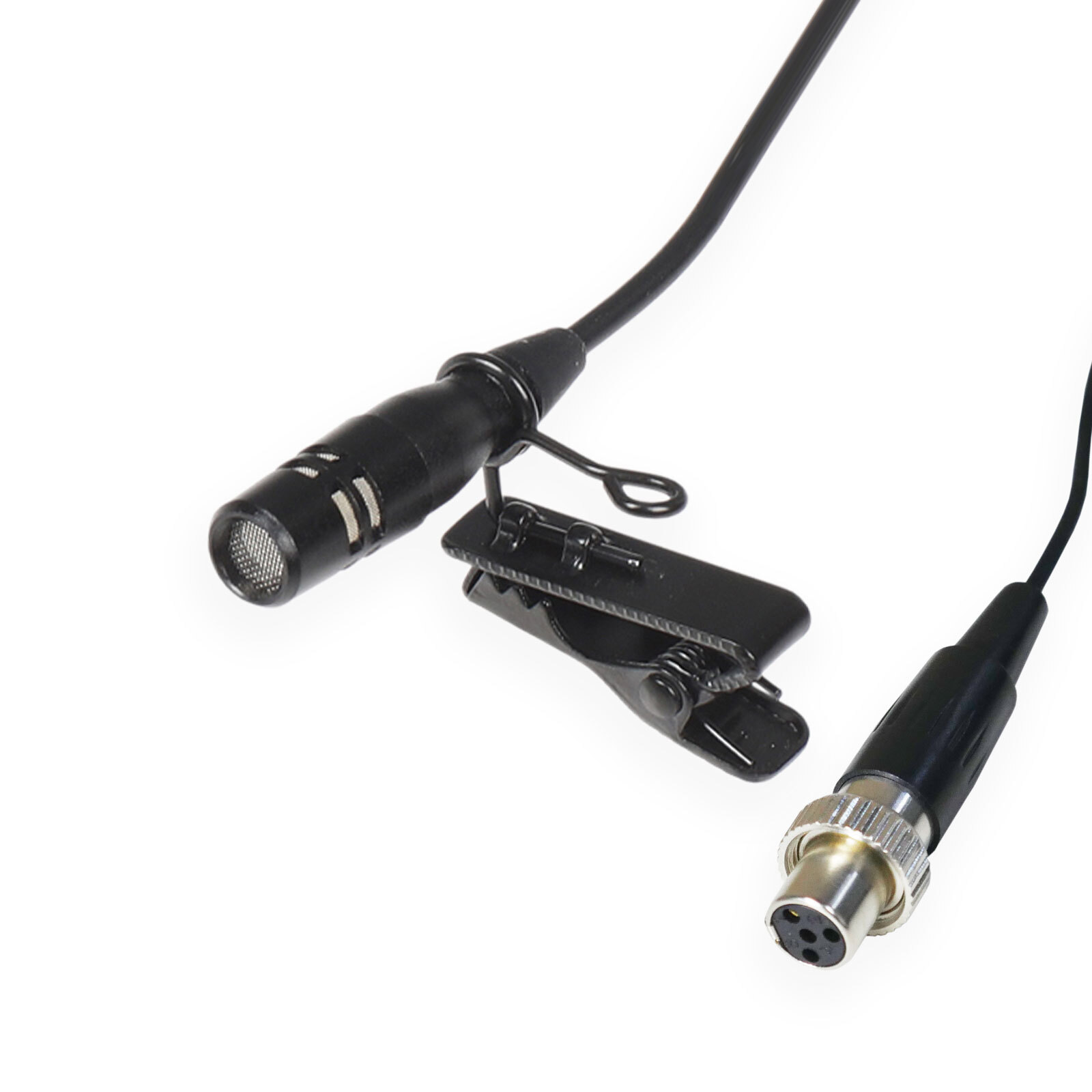

BravoPro Lavalier Microphone to suit Mipro systems.

Mini lavalier condenser microphone with unidirectional pickup pattern and wide frequency response provides clean and transparent sound quality.

With a tiny capsule design, it is ideally suited for applications that require minimal visual impact.

• 6mm Capsule
• Frequency Response : 60~20000Hz
• Cable :1.2M
• TA4F (MIPRO) connecton for Mipro wireless systems
• Black
