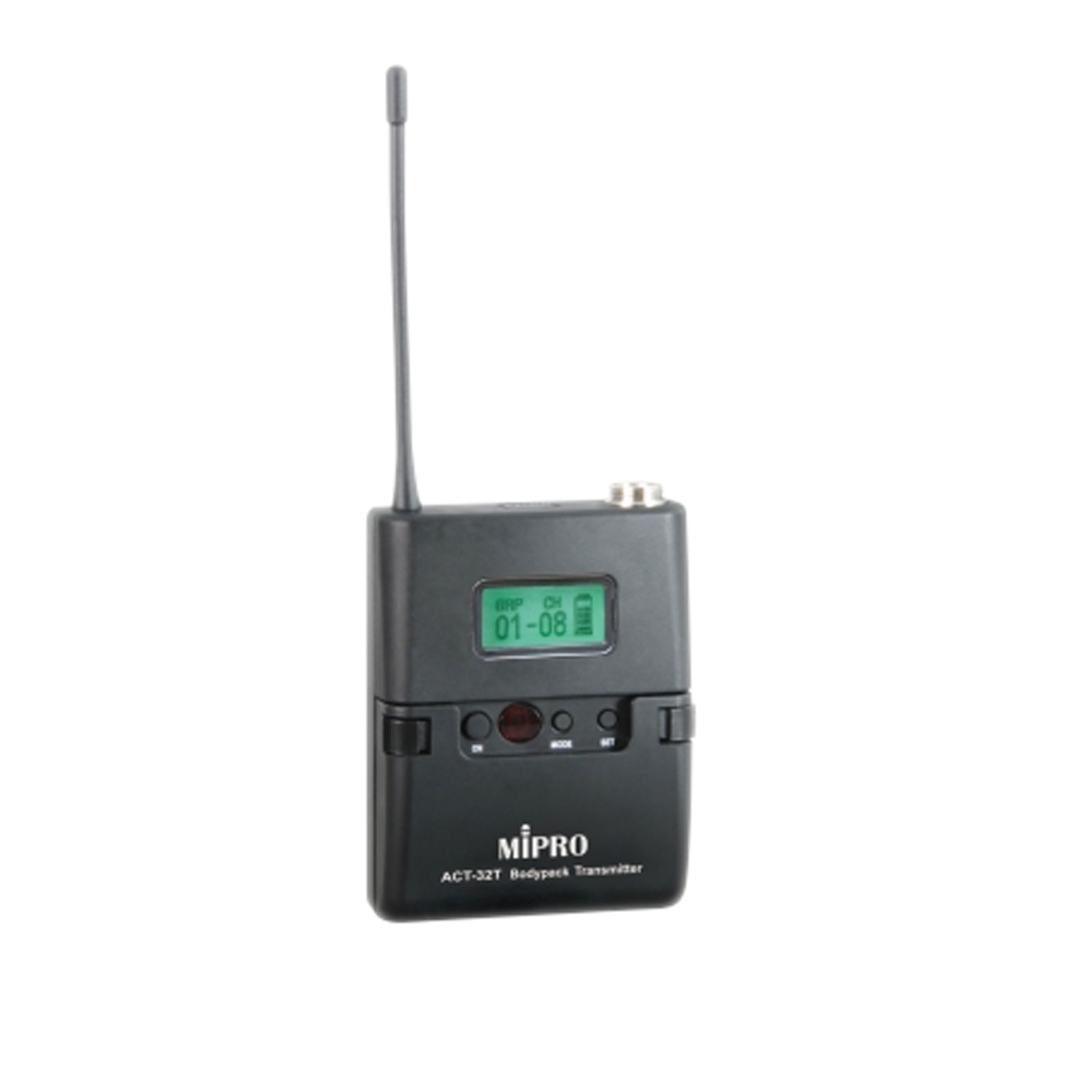

Mipro ACT32T Beltpack Transmitter - 5NB Frequency

ACT-32T Bodypack Transmitter - frequency set 5NB (520~544MHz). Suitable for Mipro portable PA systems, transmitter ONLY no microphone.

Features :

• Ultra slim bodypack transmitter.
• On-the-top features include mute button, mini-XLR connector and antenna.
• Backlit LCD displays all operational parameter information.
• World’s first ACT™ function provides precise and rapid frequency sync to the receiver.
• Innovatively designed battery cover allows easy access to operate buttons and prevents accidental operation.
• Mute button with remote-control jack for easy activation of mute function.
• Selectable impedance for microphone or guitar / line inputs. Five selectable gain settings with Auto Limiter to prevent distortion.
• Mini-XLR input with secure screw lock connector.
• Adjustable belt clip allows wearing transmitter in up or down position.

Technical :

• Housing : Black rugged plastic
• Display : Backlit LCD displays all operational parameter information.
• Frequency Range : UHF 520~544MHz
• Bandwidth : 24 MHz
• Deviation : < ± 40 kHz
• Spurious Emissions : < -55 dBc
• Gain : 0 dBV
• Dimensions (W×H×D) : 63 × 82 × 22 mm
• Net Weight Approx. : 83 g
• Battery : 2 × AA alkaline
• Operating Time : Min. 12 hours
