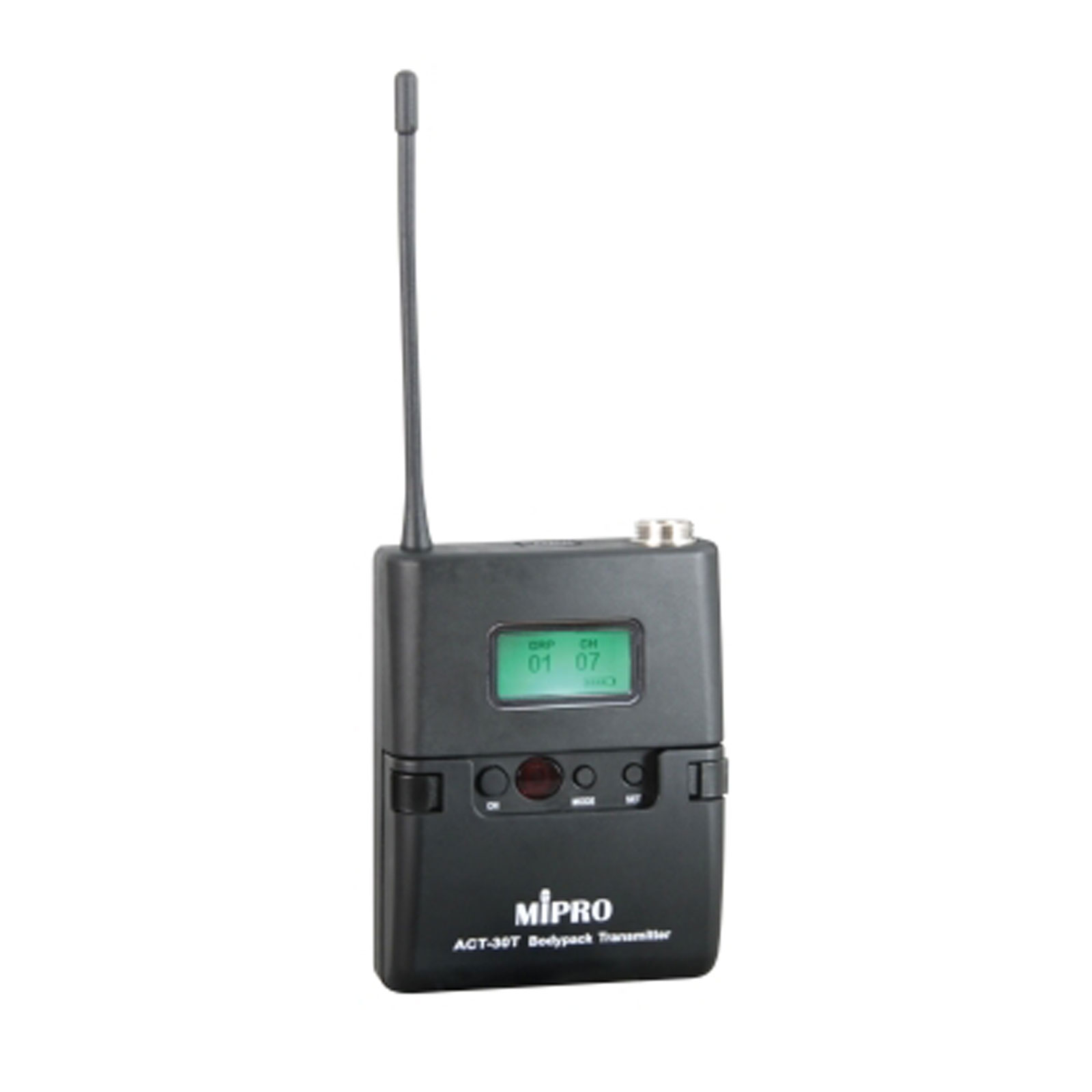

Mipro ACT30T Beltpack Transmitter - 6B frequency

ACT-30T Bodypack Transmitter - frequency set 6B (626-668MHz). Suitable for Mipro portable PA systems.

ACT-30T features :

• Miniature, compact design.
• Top features mute switch, mini-XLR connector and antenna.
• Backlit LCD displays various parameters and indicators.
• Unique battery cover design provides easy access to operational controls and protects against accidental change of settings.
• Low spurious PLL-synthesized technology enhances frequency stability and reliability.
• One-touch ACT syncs the transmitter and receiver frequency automatically.
• Selectable impedance for microphone or guitar/line inputs.
• 4-pin mini XLR connector is compatible with all MIPRO lavalier, headworn microphones and instrument cable.
• Highly efficient power consumption circuitry ensures long operating hours from 2 AA batteries.
• Adjustable belt clip allows wearing transmitter in up or down position.

Specifications :

• Housing : Rugged Plastic
• Frequency Range : UHF 626~668MHz
• Bandwidth : 24MHz
• Oscillation Mode : PLL Synthesized
• Channel Set-Up : ACT Sync
• LCD Display : LCD displays working band-code, group, channel, frequency, AF input gain, RF output power, mute & lock status, battery status and error codes.
• Spurious Emissions : <-55dBc
• Max. Input Level : 0dBV
• Battery : 2 AA alkaline
• Dimensions : 63(W)×82(H)x22(D)mm
• Weight : Approx. 81g (excluding batteries)
