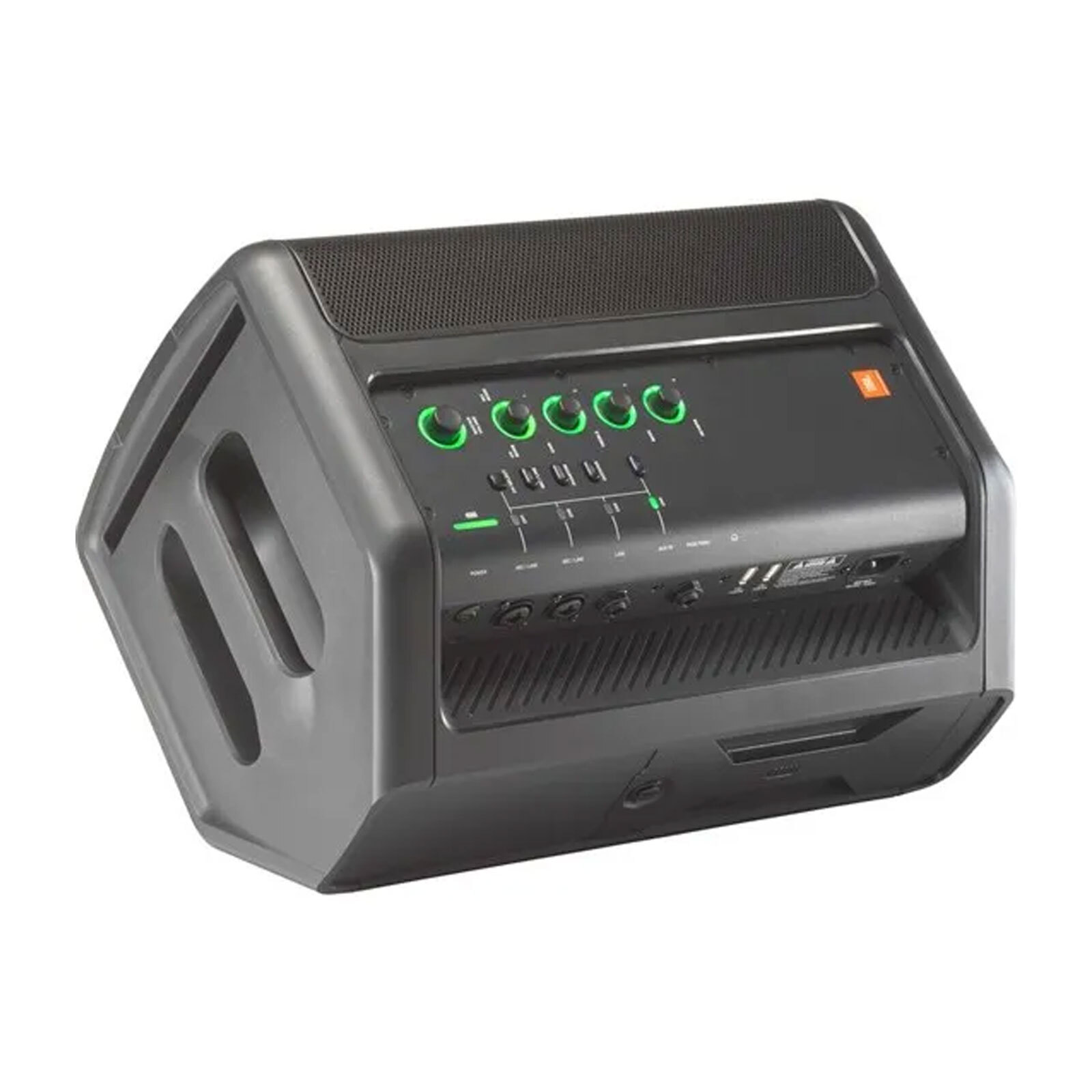

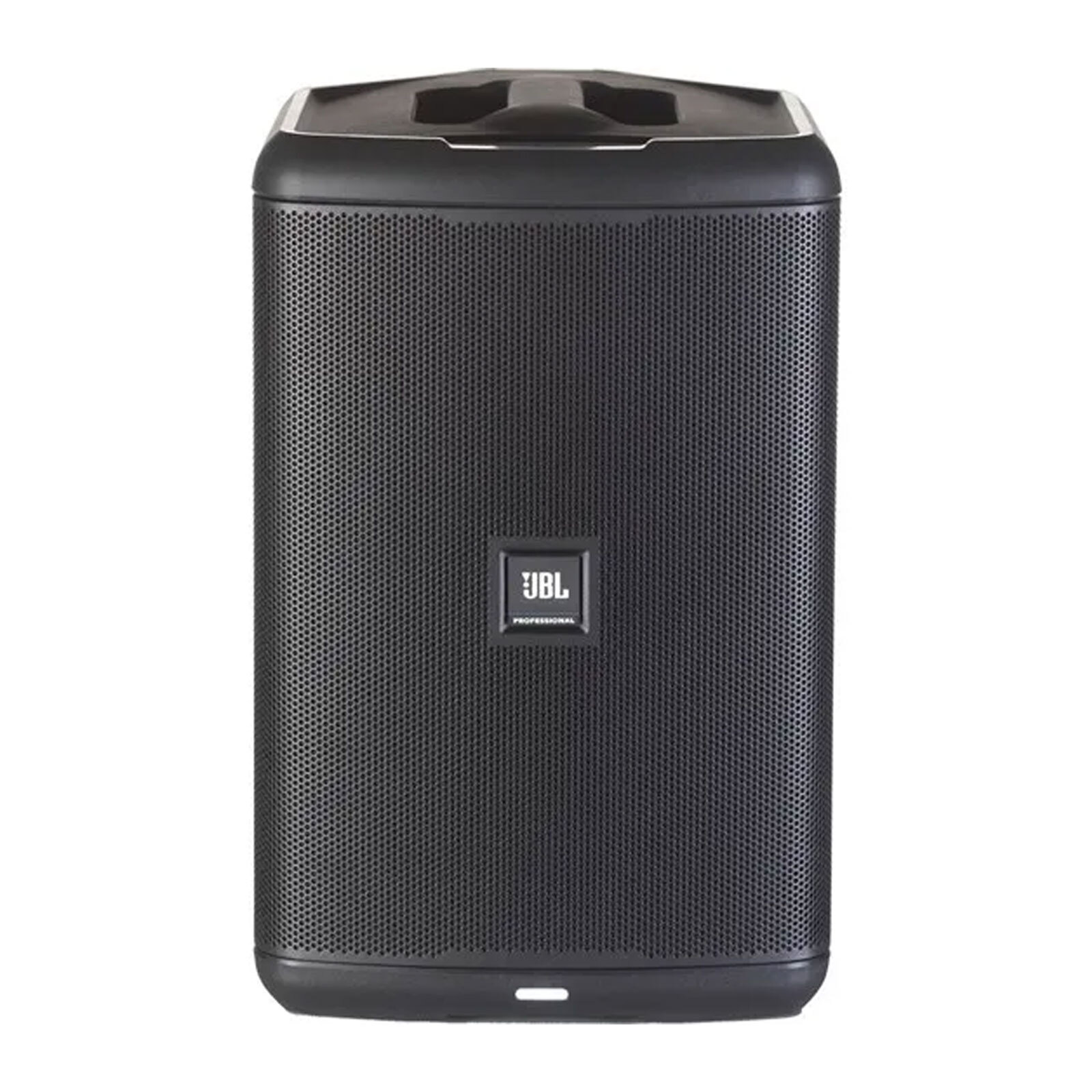

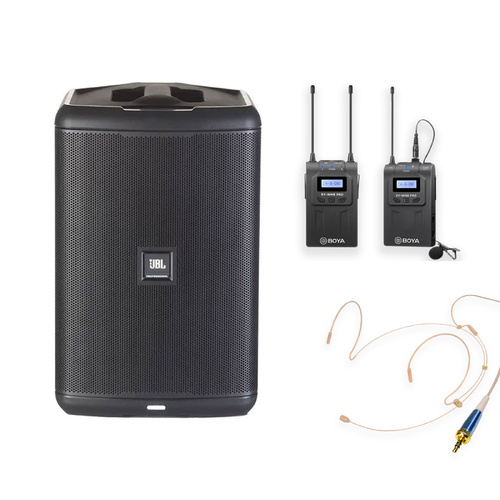

JBL EON ONE Compact Battery Powered PA System with Wireless Headworn Microphone

The JBL EON ONE Compact packs a professional-grade loudspeaker, a full-featured 4-channel digital mixer and Bluetooth audio streaming and control into our most compact battery-powered PA yet, weighing in at 8Kg.

Quickly and effortlessly get great sound with the integrated premium effects and presets that can be customized right from a phone or tablet using the JBL Compact Connect app.

Presenters, fitness instructors and emcees will appreciate EON ONE Compact’s ducking feature, which lowers background music volume when speech input is detected. Broadcast music playback over Bluetooth to up to 4 EON ONE Compact speakers, or expand the system using the pass thru output jack.

Get amazing sounds fast with Lexicon and dbx inspired effects and presets. Whether you’re a singer-songwriter, DJ, presenter, fitness instructor, or you just want to enjoy amazing sound on the go, the JBL EON ONE Compact delivers big sound in a highly portable package.

Features:

• 112 dB output—the highest volume in its class
• 8-inch woofer with deep low-frequency performance down to 37.5 Hz
• Ultralight unit weighs just 8 kg
• Set up quickly and easily using JBL Compact Connect app presets
• Sound your best with professional effects including EQ, reverb, chorus and delay

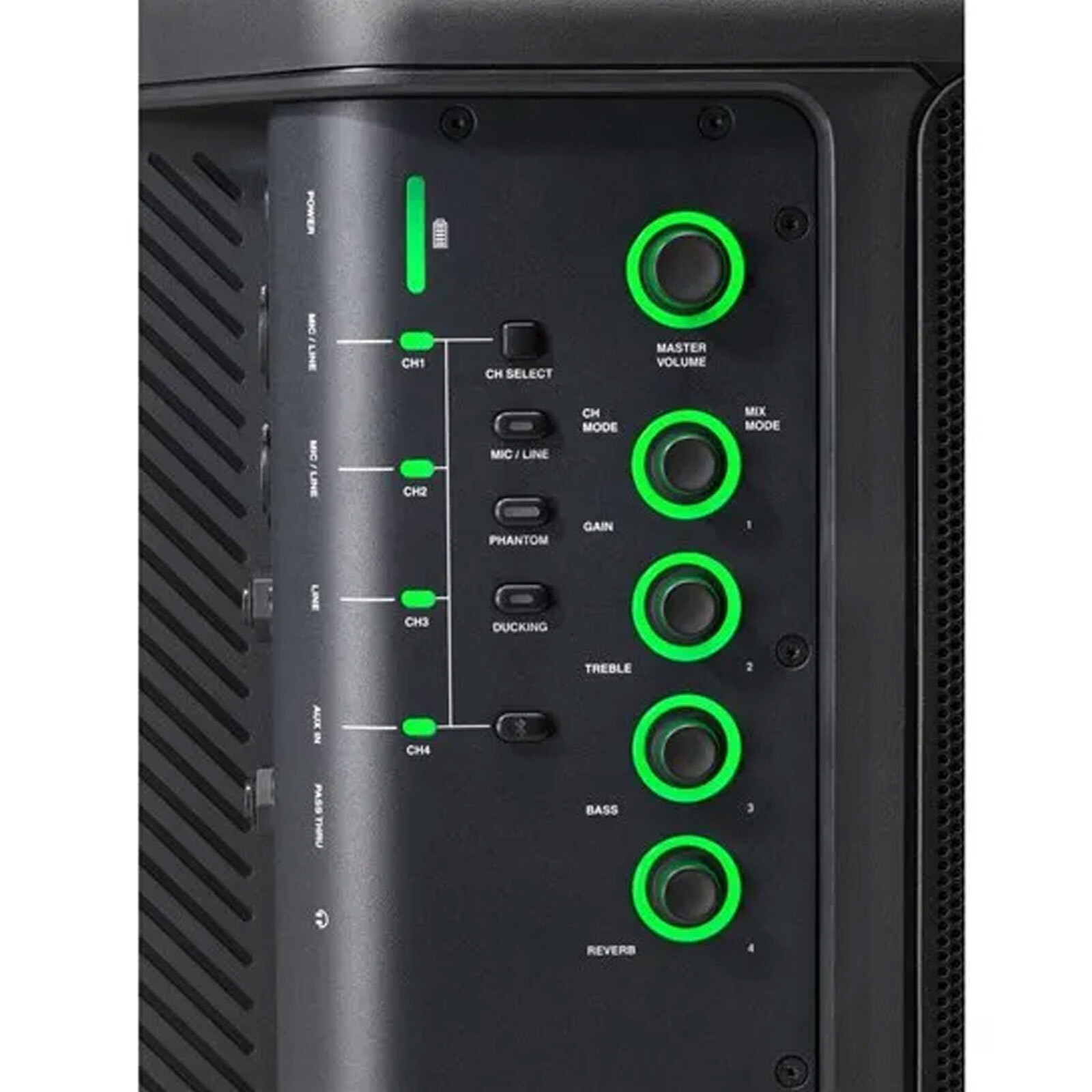

• Balance your volume levels with built-in 4-channel mixer
• Optimize your sound with 8-band output EQ, customizable via presets
• Stream music from your phone or tablet via Bluetooth to up to four EON One Compact units
• Operate two EON ONE Compact units in stereo mode
• Two pro-grade preamps deliver fuller, richer sound from any microphone
• Connect mics, instruments and playback devices with two XLR/TRS combo jacks, one 1/4-inch hi-Z guitar input and one 1/8-inch (3.5mm) aux input
• Phantom power supports condenser mics
• One-touch ducking feature automatically lowers music volume when speech input is detected, ensuring every word is heard clearly
• Two USB 3.0 ports allow high-speed charging of external devices
• Tool-free, swappable battery provides up to 12 hours of playtime
• Fast battery charging—just 2.5 hours
• Two performance orientations: monitor and vertical; tuning and mixer displays automatically adjust
• Headphone jack allows private monitoring for practice sessions and managing presets
• 1/4-inch pass thru output allows system expansion with additional EON ONE Compact units
• Convenient, built-in tilting tablet stand orients to front or back of system
• Built-in pole mount expands configuration options
• External battery charger option available separately
• Ergonomic handle and even weight distribution make carrying the system a breeze

Technical:

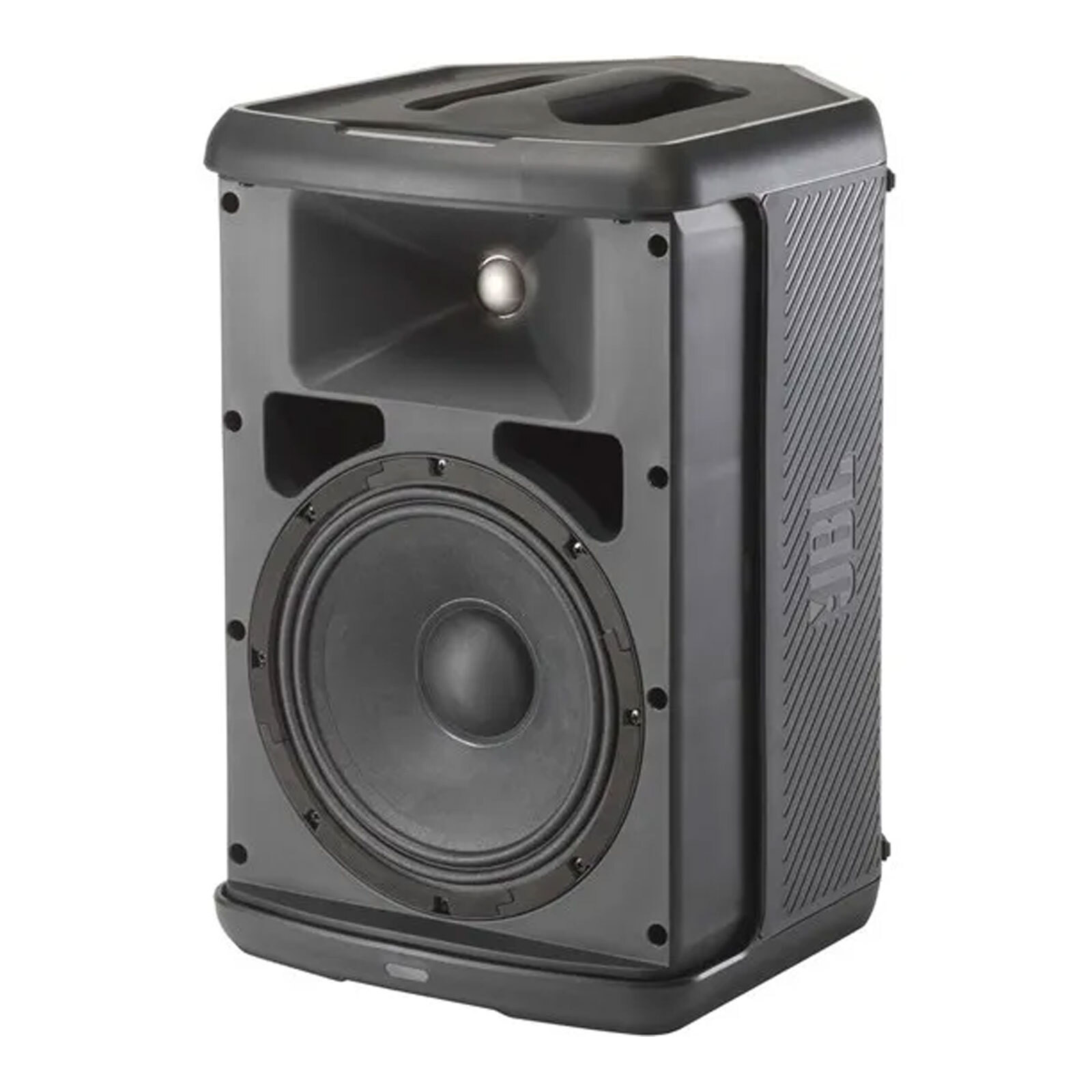

• System Type: Self-powered, two-way, 8” woofer, 1” tweeter
• Sensitivity (SPL): 112 dB
• Frequency Response: 37.5 Hz – 20 kHz
• Power Rating: 150W peak
• Coverage Pattern: 100° x 60°
• Inputs: 2x XLR/TRS combo jacks, 1x 1/4” Hi-Z, 1x 1/8” aux
• Outputs: 1x 1/8” headphone, 1x 1/4” pass thru
• Mixer: 4 channels
• Effects: Reverb, delay, chorus
• Bluetooth: Audio streaming and full control; range: 10m
• USB: 2x external charging ports: port 1 = 5V, 2A; port 2 = 5V, 1A
• Battery Charge Time: 2.5 hours with no signal, 6 hours with signal
• Battery Life: Up to 12 hours
• Weight: 8 kg
• Dimensions: (L X W X H): 291 x 255 x 399 mm

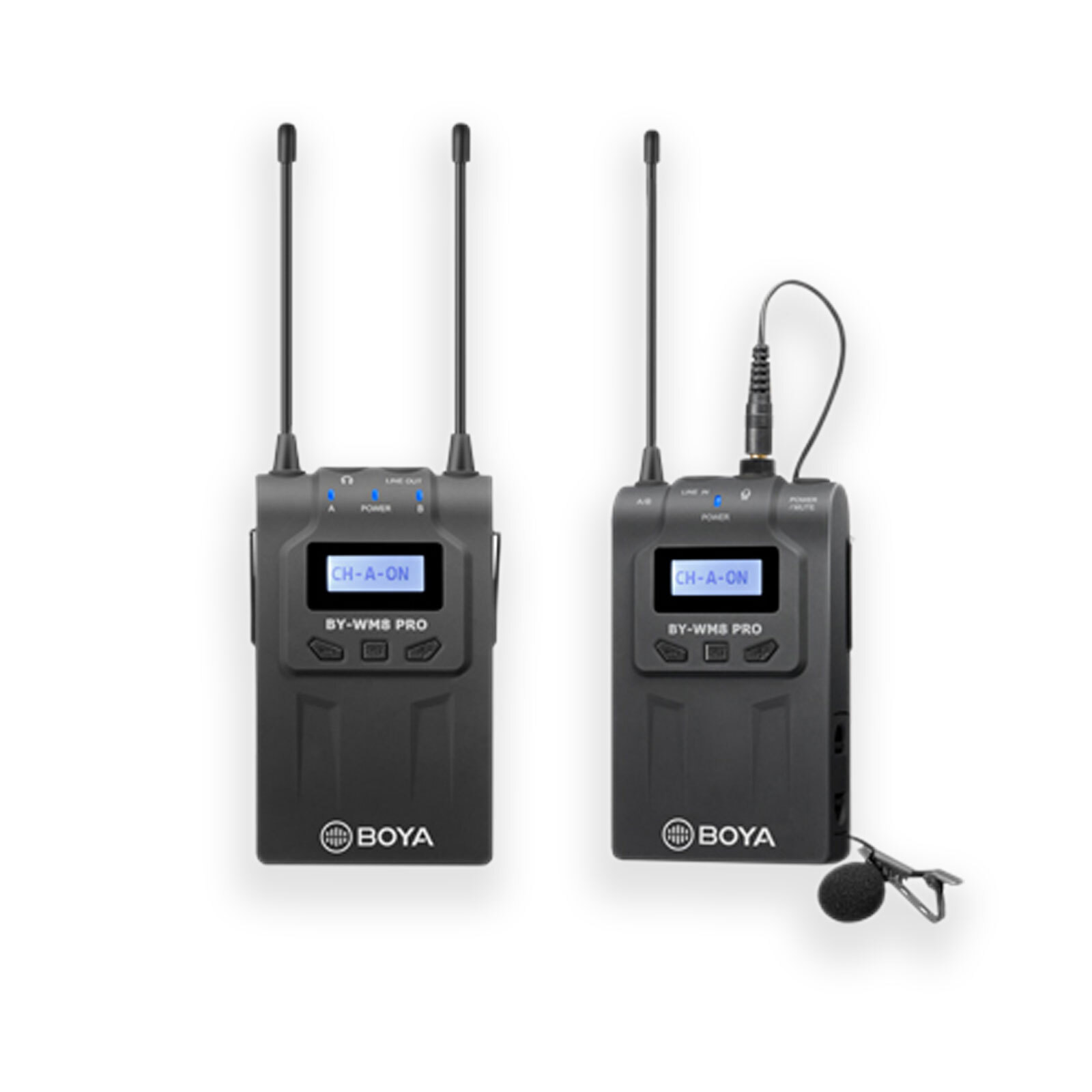

The BOYA BY-WM8 Pro is upgraded addition of UHF Dual-Channel Wireless Microphone System and can be used to capture audio for live sound, ENG, broadcast and film, talk shows, conferences and more.

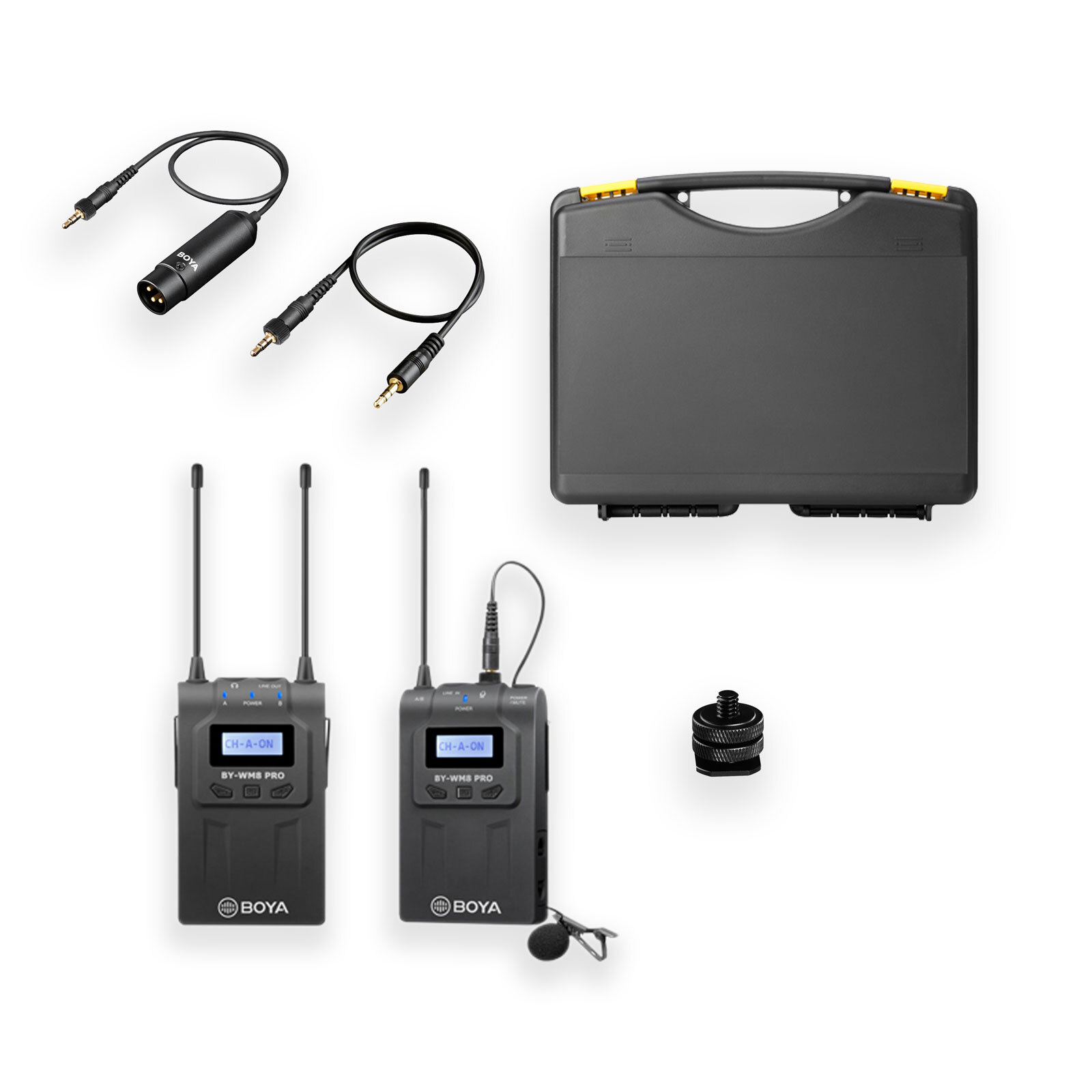

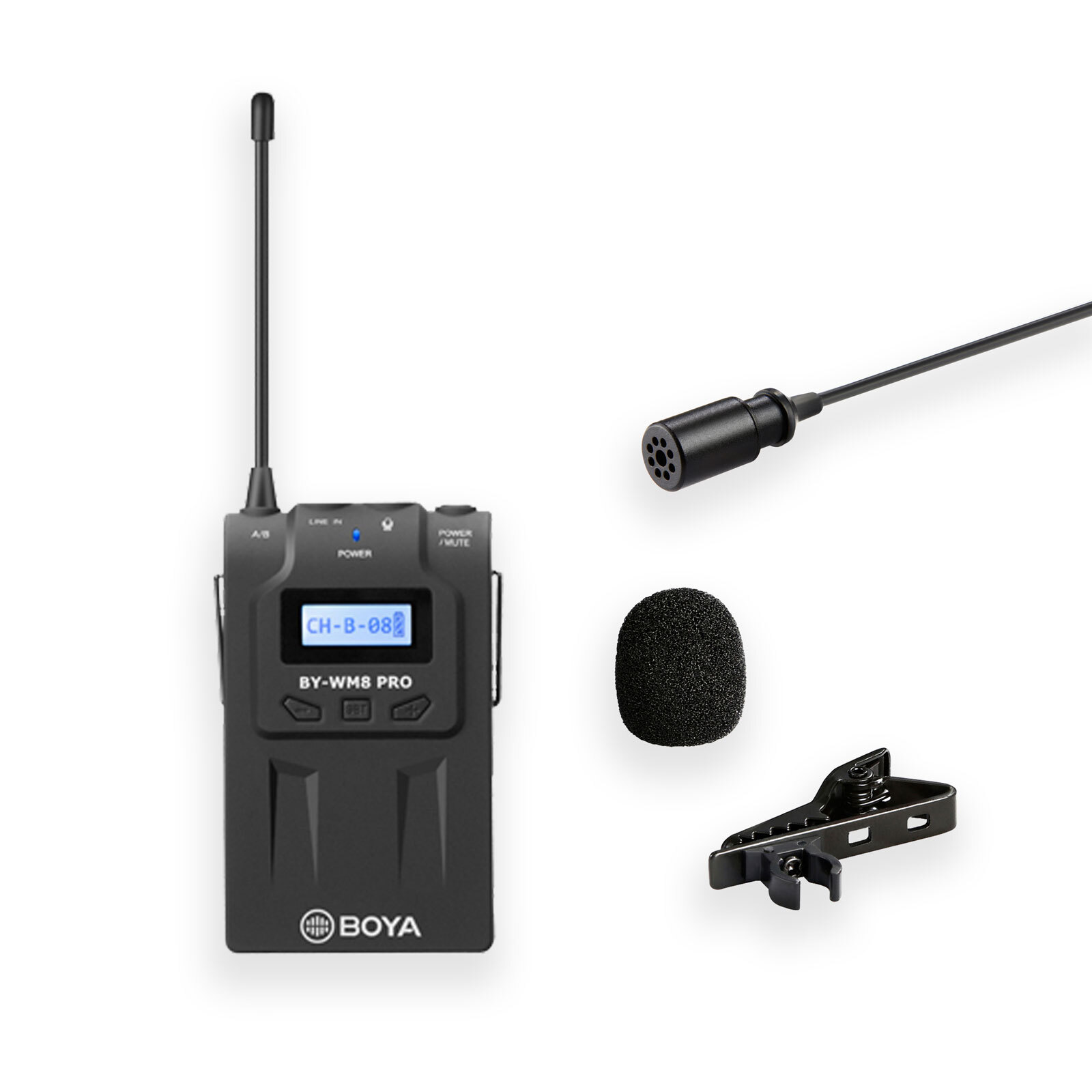

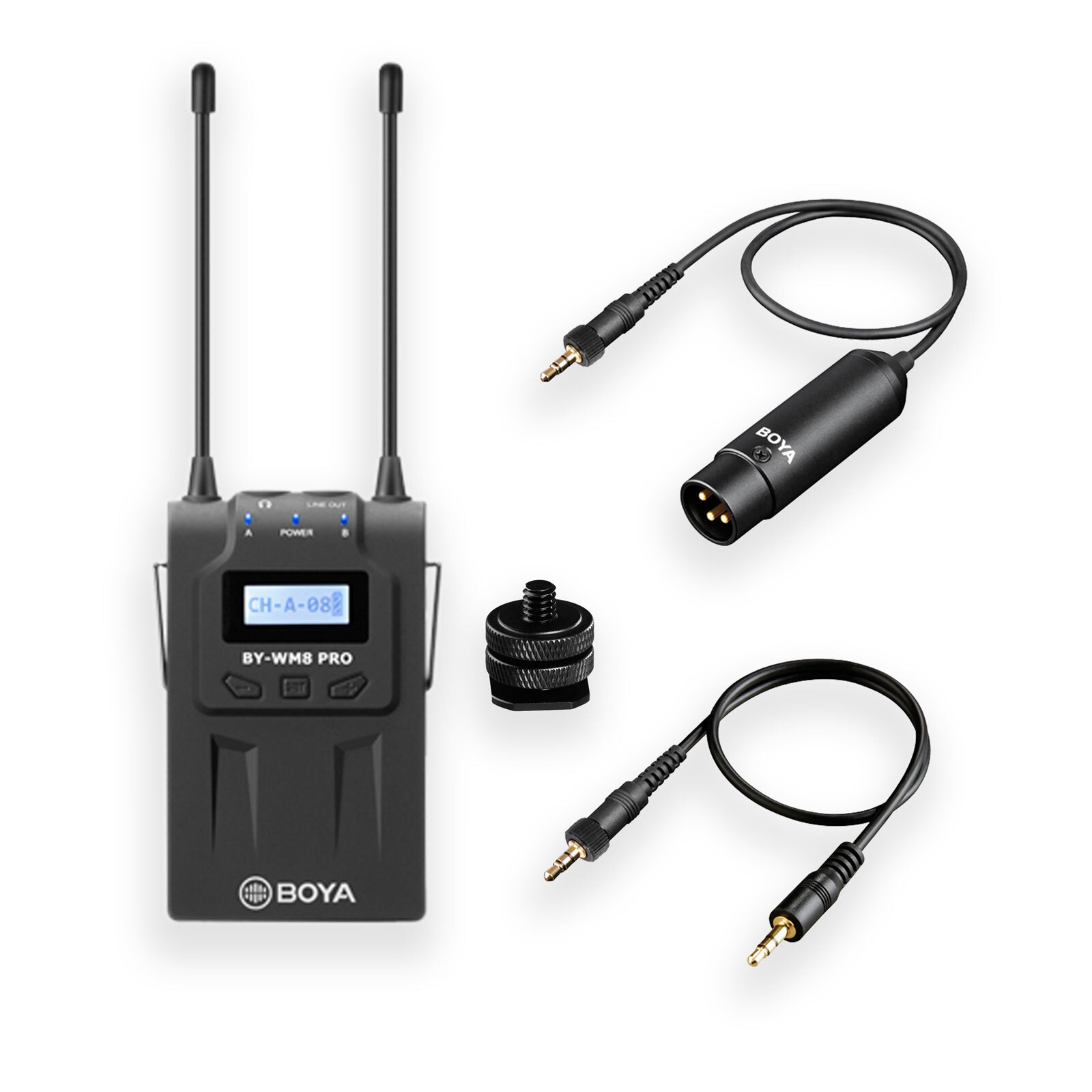

The BY-WM8 Pro-K1 system consists of a bodypack transmitter, a camera-mount receiver, and an omnidirectional lavalier microphone. Also included with this system is a shoe-mount adapter, a single 1/8" to XLR output cable, a single 1/8 to 1/8" output cable and carrying case.



The camera-mountable receiver features a wide-switching RF bandwidth, an easy-to-read LCD display and a 3.5mm headphone jack for real-time monitoring. And the bodypack transmitter is equipped with a crystal-controlled PLL synthesizer, a muting function, a 1/8" mic input and a 1/8" line-in jack.


• Consists of One Transmitter and One Receiver
• Dual-Channel Wireless Receiver
• Digital Companding Circuitry

• Auto-Lock function avoids accidental changing of settings

• Monitoring of receiver via headphones directly
• One Mic input and one Line Input for transmitter
• UHF transmission with 48UHF channels
• Broadcast-Quality Sound
• Operation range can reach up to 100m
• Adjustable MONO and Stereo mode
• Powered by 2 x AA batteries for both transmitter and receiver

Technical :

• Oscillator type :  PLL Synthesized Control Oscillator
• Carrier Frequency Range :
  • 556.71 MHz-575.98 MHz (Transmitter: A )
  • 576.39 MHz-595.66MHz (Transmitter: B )
• Channels : 48
• Frequency response : 40 Hz to 18 kHz (+/-3dB)
• Operation range : 100m (without obstacle)
• Antenna : 1/4λ wire antenna
• Audio input connector : 3.5mm mini jack
• Signal to noise ratio : 70dB or more
• Distortion : 0.5% or less
• Headphone output level : 30mW (16Ω)
• Audio output level : -60dBV
• Power supply : Two AA size batteries
• Operation time : About 4 hours
• Dimensions :  208(H)  × 67(W) × 29(L)mm
• Weight : 90g without batteries

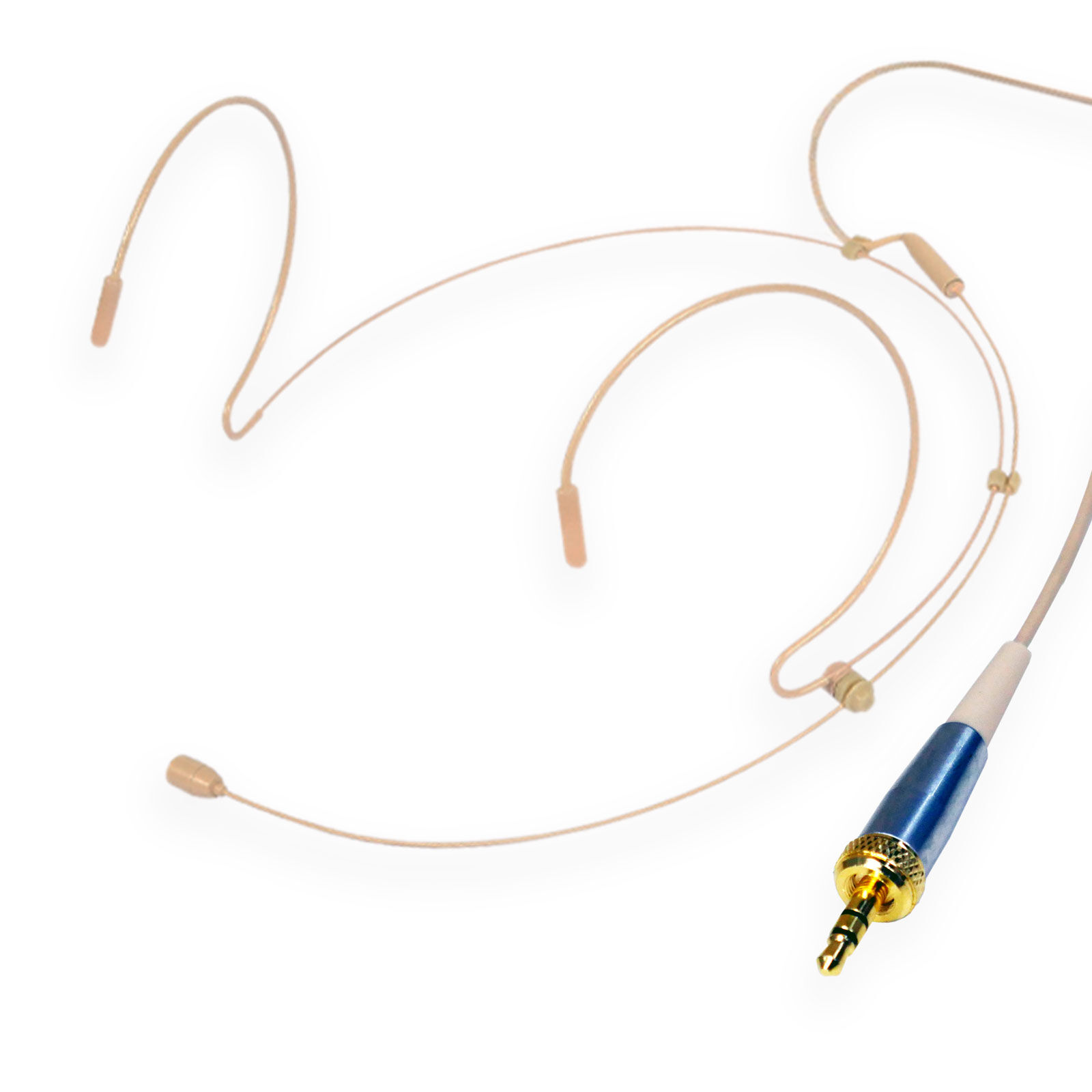

BravoPro Z-1810 is an omnidirectional condenser microphone with thick ear hook and mini capsule design, making it perfect for users to have low-profile appearance and long term wearing comfort. With clean sound and good concealment, it is ideally for situations where you require minimal visual impact.

Technical:

• Type: Condenser
• Cartridge Diameter: 4mm
• Polar Pattern: Omni-directional
• Sensitivity: 18mv/Pa (-45dB±3dB)
• Frequency Response: 100~20KHz
• Output Impedance: 1KΩ±30%
• Cable: 1.2M
