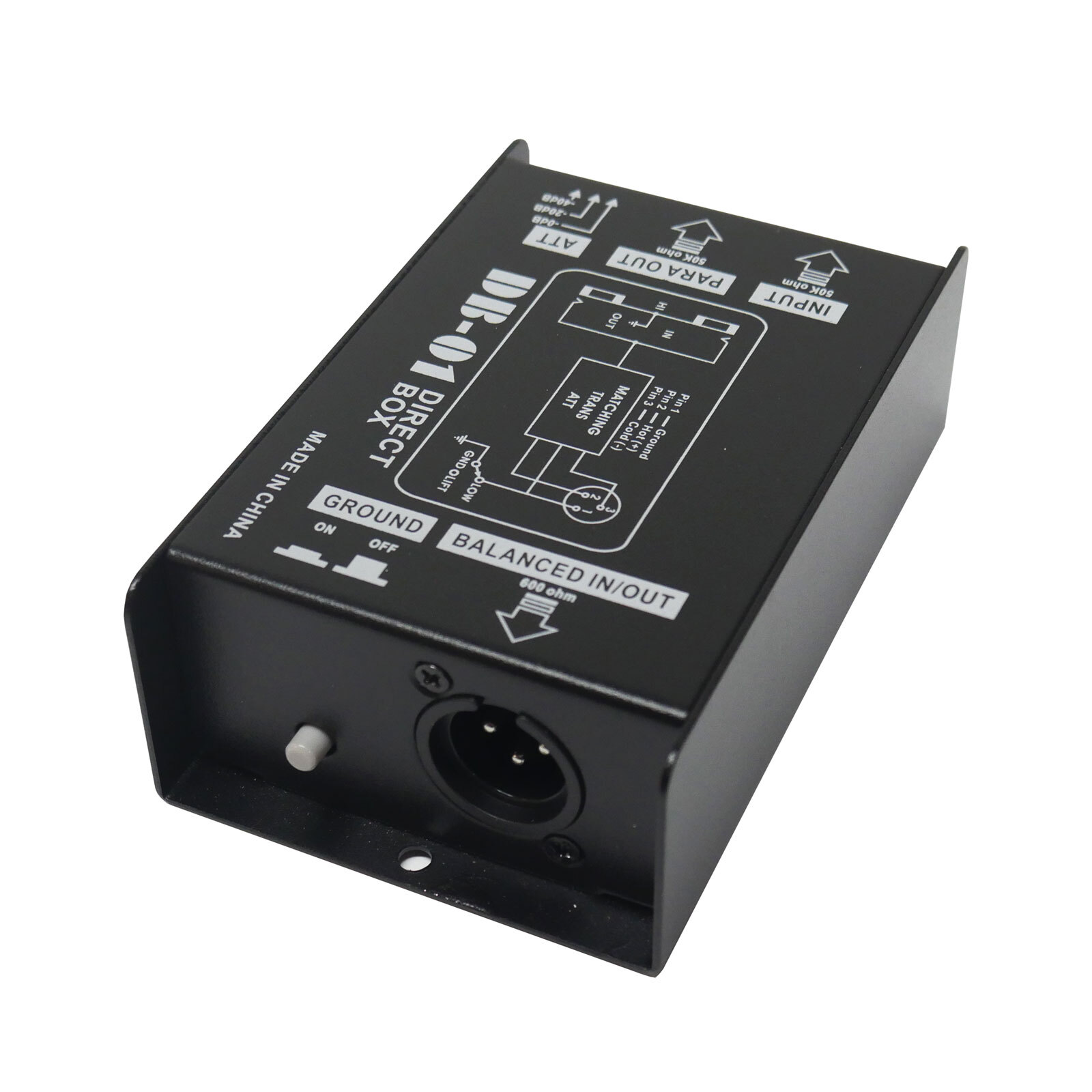

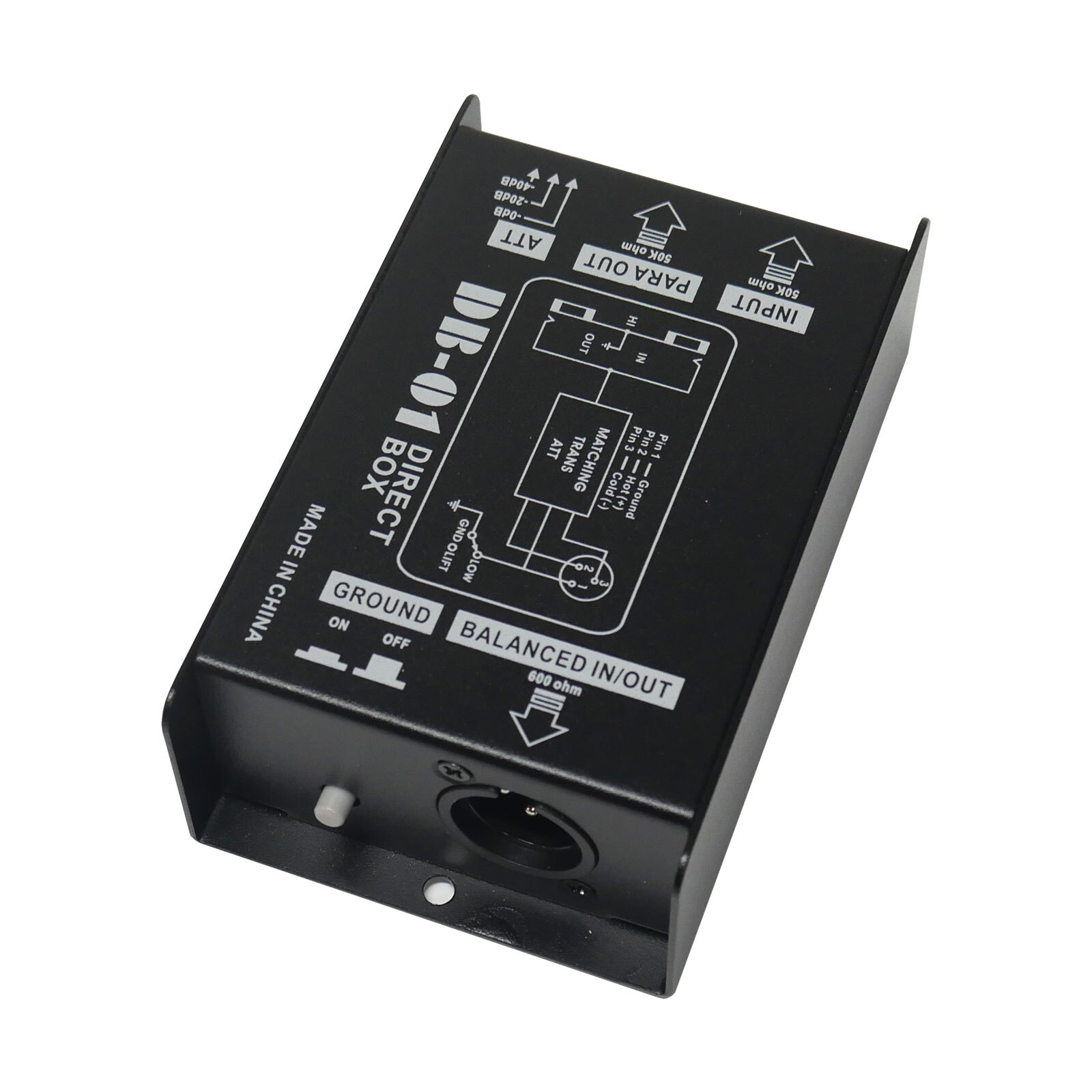

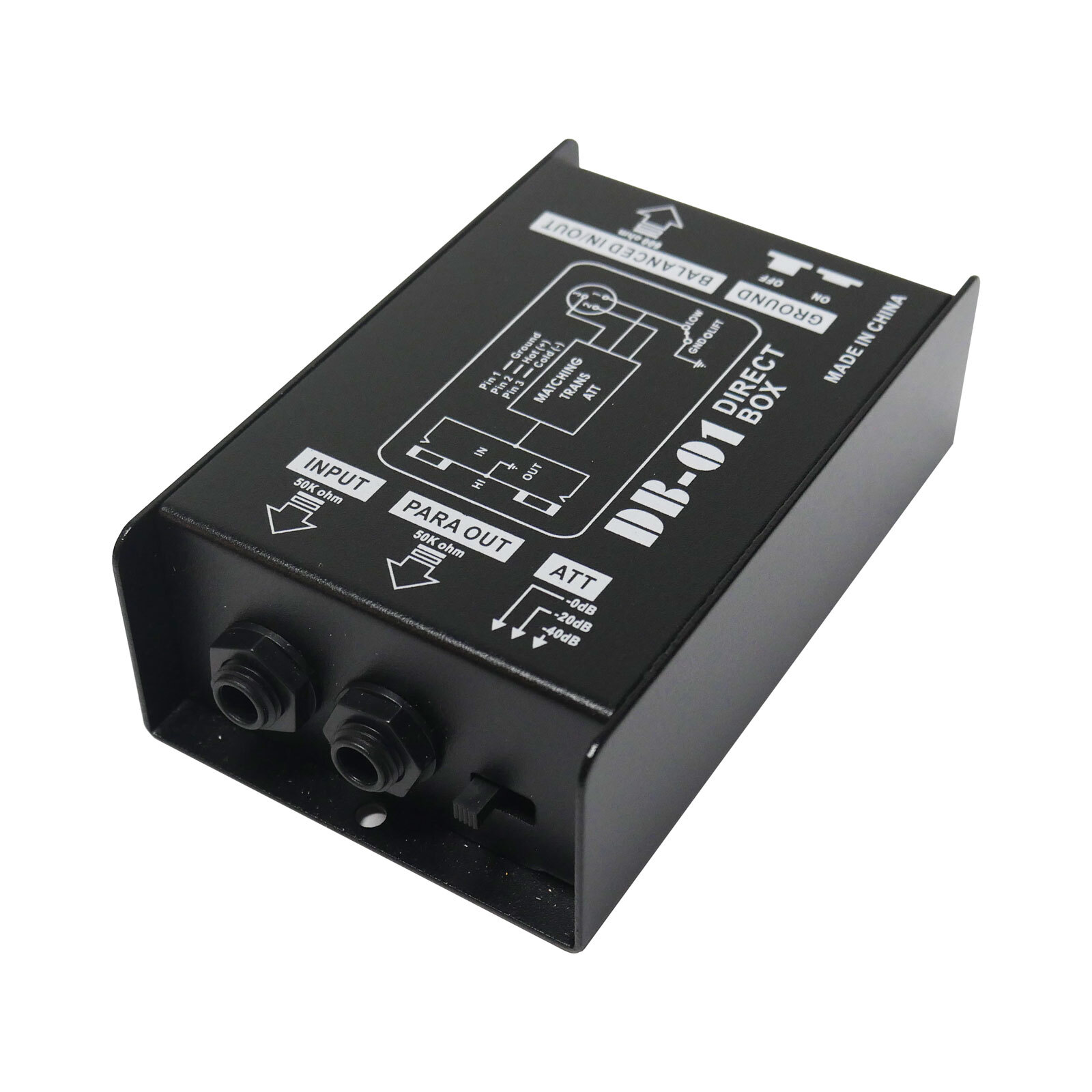

BravoPro DB-01 Passive Direct Box
$26.00
In Stock
Input Attenuation: Switchable (0db, -20db, -40db)
Ground Lift: Switchable ground lift
Construction: All steel chassis
BravoPro DB-01 Passive Direct Box enables the connection of any unbalanced audio source signal such as from an electric instrument or keyboard to any balanced input such as that of a mixer.
Translates high-impedance instrument outputs into low-impedance balanced signals or low-impedance balanced signals into unbalanced outputs.
Technical:
- Input Attenuation: Switchable (0db, -20db, -40db)
- Instrument Input: 50K Ω unbalanced TS jack
- Parallel (Link) Out: 50K Ω unbalanced TS jack
- Balanced Output: 600 Ω balanced 3pin male XLR
- Ground Lift: Switchable ground lift
- Construction: All steel chassis
- Dimensions: 121 x 76.2 x 40mm
- Weight: 400g.
(BRV-DB01)
| SKU | BRV-DB01 |
| Brand | BravoPro |
| Shipping Weight | 0.4400kg |
| Shipping Width | 0.080m |
| Shipping Height | 0.050m |
| Shipping Length | 0.170m |
| Shipping Cubic | 0.000680000m3 |
