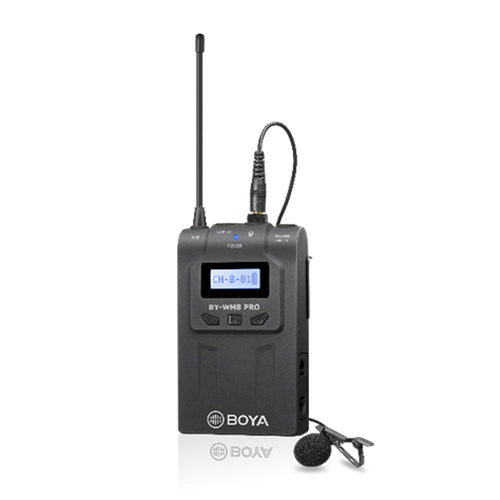

Boya WM8 TX8 Pro UHF Wireless Beltpack Transmitter with Lapel Microphone

The BOYA TX8 Pro is a Digital Wireless Bodypack Transmitter with Lavalier Microphone, compatible with RX8 Pro ( Receiver sold separately).

It features an easy to read LCD display, a wide switching RF bandwidth, one Mic input and one Line input, and digital circuitry, rugged lightweight plastic housing, and it’s suitable for DSLR cameras for videography, field recording, broadcast TV, and electronic news gathering (ENG) applications.



The unit features a MIC and LINE IN switch for standard wired microphone or line-level sources with adjustable attenuation. Comes with an omnidirectional electret condenser lavalier microphone,
 a windscreen for the microphone, a microphone holder clip, and a belt clip.


Features:

• UHF transmission with 48 channels
• A or B channel group for selection
• Equipped with a muting function
• OLED Display providing channel information, battery life


Technical:

• Oscillator type :  PLL Synthesized Control Oscillator
• Carrier Frequency Range :
  • 556.71 MHz-575.98 MHz (Transmitter: A )
  • 576.39 MHz-595.66MHz (Transmitter: B )
• Frequency response : 40 Hz to 18 kHz (+/-3dB)
• Operation range : 100m (300')(without obstacle)
• RF output power : ≤10mW
•  Antenna : 1/4λ wire antenna
• Spurious emission  : 250nW or less
• Audio input connector  : 3.5mm mini jack
• Reference Audio input level:   -60dBV(MIC input,0 dB attenuation)
• Reference deviation  : ±5kHz(-60 dBV,1 kHz input)
• Input frequency range  : 20Hz-20KHZ
• Distortion  : 0.5% or less
• Power supply : Two AA size batteries
• Operation time : About 6 hours
• Dimensions : 208(H)  × 67(W) × 29(L)mm
• Weight : 90g without batteries
