Boya WM8 Pro K1 UHF Camera Wireless System with Lapel Microphone

The BOYA BY-WM8 Pro is upgraded addition of UHF Dual-Channel Wireless Microphone System and can be used to capture audio for live sound, ENG, broadcast and film, talk shows, conferences and more.

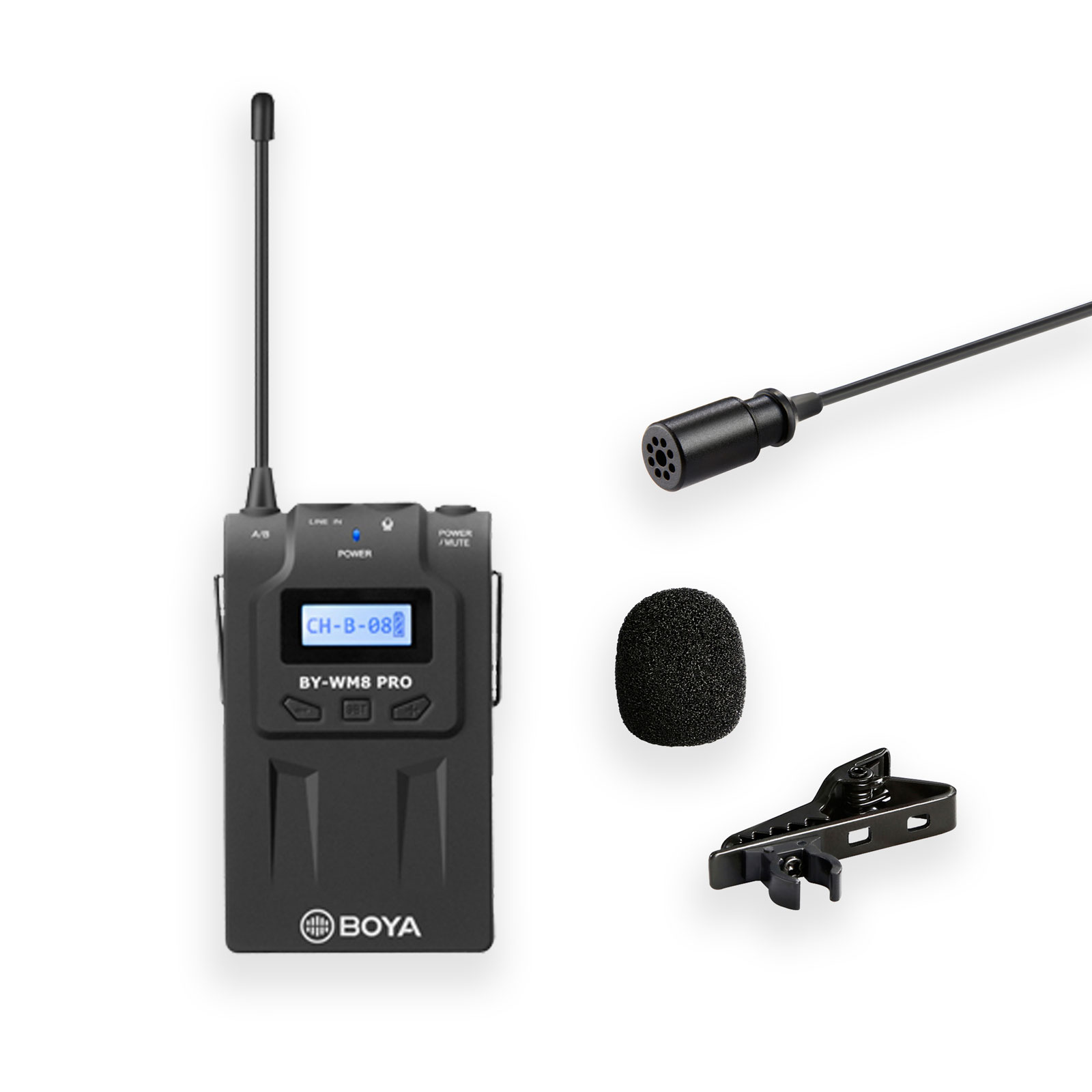

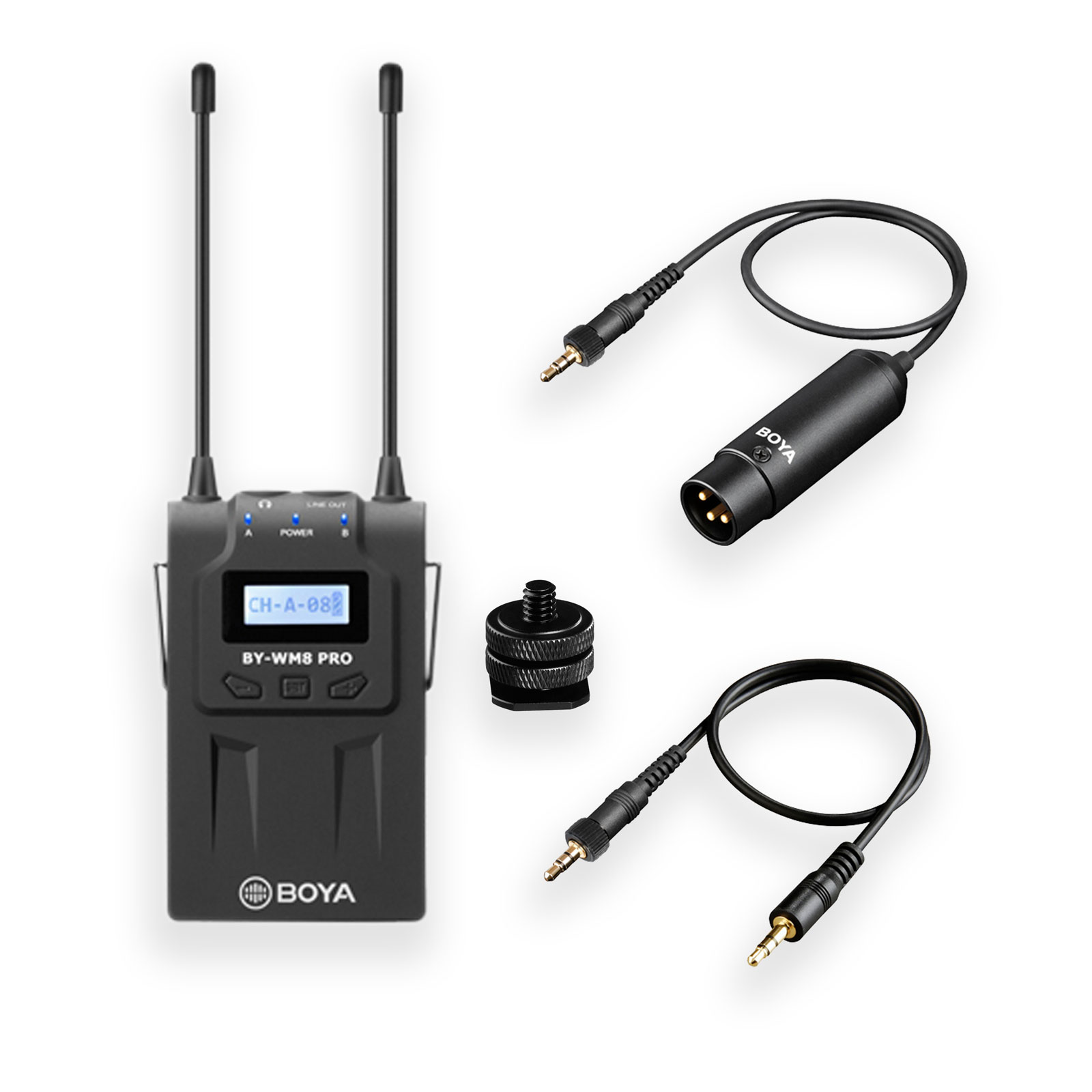

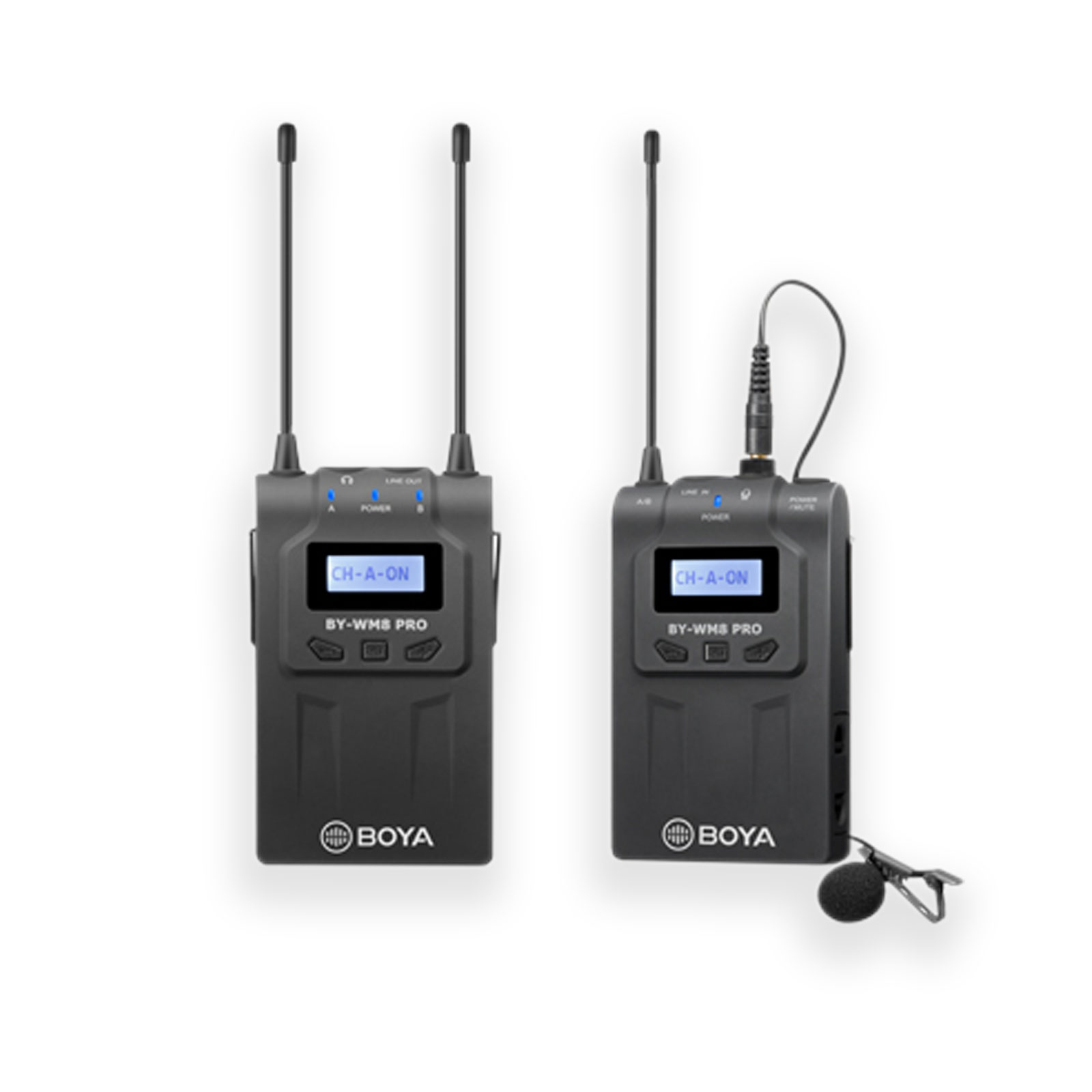

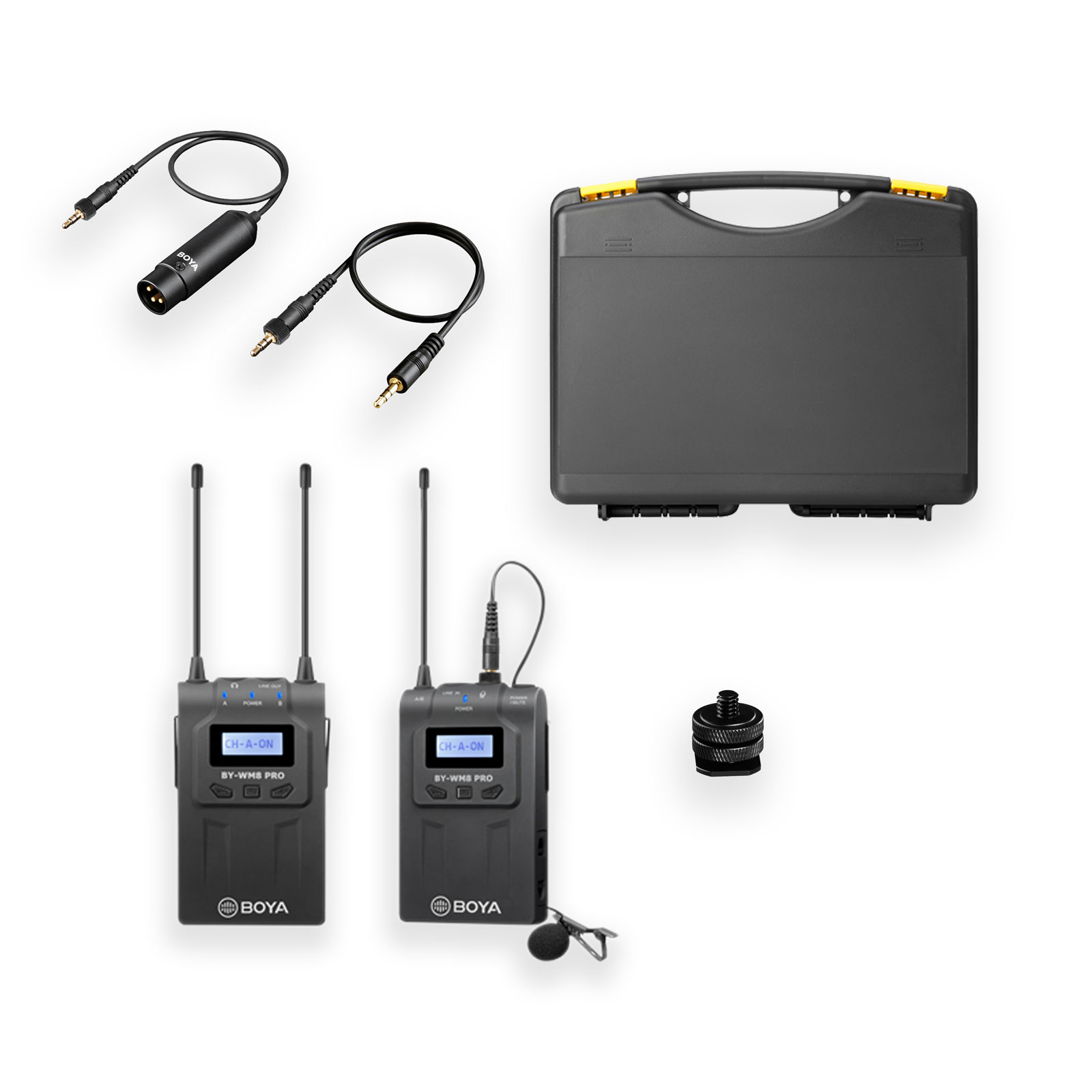

The BY-WM8 Pro-K1 system consists of a bodypack transmitter, a camera-mount receiver, and an omnidirectional lavalier microphone. Also included with this system is a shoe-mount adapter, a single 1/8" to XLR output cable, a single 1/8 to 1/8" output cable and carrying case.



The camera-mountable receiver features a wide-switching RF bandwidth, an easy-to-read LCD display and a 3.5mm headphone jack for real-time monitoring. And the bodypack transmitter is equipped with a crystal-controlled PLL synthesizer, a muting function, a 1/8" mic input and a 1/8" line-in jack.


• Consists of One Transmitter and One Receiver
• Dual-Channel Wireless Receiver
• Digital Companding Circuitry

• Auto-Lock function avoids accidental changing of settings

• Monitoring of receiver via headphones directly
• One Mic input and one Line Input for transmitter
• UHF transmission with 48UHF channels
• Broadcast-Quality Sound
• Operation range can reach up to 100m
• Adjustable MONO and Stereo mode
• Powered by 2 x AA batteries for both transmitter and receiver

Technical :

• Oscillator type :  PLL Synthesized Control Oscillator
• Carrier Frequency Range :
  • 556.71 MHz-575.98 MHz (Transmitter: A )
  • 576.39 MHz-595.66MHz (Transmitter: B )
• Channels : 48
• Frequency response : 40 Hz to 18 kHz (+/-3dB)
• Operation range : 100m (without obstacle)
• Antenna : 1/4λ wire antenna
• Audio input connector : 3.5mm mini jack
• Signal to noise ratio : 70dB or more
• Distortion : 0.5% or less
• Headphone output level : 30mW (16Ω)
• Audio output level : -60dBV
• Power supply : Two AA size batteries
• Operation time : About 4 hours
• Dimensions :  208(H)  × 67(W) × 29(L)mm
• Weight : 90g without batteries
