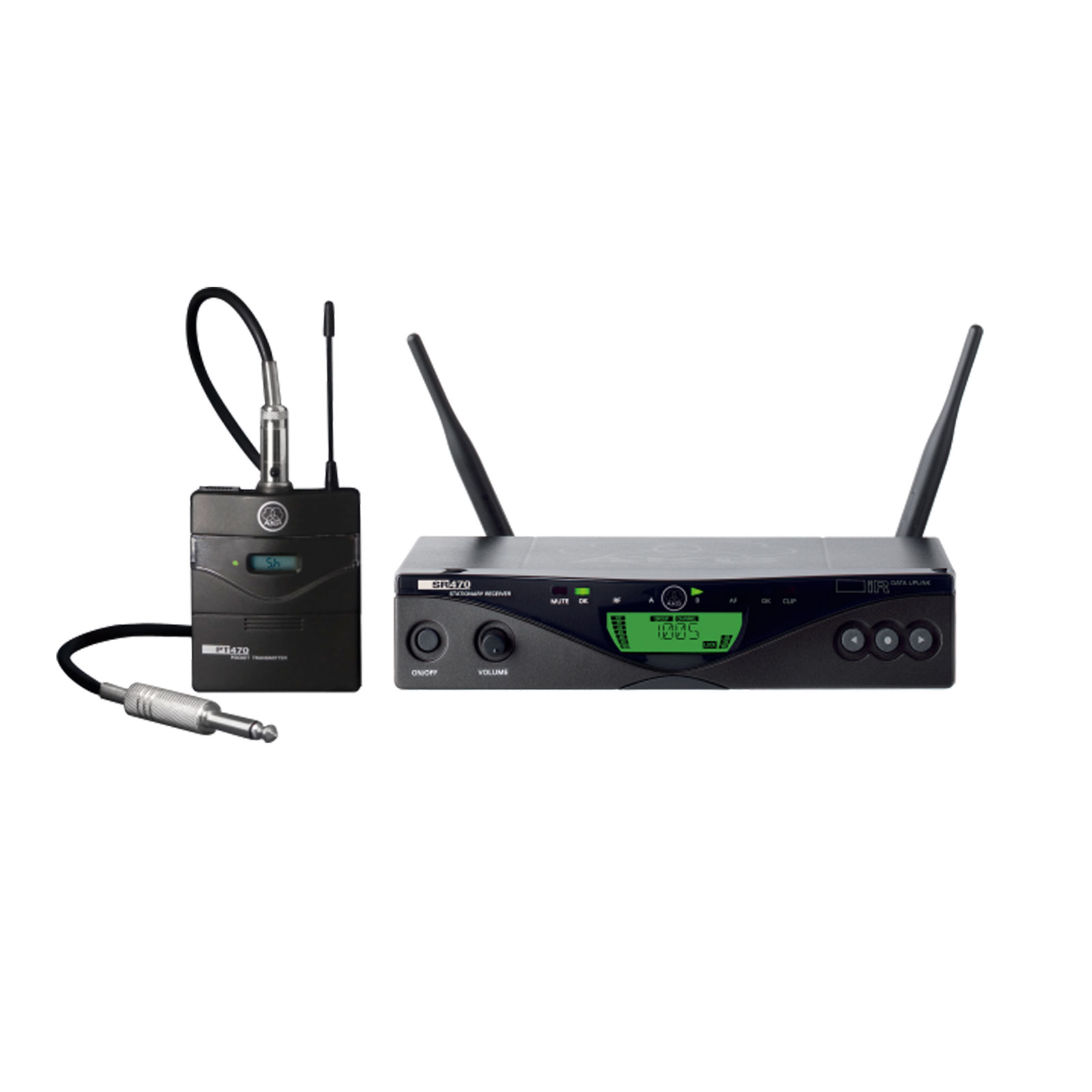

AKG WMS470PTG Professional Wireless System Instrumental Set

AKG WMS470 Instrumental-Set is a professional multichannel wireless microphone system with pilot tone transmission to prevent unwanted noise.

The Instrumental-Set includes a PT470 body-pack transmitter in a compact and rugged housing providing supreme audio quality for demanding guitars and e-basses.

The space diversity receiver offers both a microphone level and a line level output.

The WMS470 Instrumental-Set package includes :

• 1 x SR470 Receiver
• 1 x PT470 Body-pack transmitter

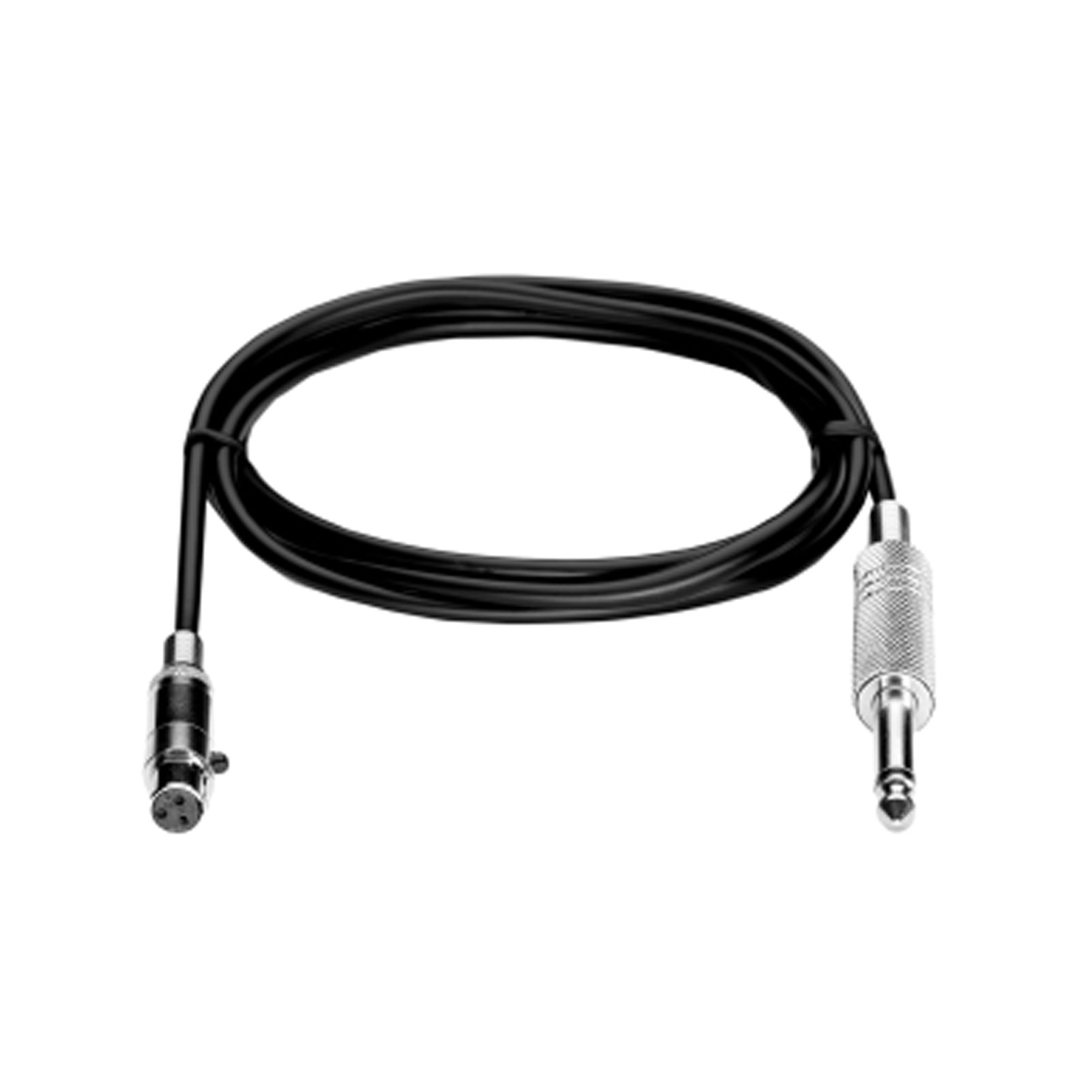

• 1 x MKG L Instrumental cable
• 1 x Rack mount kit
• 1 x Universal power supply
• 1 x AA size battery,
• 2 x Antennas
• 1 x Belt Clip

System Features :

• Automatic Frequency Setup
• Operating Frequency Set : 650.100 - 680.000 MHz
• Up to 16 Systems Simultaneously
• Infrared Transmitter Setup
• Pilot Tone Signal to Avoid Unwanted Noise
• Two Color Backlight Indicates Low Battery, Audio Peak and RF Low
• Noiseless ON/OFF Switch
• Audio Frequency Bandwidth : 35 to 20000 Hz
• Signal to Noise : 120 dB-A

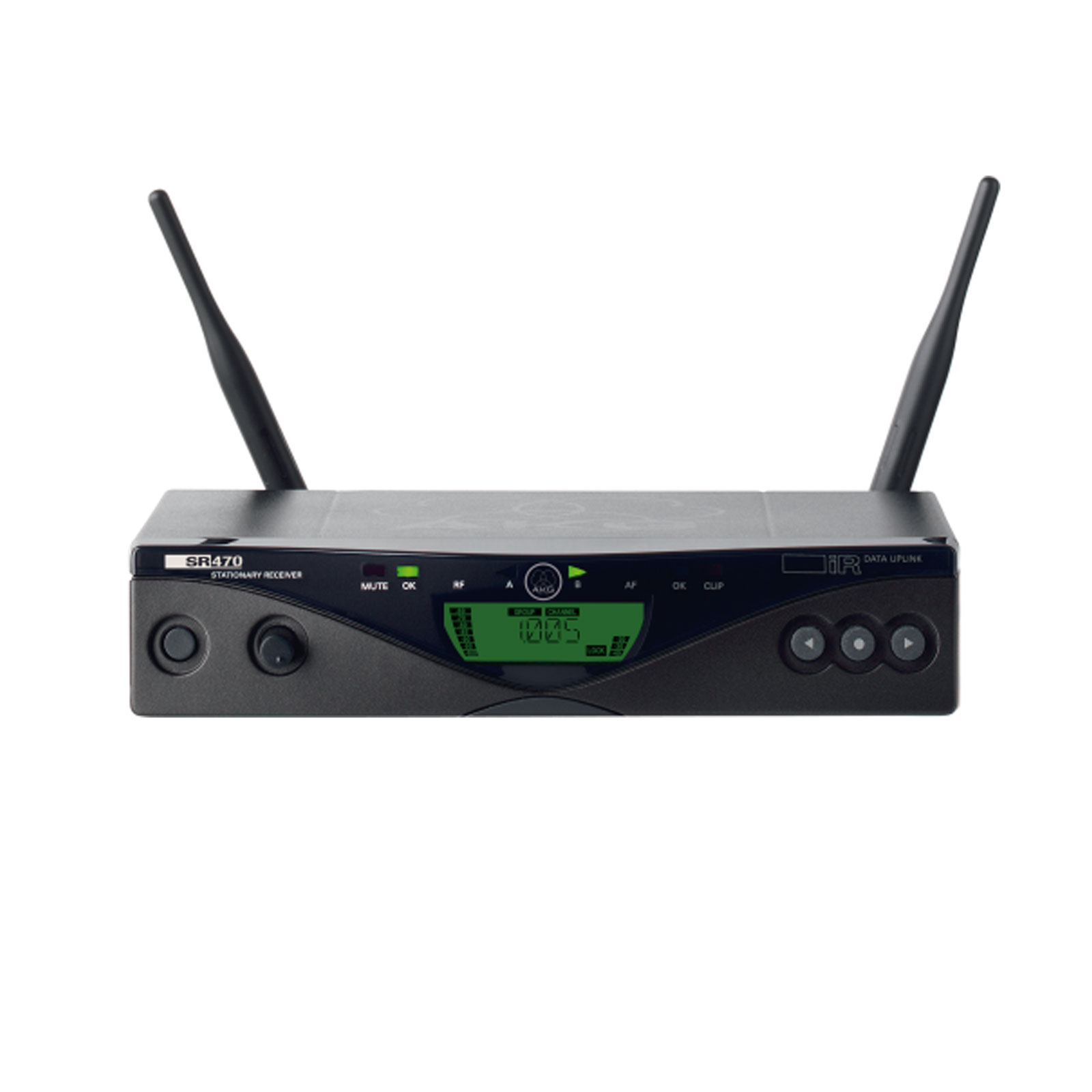

SR470 Receiver Specifications :

• Radio Sensitivity : -100 dBm
• Audio Outputs : Balanced XLR Male 3-pin and 6.3mm Jack
• Body Design : Half 19-inch Black Metal Housing
• Dimensions : Length 44mm, Height 202mm, Width 177mm

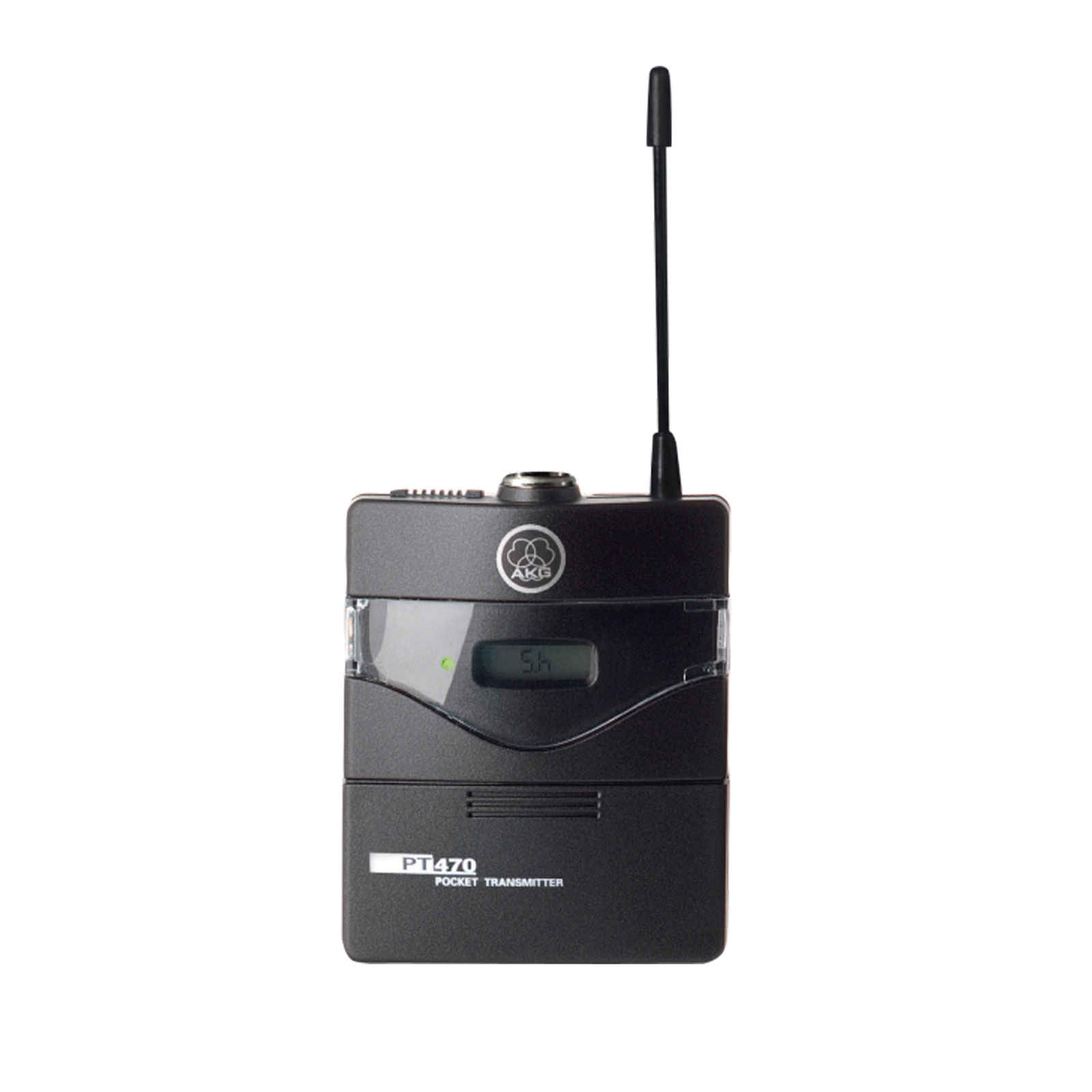

PT470 Transmitter Specifications :

• Radio Output Power (min/max) : 10 to 50 mW
• Input Type : Mini XLR Female 3-pin
• Maximum Audio Level : 12 dB
• Battery : 1 x AA (Up to 7 Hours Operation on Single Alkaline Battery)
• Body Design : Black Plastic Finish
• Dimensions : Length 30mm, Height 73.5mm, Width 60mm
