AKG PW45PTHA Wireless Microphone System with Beltpack & C544L Headworn Microphone
The Perception Wireless Sports system with its comfortable C 544 L and ultralightweight PT 45 bodypack transmitter ensures maximum user mobility for all handsfree applications.
The C 544 L headworn microphone comes with four moisture shields protecting the transducer from perspiration while you practice your favorite sport.

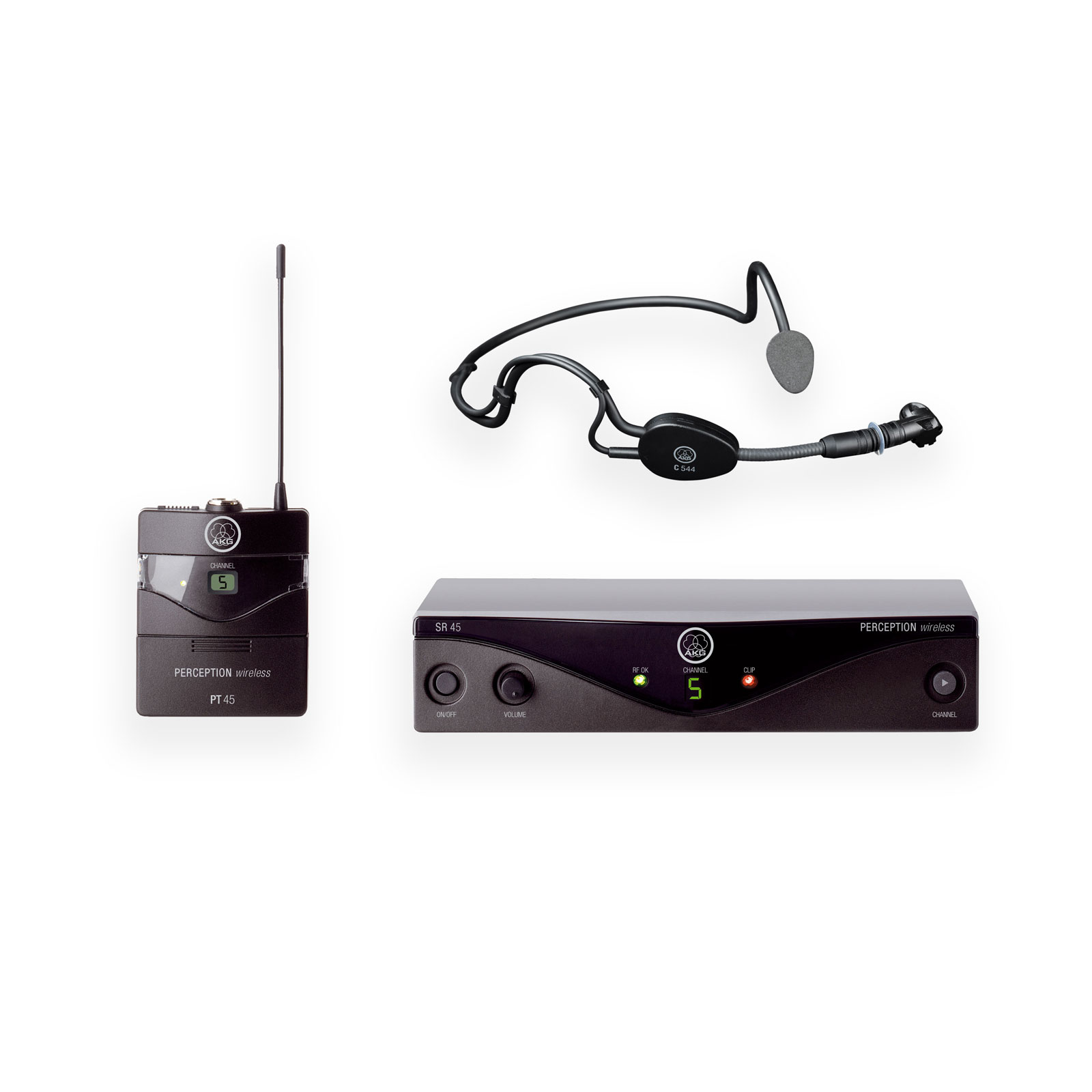

The system comprises an SR 45 receiver, PT 45 bodypack transmitter, universal power supply, C 544 L headworn microphone, and one AA size dry battery.
Features :
- 8 selectable channels
- 8 hours of operation with a single aa size battery
- Rugged, “one-size-fits-all” C 544 L headworn microphone
- Compatible with all AKG MicroMics
- Low battery indicator
- Smallest and lightest bodypack transmitter in its class

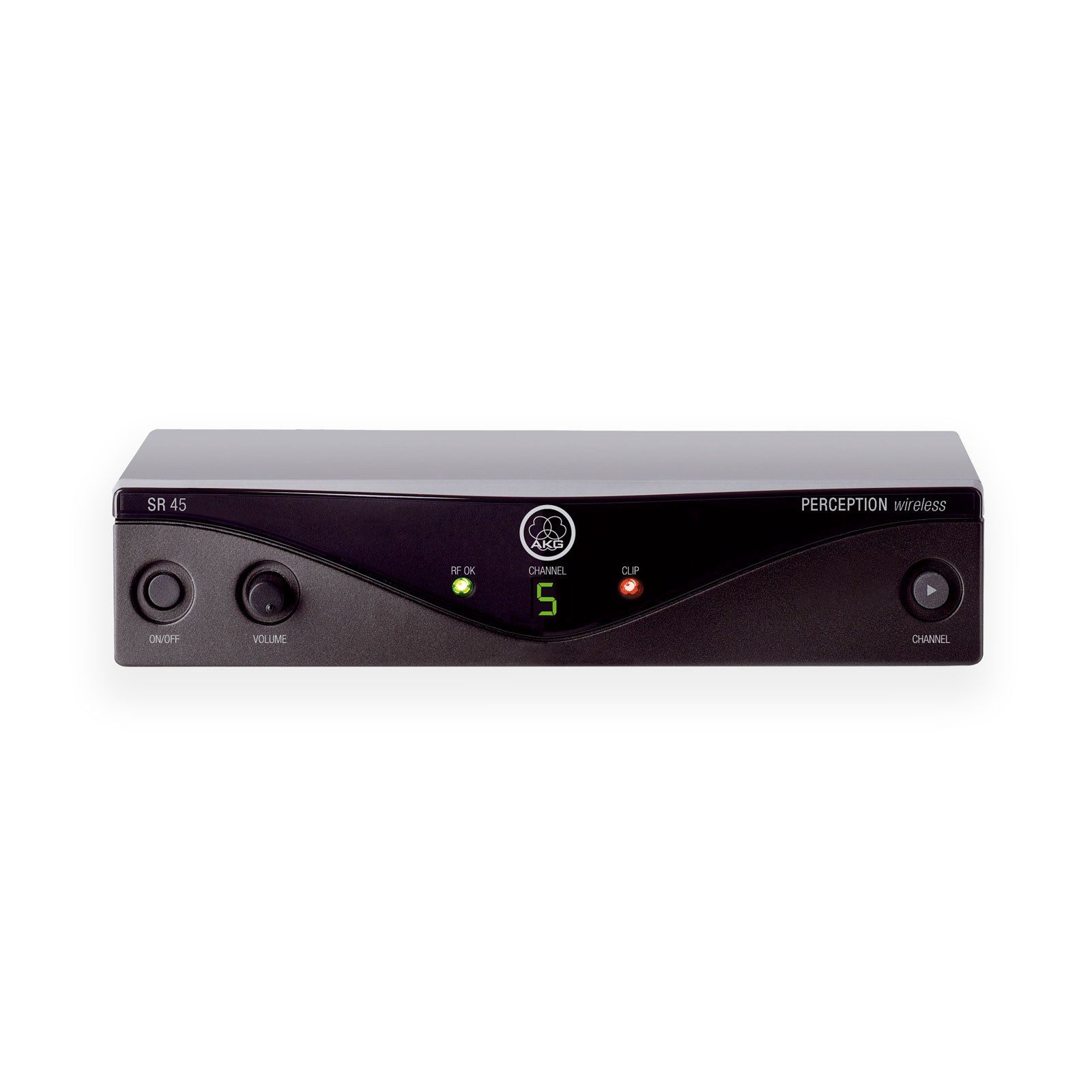

Receiver Specifications :
- Carrier frequency range : 530 - 559 MHz
- Audio bandwidth : 40 - 20,000 Hz
- THD : typ. 0,8 % (at 1 kHz)
- Signal/noise ratio : typ. 105 dB(A)
- Modulation : FM
- Audio outputs : Balanced XLR and unbalanced 1/4" (6.3 mm) jack: adjustable from mic to line level. Output level at rated deviation: 500 mV rms
- Squelch threshold : -100 to -70 dBm adjustable
- Dimensions : Width: 200 mm; height: 44 mm; depth: 150 mm
- Net weight : 360 g

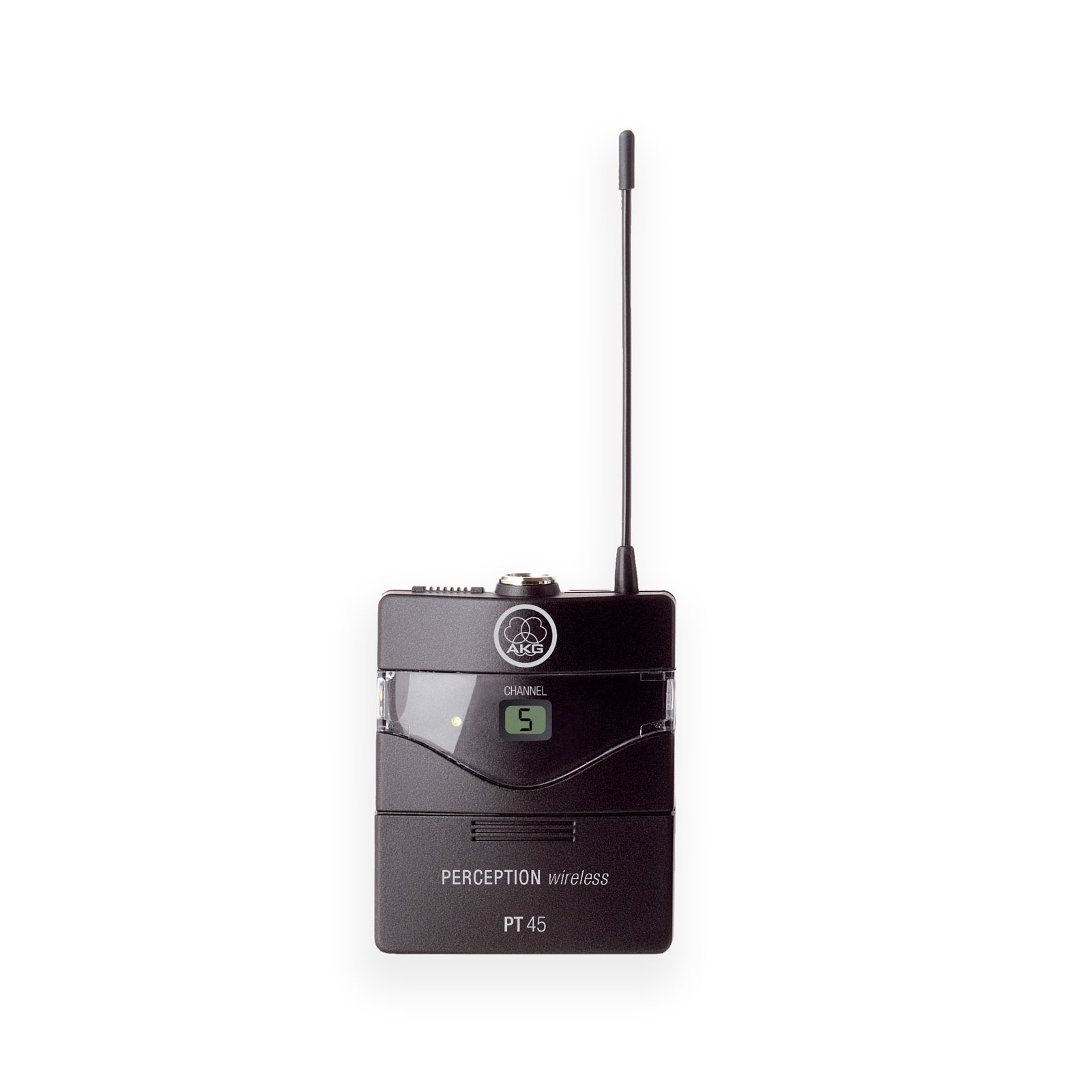

Body-Pack Transmitter Specifications :
- Carrier frequency range : 530 - 559 MHz
- Audio bandwidth : 40 - 20,000 Hz
- THD : typ. 0,8 % (at 1 kHz)
- Signal/noise ratio : typ. 105 dB(A)
- Modulation : FM
- RF radiation : 10 mW
- Power supply : 1x 1.5 V AA size battery
- Battery life : 10 hours typ.
- Dimensions : width: 60 mm; height: 74 mm; depth: 30 mm
- Net weight : 60 g

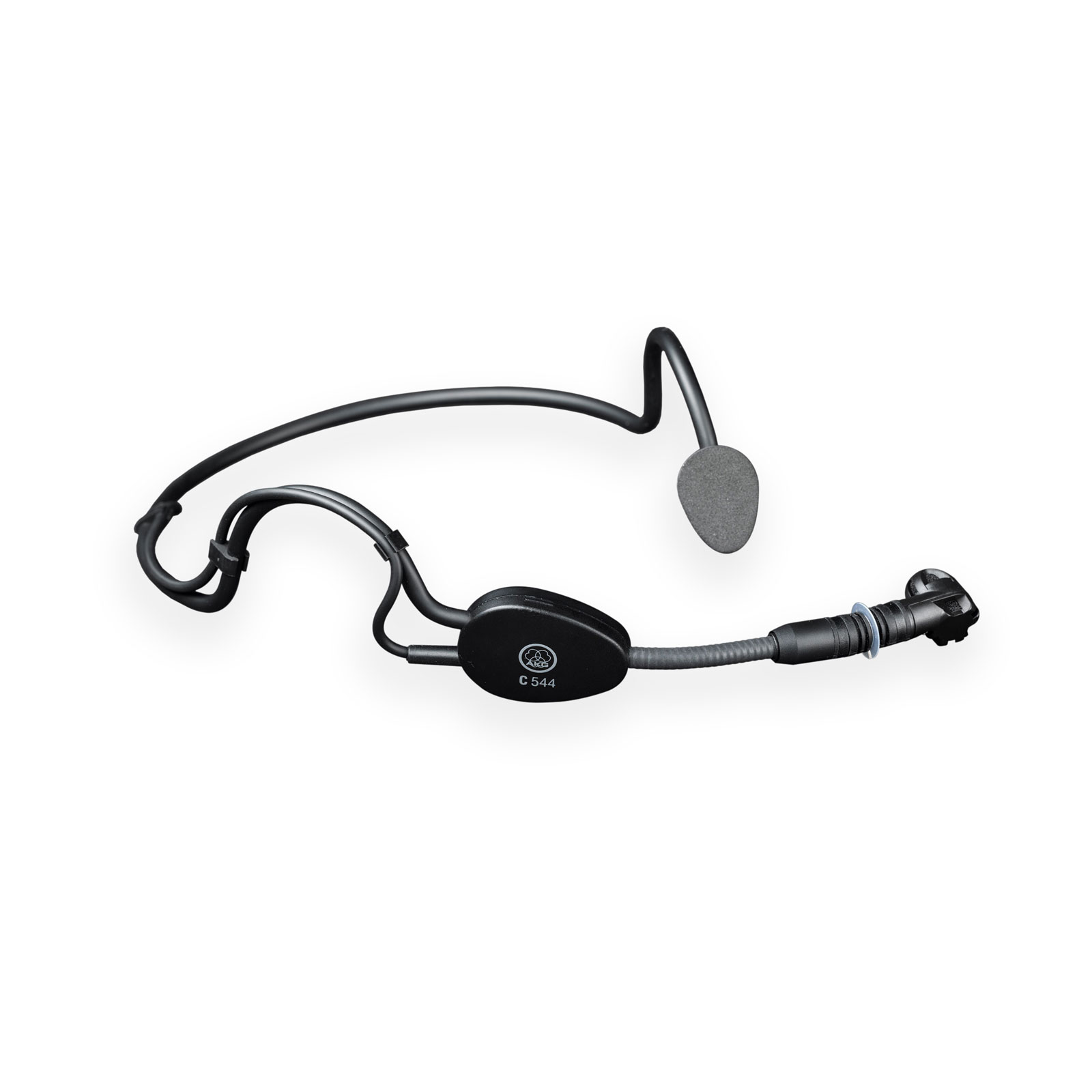

C544L Headworn Microphone Specifications :
- Type : Pre-polarized condenser microphone
- Polar pattern : cardioid
- Frequency range : 20 Hz to 20,000 Hz
- Sensitivity : 40 mV/Pa (-28 dBV re 1 V/Pa)
- Max. SPL : 126 dB / 130 dB (for 1%/3% THD)
- Equivalent noise level (IEC 60268-4) : 22 dB-A
- Impedance : 200 ohms, electronically balanced
- Recommended load impedance : >2000 ohms
- Cable : 1.5 m
- Finish : matte black
- Net weight : 30 g
(AKG-PW45PTHA)
SKU | AKG-PW45PTHA |
Barcode # | 885038027874 |
Brand | AKG |
Shipping Weight | 2.0000kg |
Shipping Width | 0.340m |
Shipping Height | 0.080m |
Shipping Length | 0.440m |
Shipping Cubic | 0.011968000m3 |
