AKG Mini Beltpack Wireless Instrument System US25-A 537.500 MHz

fixed single frequency 537.500MHz

$315.00
Only 1 Left!

HDAP (High Definition Audio Performance)

30 hours off a single AA battery

Single fixed frequency

Plug & Play

1 fixed frequency, 537.500 MHz (freq. set 25-A)

Calculate Shipping



1 x AKG Mini Beltpack Wireless Instrument System US25-A 537.500 MHz delivered to , AU


FREE Shipping - $0.00
Free Standard Delivery in Australia

WMS 40 Mini instrumental system provides brilliant sound and ease of use at an unbeatable price/performance ratio. Unique HDAP (High Definition Audio Performance) technology ensures the best possible, most realistic sound at any time.

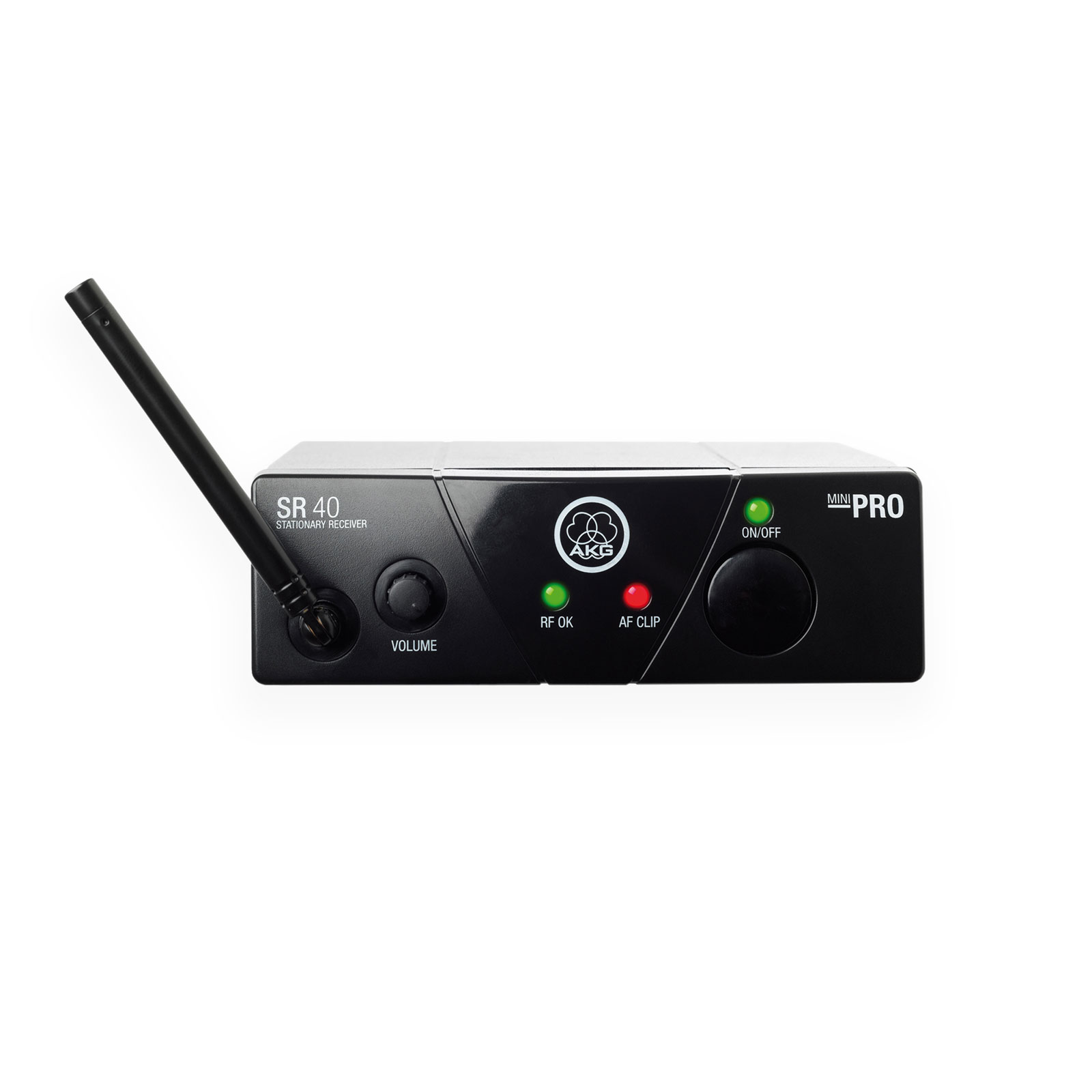

The SR 40 Mini receiver provides three status LEDs indicating ON/OFF status, received signal strength (RF OK), and audio clipping (AF CLIP). The VOLUME control sets the level at the 1/4 " output jack. The supplied switched mode power supply operates on any AC voltage from 110 to 240 VAC.

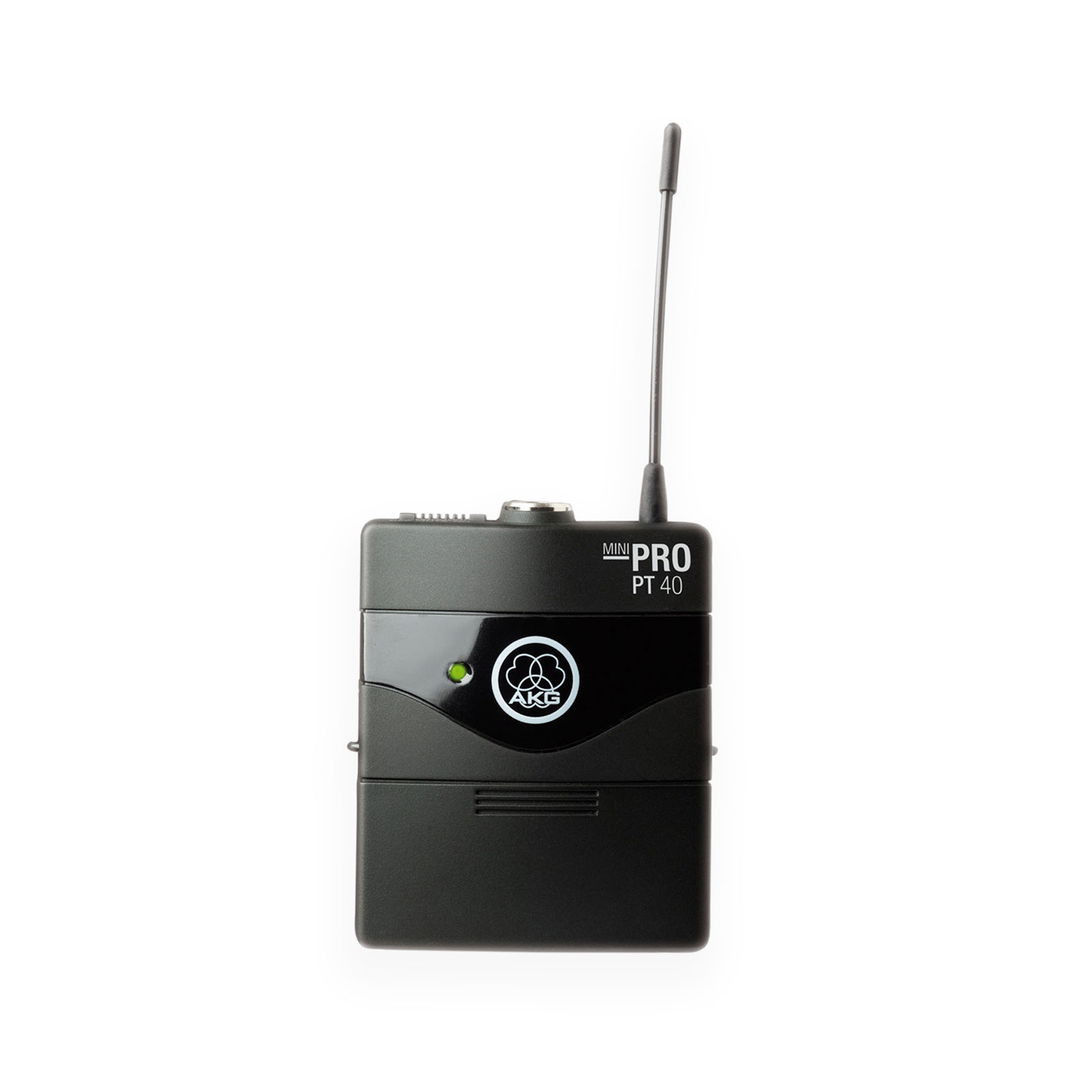

The PT 40 Mini bodypack is probably the smallest and lightest transmitter in its class. A reliable mini XLR output allows you to connect every compatible AKG miniature microphone. A single AA size battery will do to power both the transmitter and a condenser microphone connected to it.

Battery life for each WMS 40 Mini transmitter is the same legendary "30 hours off a single AA battery" as for the WMS 40 models, reducing the need to replace batteries and thus saving real money in the long run.

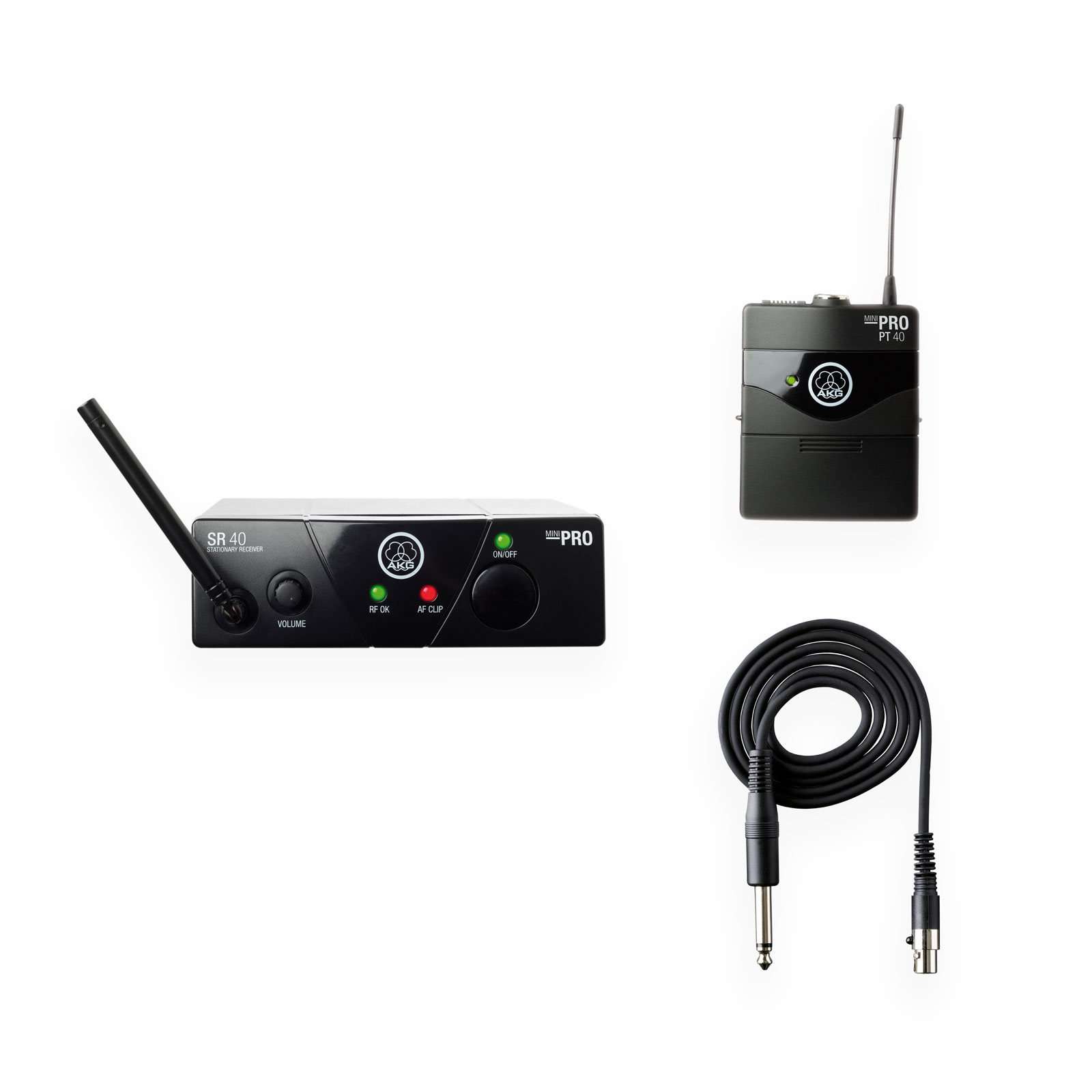

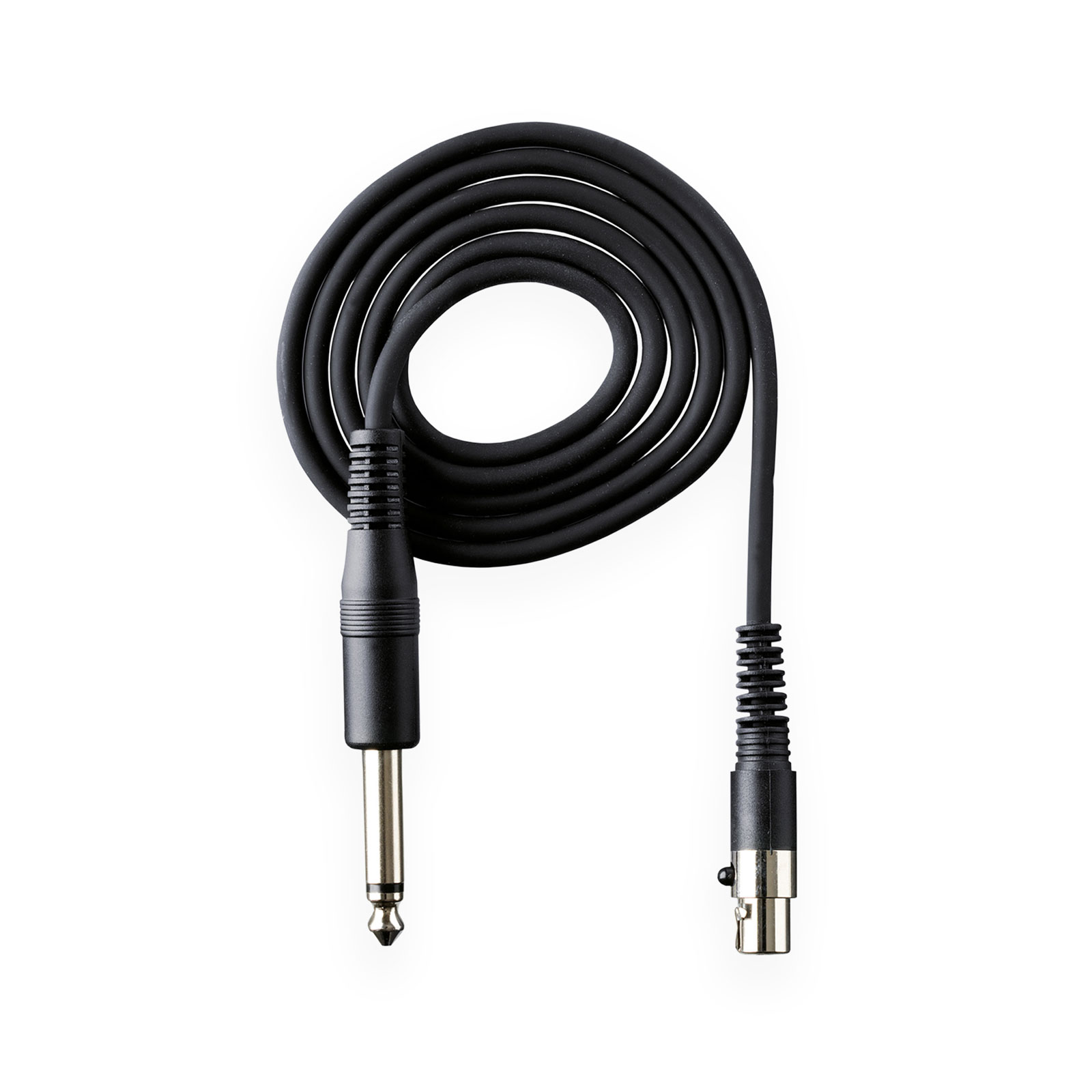

System includes : 1 x SR40 receiver, 1 x PT40 transmitter, 1 x 900mm instrument cable.

Features :

  • HDAP (High Definition Audio Performance)
  • 30 hours off a single AA battery
  • Single fixed frequency
  • Plug & Play

SR40 Receiver Specifications :

  • Carrier frequency : 1 fixed frequency, 537.500 MHz (freq. set 25-A)
  • Audio bandwidth : 40 HZ to kHz
  • THD : typ. 0,8 % (at 1 kHz)
  • Signal/noise ratio : typ. 110 dB(A)
  • Audio outputs : bal. 1/4" jack, output level adjustable, at rated deviation: 500 mV rms.
  • Power supply : 110/240 VAC
  • Dimensions : 133 x 43 x 132 mm
  • Net weight : 581 g (1.3 lbs.)

PT40 Transmitter Specifications :

  • Carrier frequency : 1 fixed frequency, 537.500 MHz (freq. set 25-A)
  • Audio bandwidth : 40 HZ to kHz
  • THD : typ. 0,8 % (at 1 kHz)
  • Signal/noise ratio : typ. 110 dB(A)
  • RF output power : typ. 10 mW (ERP)
  • Battery life : typ. 30 h (for 2200 mAh) with 1 AA size battery
  • Dimensions : 60 x 75.5 x 30 mm
  • Net weight : 60 g

(AKG-W40INS-25A)

SKU AKG-W40INS-25A
Barcode # 885038038931
Brand AKG
Shipping Weight 2.0000kg
Shipping Width 0.240m
Shipping Height 0.080m
Shipping Length 0.300m
Shipping Cubic 0.005760000m3
